Pramet 300A06R-IS45OD05-C 7546851 Shell Milling Cutter - Face
MODEL 7546851
$652.92 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes

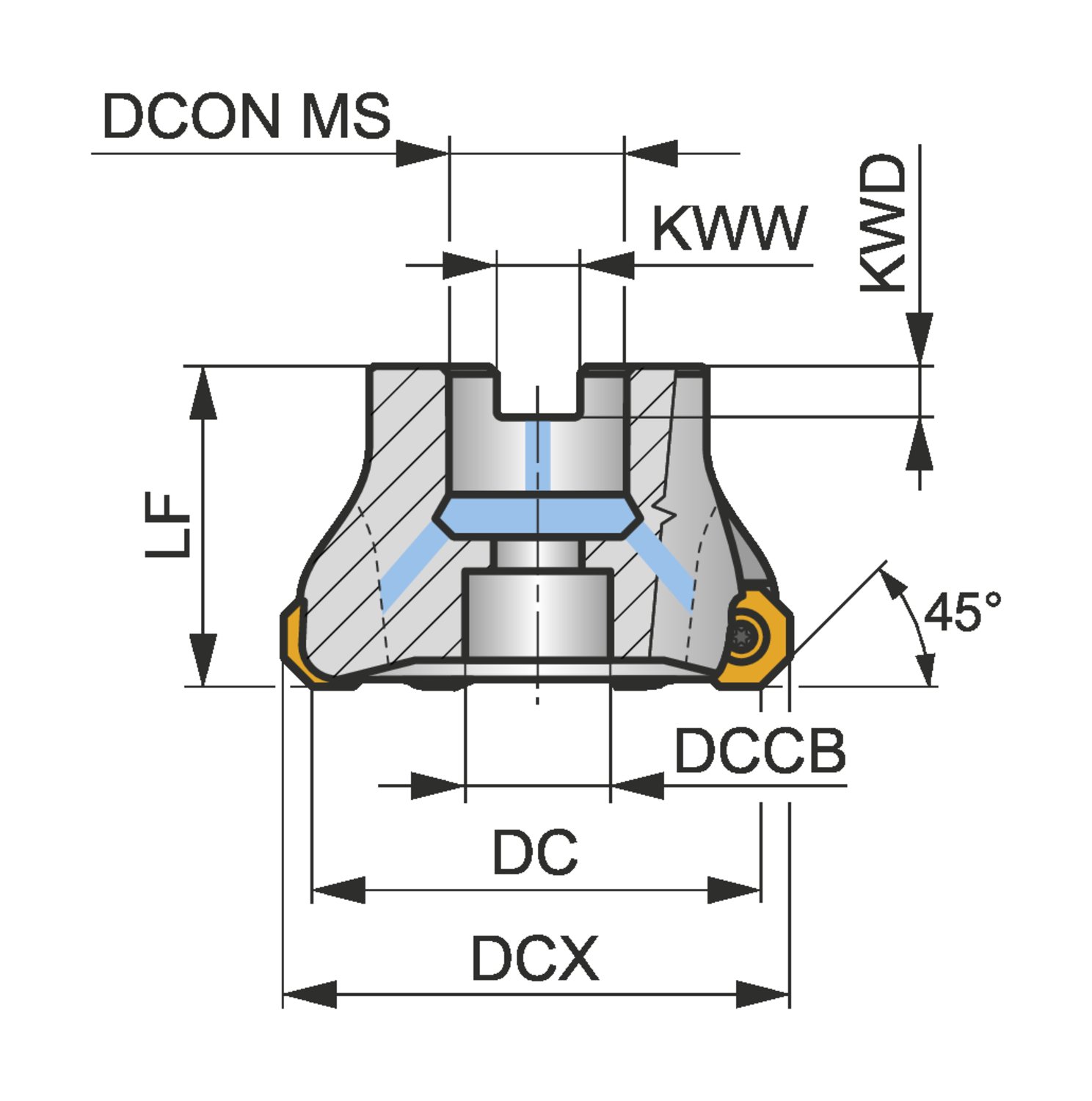

Axial rake angle (GAMP)
-7
Clamping Type Code (MTP)
Screw clamping through hole
Connection diameter - inch (DCON MS)
1
Connection diameter - millimeter (DCON MS)
25.4
Coolant supply property (CSP)
1
Counterbore diameter connection bore - inch (DCCB)
0.827
Counterbore diameter connection bore - millimeter (DCCB)
21
Cutting diameter - inch (DC)
2.709
Cutting diameter - millimeter (DC)
68.8
Cutting diameter maximum - inch (DCX)
3
Cutting diameter maximum - millimeter (DCX)
76.2
Cutting pitch differential (CPDF)
1
Functional length - inch (LF)
1.969
Hand (Cutting direction)
Right
Keyway depth - inch (KWD)
0.224
Keyway width - inch (KWW)
0.382
Peripheral effective cutting edge count (ZEFP)
6
Radial rake angle (GAMF)
8
Rotational speed maximum (RPMX)
11100
Shank
Shell mill DIN 8030 A
Tool cutting edge angle (KAPR)
45
Copy face mill with positve/negative geometry which utilises 6 off OD.T 05IM, RD.T 12IM or SD.T 12IM single-sided inserts, cutting diameter 2.709 to maximum 3.000'' with 45 / 90° approach angle and 1.000'' connection bore according to DIN 8030-A, 1.969'' protrusion length, through coolant and differential pitch for face milling, copy milling, shallow shoulder milling, shallow slot milling, ramping, helical milling, plunge milling, progressive plunge milling and chamfering with a maximum depth of cut of .118 (.236/.394)''
