Pramet 300F04N-IS90SN12N4 6789673 Disc Milling Cutter - Slotting
MODEL 6789673
$951.11 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes

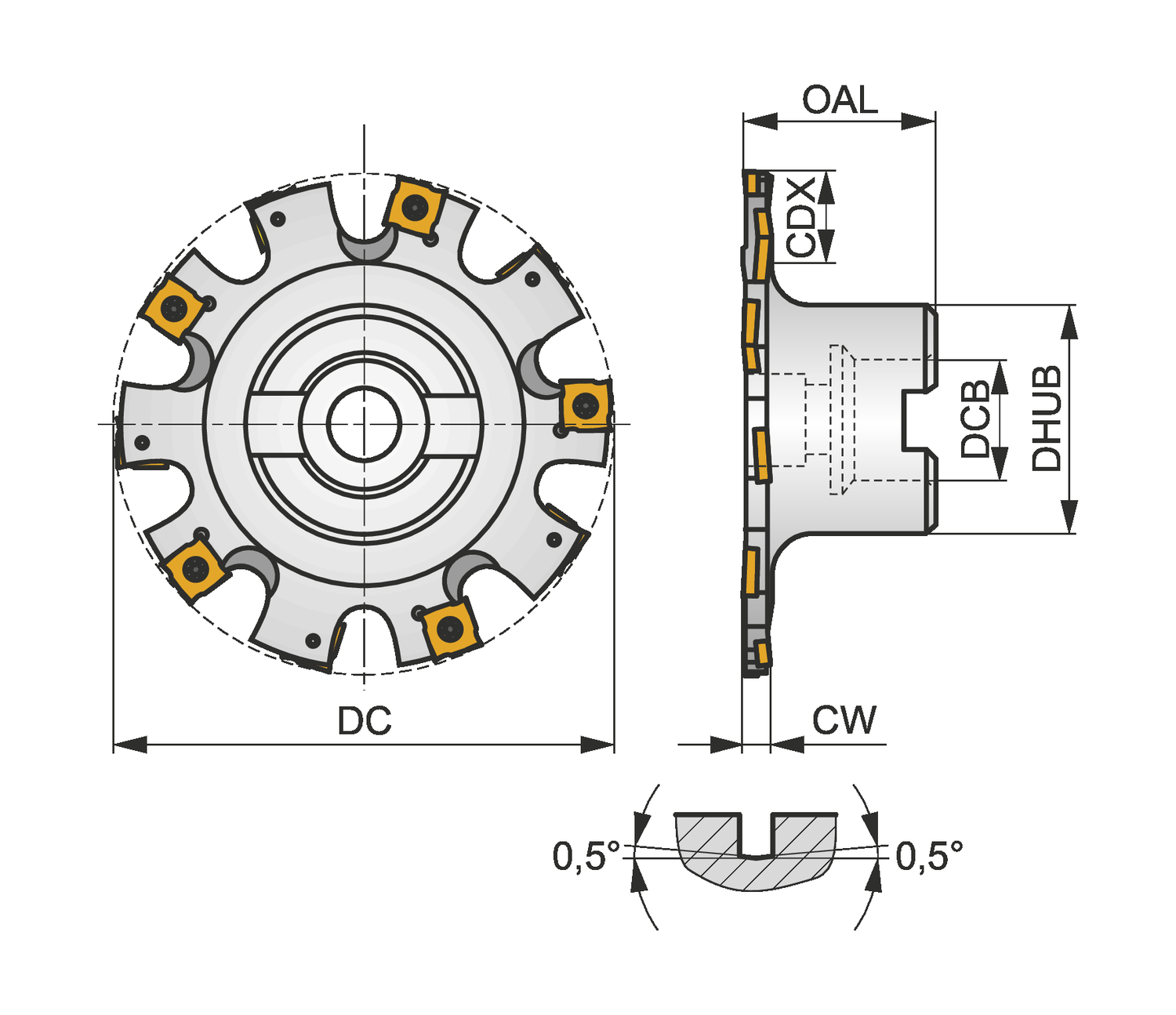

Axial rake angle (GAMP)
-0.5
Clamping Type Code (MTP)
Screw clamping through hole
Connection (shank) description
Arbor DIN 8030 - disc mill
Cutting depth maximum - inch (CDX)
0.63
Cutting diameter - inch (DC)
3
Cutting width - inch (CW)
0.25
Hand (Cutting direction)
Neutral
Hub diameter - inch (DHUB)
1.48
Peripheral effective cutting edge count (ZEFP)
8
Possible use
Medium machining
Radial rake angle (GAMF)
2.5
Shank
Shell mill DIN 8030 – disc mill
Disc mill with double negative geometry which utilises 4 off SNHQ 1102.. double-sided inserts, cutting diameter 3.000'' with 90° approach angle and 1.000'' connection bore according to DIN 8030, for deep slot milling with a width of cut of .250''
