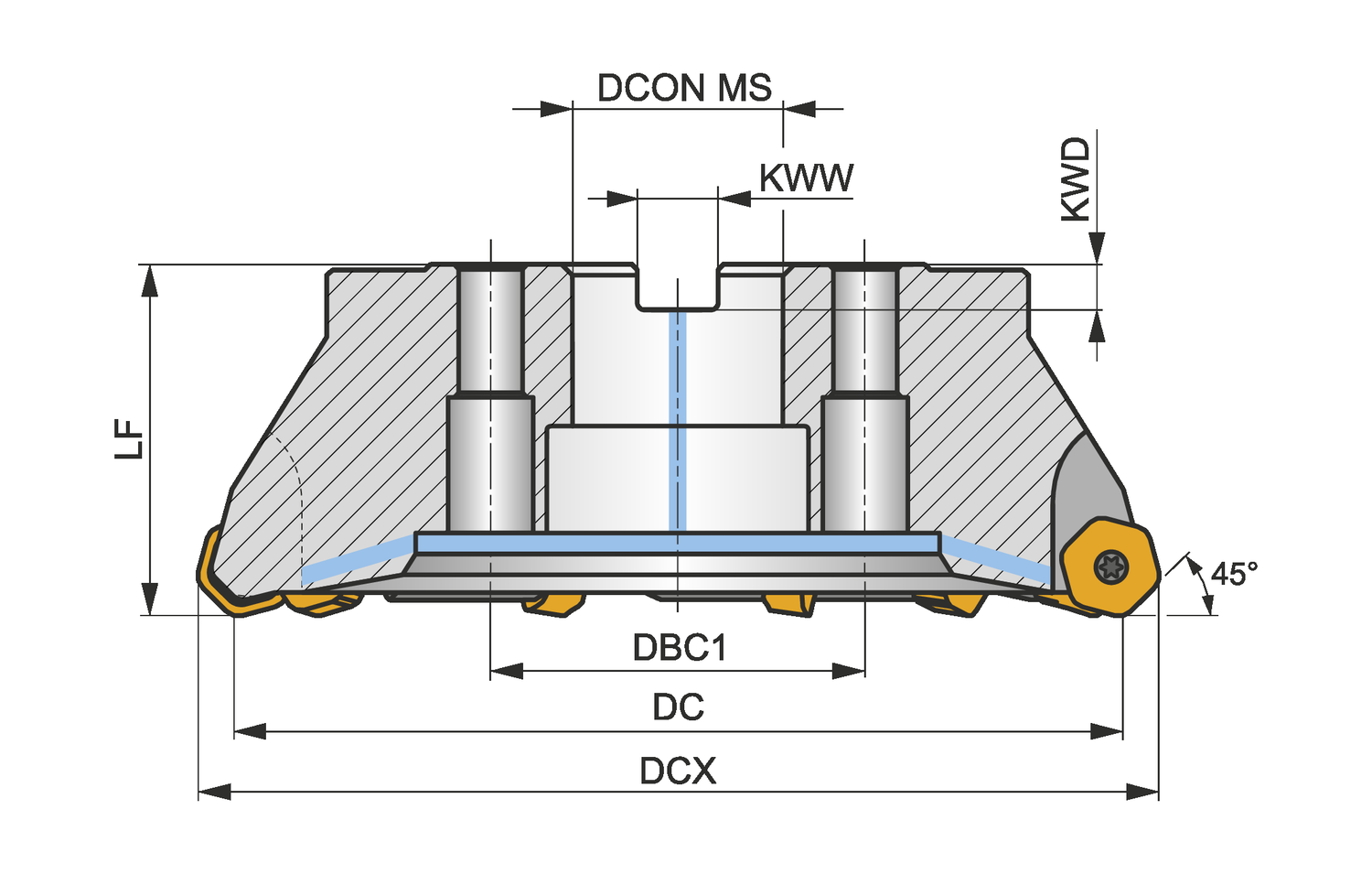

Pramet 315C16R-S45HN09C-CF shell milling cutter, face — 12.402 in (315 mm) cutting diameter, 16 inserts, 45° approach angle, 60 mm connection bore, 80 mm functional length, through coolant, differential pitch. Article 7155956.

Axial rake angle (GAMP)

-7

Clamping Type Code (MTP)

Screw clamping through hole

Connection diameter - inch (DCON MS)

2.362

Connection diameter - millimeter (DCON MS)

60

Coolant supply property (CSP)

1

Cutting diameter - inch (DC)

12.402

Cutting diameter - millimeter (DC)

315

Cutting diameter maximum - inch (DCX)

12.862

Cutting diameter maximum - millimeter (DCX)

326.7

Cutting pitch differential (CPDF)

1

Functional length - millimeter (LF)

80

Hand (Cutting direction)

Right

Insert index count (NOI)

16

Keyway depth - millimeter (KWD)

14

Keyway width - millimeter (KWW)

25.7

Peripheral effective cutting edge count (ZEFP)

16

Radial rake angle (GAMF)

-7

Rotational speed maximum (RPMX)

3100

Shank

Shell mill DIN 8030 C

Tool cutting edge angle (KAPR)

45
