Image for Illustration purposes only. Actual product may vary
Pramet 315J12N-S90CN10N18 6760149 Disc Milling Cutter - Slotting
MODEL 6760149
$4,398.73 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes

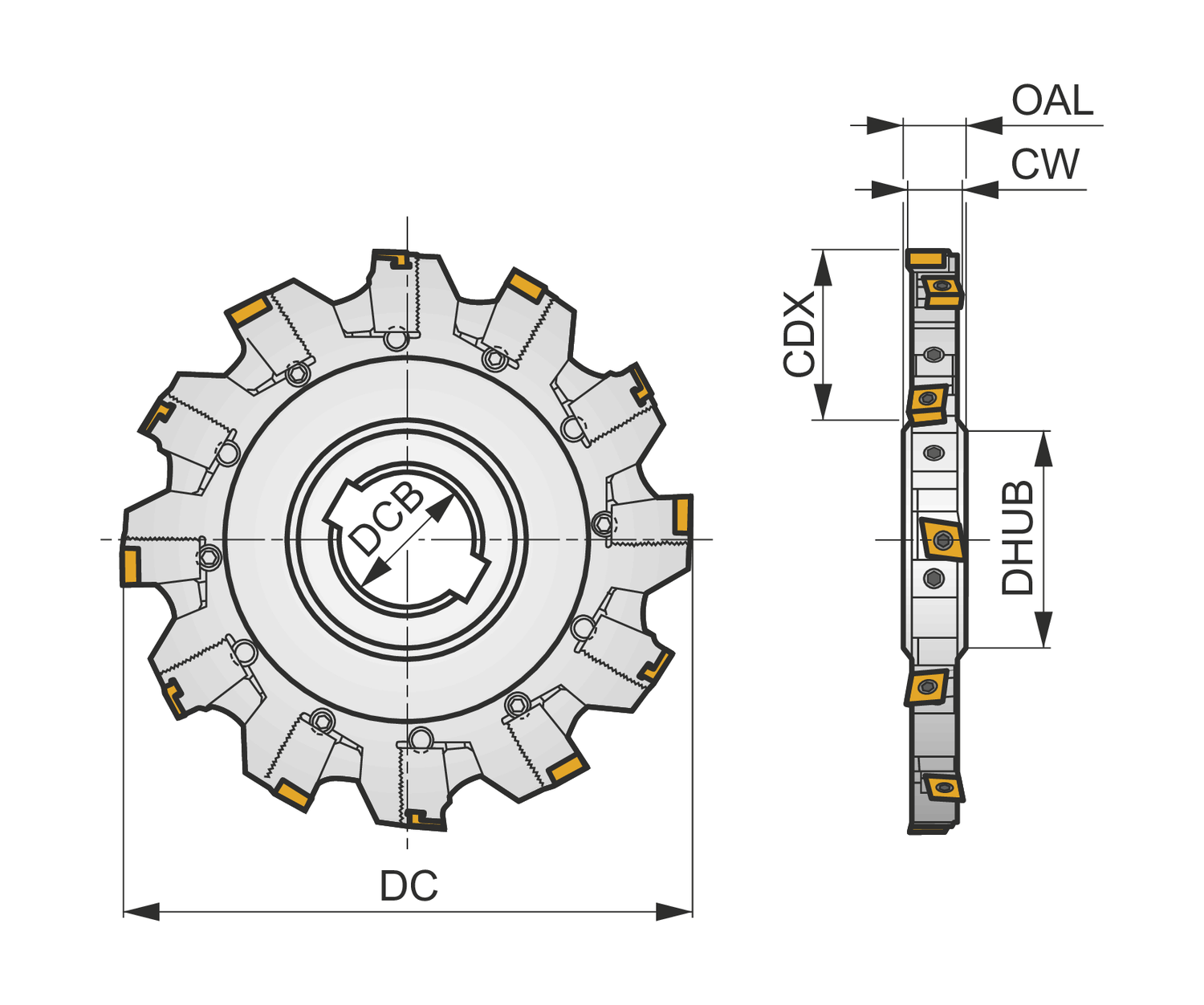

Axial rake angle (GAMP)
4
Clamping Type Code (MTP)
Screw clamping through hole
Connection (shank) description
Arbor DIN 8030 - disc mill
Connection bore diameter - millimeter (DCB)
50
Cutting depth maximum - millimeter (CDX)
110
Cutting diameter - inch (DC)
12.402
Cutting diameter - millimeter (DC)
315
Face effective cutting edge count (ZEFF)
12
Hand (Cutting direction)
Neutral
Hub diameter - millimeter (DHUB)
71
Insert group used in the tool
CNHQ 1005
Insert index count (NOI)
24
Number of peripheral edges in the tool (ZNP)
24
Overall length - inch (OAL)
0.709
Overall length - millimeter (OAL)
18
Peripheral effective cutting edge count (ZEFP)
24
Possible use
Finishing
Radial rake angle (GAMF)
-8
Rotational speed maximum (RPMX)
4900
Shank
Shell mill DIN 8030 – disc mill
Disc mill with positve/negative geometry which utilises 24 off CNHQ 1005.. double-sided inserts, cutting diameter 315mm with 90° approach angle and 50mm connection bore according to DIN 8030, for deep slot milling with a width of cut of 14, 0 ÷ 18, 5mm
