Pramet 32A2R043M16-STN16-C 8021058 Modular Head for Square Shoulder Milling
MODEL 8021058
$375.30 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes

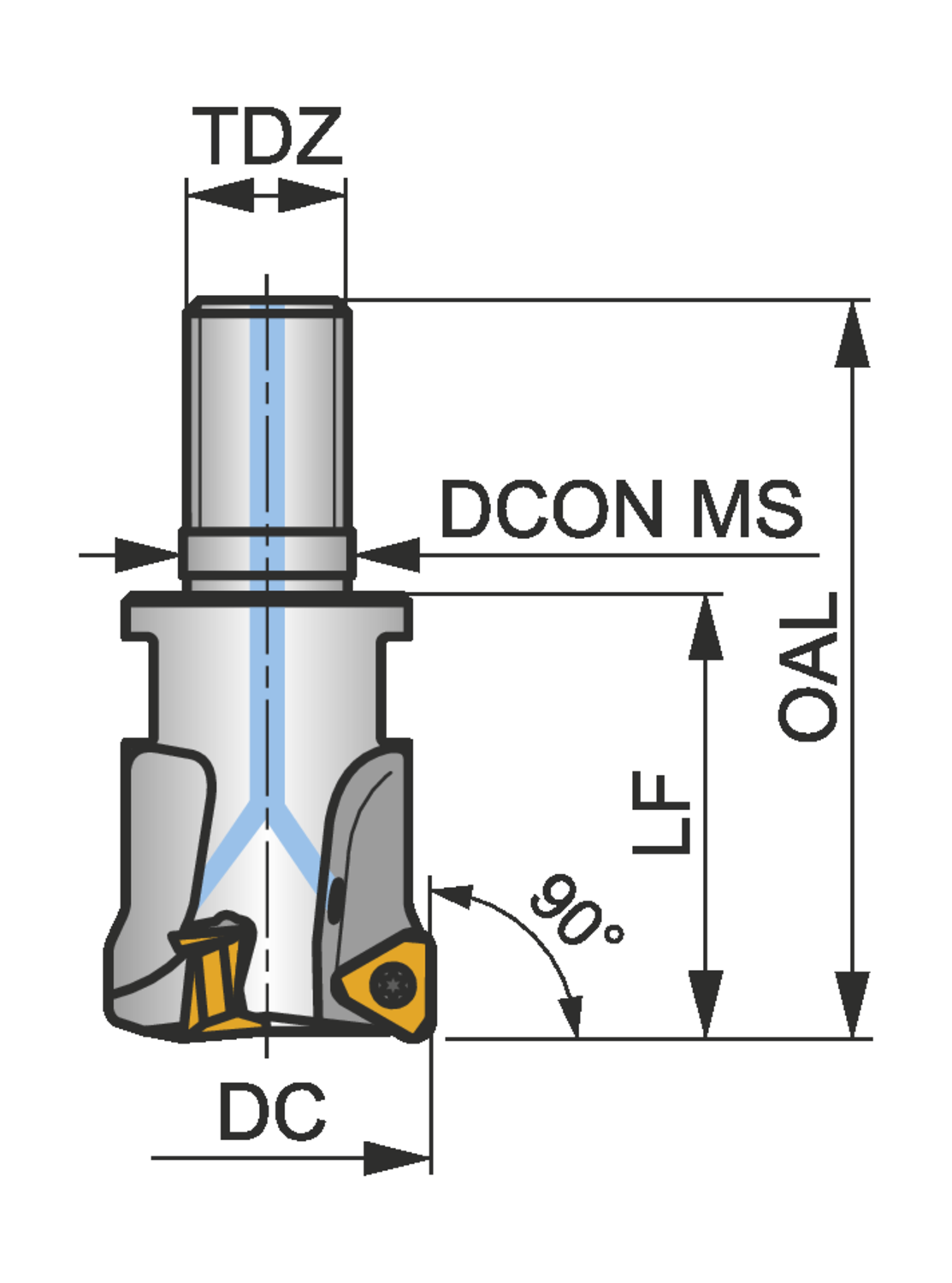

Axial rake angle (GAMP)
-9.5
Clamping Type Code (MTP)
Screw clamping through hole
Connection diameter - inch (DCON MS)
0.669
Connection diameter - millimeter (DCON MS)
17
Coolant supply property (CSP)
1
Cutting diameter - inch (DC)
1.26
Cutting diameter - millimeter (DC)
32
Cutting pitch differential (CPDF)
0
Functional length - millimeter (LF)
43
Hand (Cutting direction)
Right
Insert index count (NOI)
2
Overall length - inch (OAL)
2.598
Overall length - millimeter (OAL)
66
Peripheral effective cutting edge count (ZEFP)
2
Radial rake angle (GAMF)
-16
Rotational speed maximum (RPMX)
17500
Shank
Threaded coupling
Thread diameter size (TDZ)
M16
Usable Length - millimeter (LU)
43
Shoulder face mill with double negative geometry which utilises 2 of TNGX 1606.. double-sided inserts, cutting diameter 32mm with 90° approach angle and M16 threaded shank for standard modular tool-holders, 43mm usable and 66mm protrusion length, through coolant for face milling, shallow shoulder milling, shallow slot milling and helical milling in pre-machined holes
