Pramet 32A2R045A25-SVC22C 6757989 End Milling Cutter - Copy and Profile
MODEL 6757989
$472.98 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes

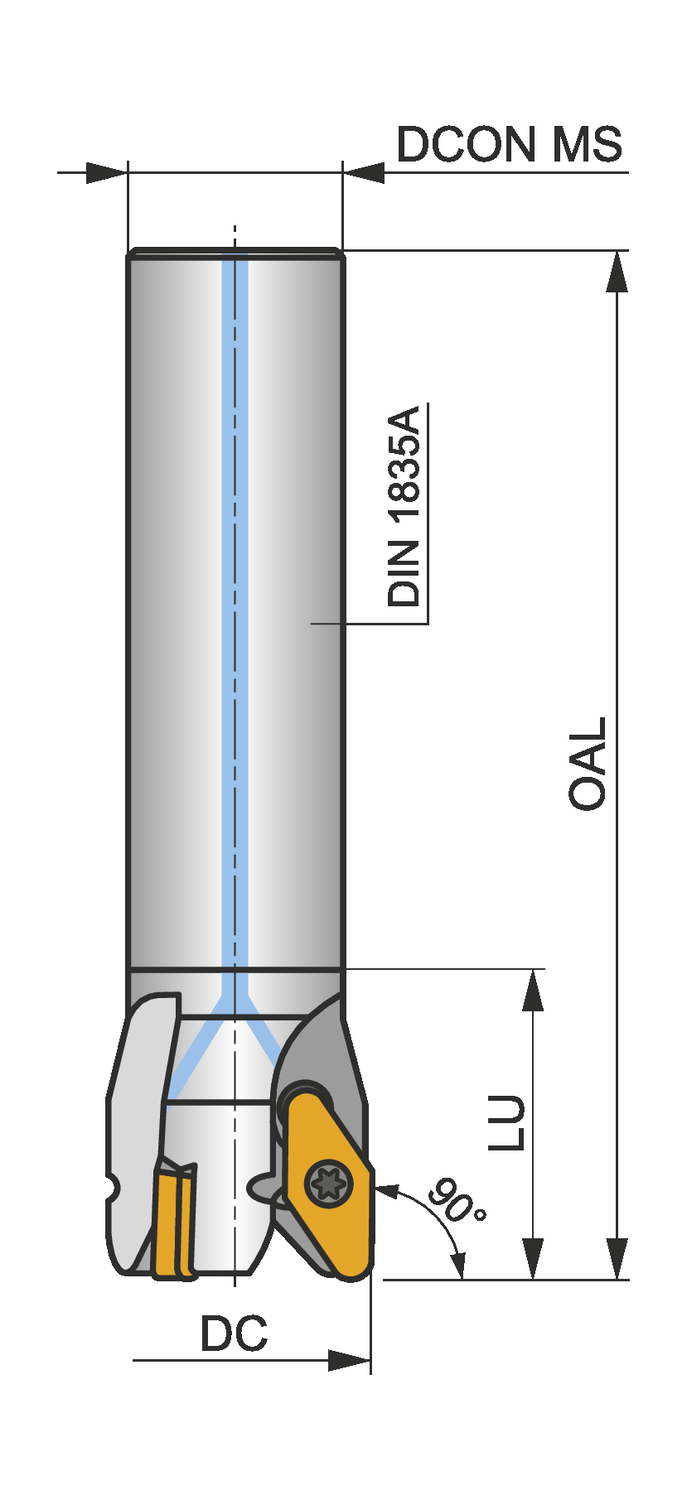

Axial rake angle (GAMP)
3
Clamping Type Code (MTP)
Screw clamping through hole
Connection diameter - inch (DCON MS)
0.984
Connection diameter - millimeter (DCON MS)
25
Coolant supply property (CSP)
1
Cutting diameter - inch (DC)
1.26
Cutting diameter - millimeter (DC)
32
Hand (Cutting direction)
Right
Insert index count (NOI)
2
Overall length - inch (OAL)
4.724
Overall length - millimeter (OAL)
120
Peripheral effective cutting edge count (ZEFP)
2
Radial rake angle (GAMF)
4
Rotational speed maximum (RPMX)
10400
Shank
Cylindrical shank DIN 1835A
Usable Length - millimeter (LU)
45
End mill with double positive geometry which utilises 2 off VCGT 220530F-FA single-sided inserts, cutting diameter 32mm with 90° approach angle and 25mm parallel shank according to DIN 1835A, 120mm overall length, through coolant for helical milling and progressive plunge milling with a maximum depth of cut of 3.0 (16.0)mm
