Pramet 32A3R040B32-SAD16E-C 6760170 End Milling Cutter - Square Shoulder
MODEL 6760170
$367.08 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
Axial rake angle (GAMP)
7
Clamping Type Code (MTP)
Screw clamping through hole

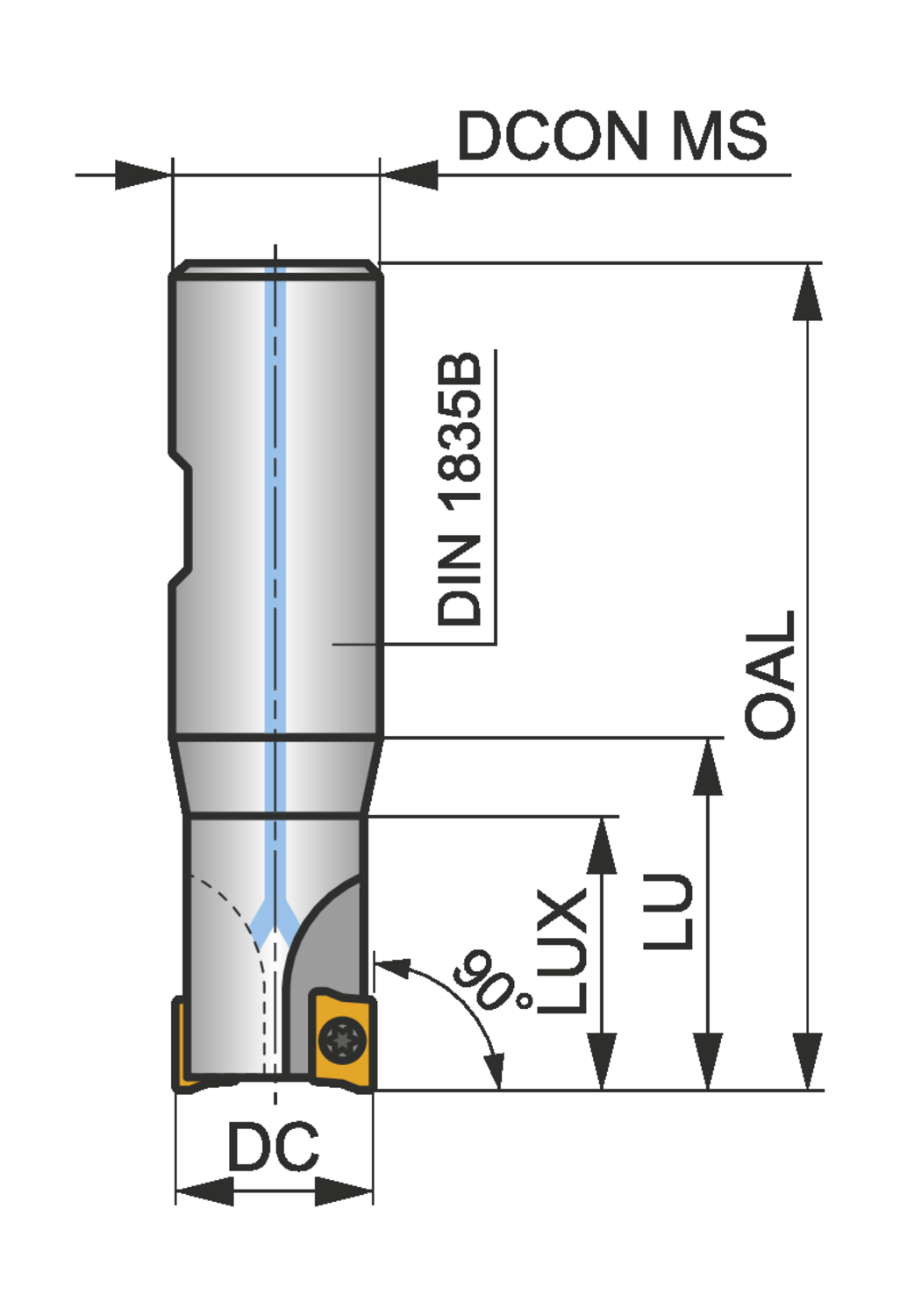

Connection diameter - inch (DCON MS)
1.26
Connection diameter - millimeter (DCON MS)
32
Connection size code machine side (CZC MS)
-
Coolant supply property (CSP)
1
Cutting diameter - inch (DC)
1.26
Cutting diameter - millimeter (DC)
32
Hand (Cutting direction)
Right
Insert index count (NOI)
3
Overall length - inch (OAL)
3.937
Overall length - millimeter (OAL)
100
Peripheral effective cutting edge count (ZEFP)
3
Radial rake angle (GAMF)
-12
Rotational speed maximum (RPMX)
16500
Shank
Weldon shank DIN 1835B
Usable Length maximum - millimeter (LUX)
40
Shoulder mill with positve/negative geometry which utilises 3 off ADMX 1606.. or ADEX 1606.. single-sided inserts, cutting diameter 32mm with 90° approach angle and 32mm Weldon shank according to DIN 1835B, 40mm functional and 100mm overall length, through coolant for copy milling, shallow shoulder milling, shallow slot milling, ramping, helical milling, plunge milling and progressive plunge milling with a maximum depth of cut of 13.0mm
