Pramet 32A4R042B32-SSO09-C square shoulder milling cutter body — 1.26 in (32 mm) cutting diameter, 90° approach angle, 4 SO..09 single-sided inserts, Weldon shank DIN 1835B, 4.016 in (102 mm) overall length, through coolant, differential pitch. Article 6758360.
MODEL 6758360
$513.08 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes

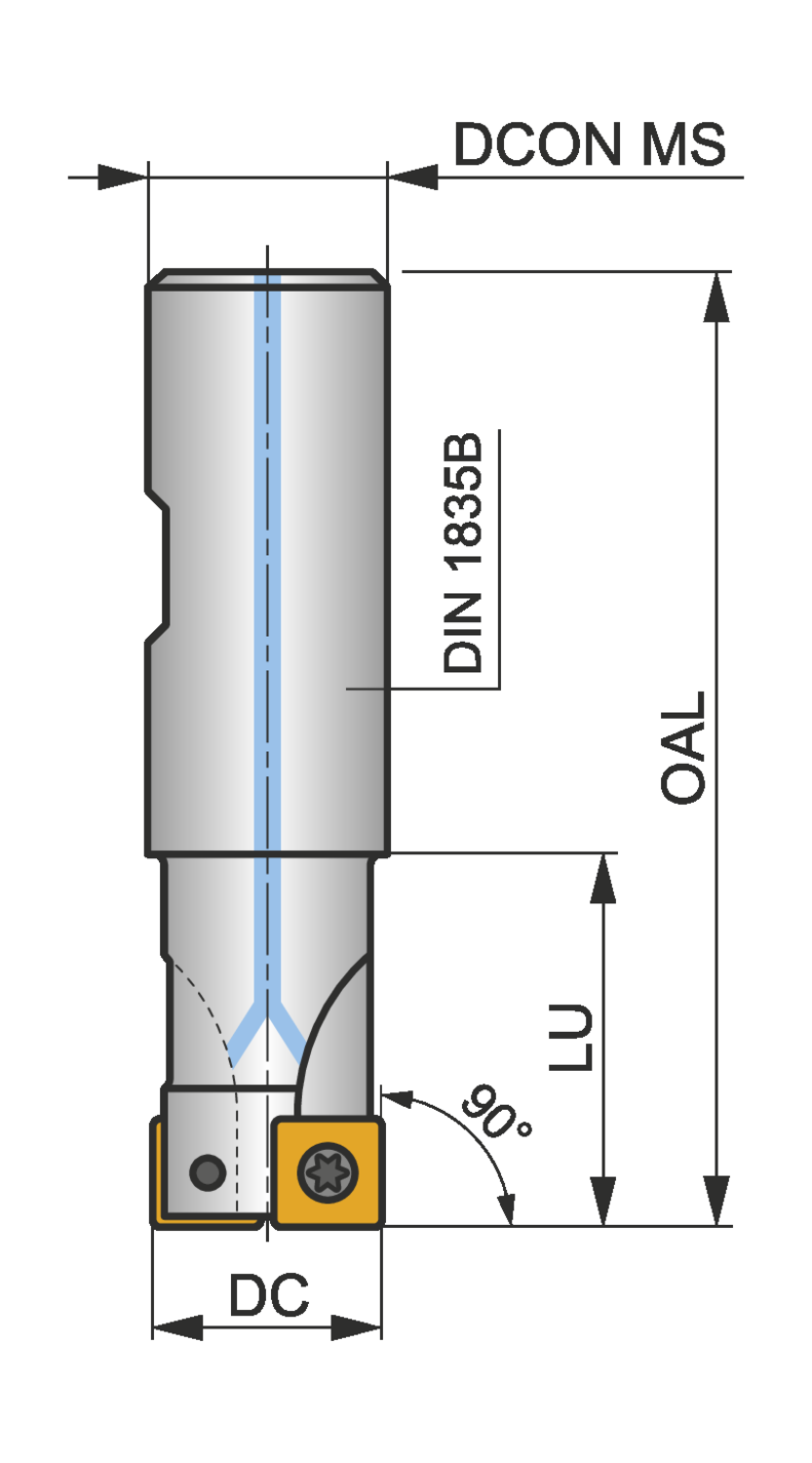

Axial rake angle (GAMP)
10
Clamping Type Code (MTP)
Screw clamping through hole
Connection diameter - inch (DCON MS)
1.26
Connection diameter - millimeter (DCON MS)
32
Coolant supply property (CSP)
1
Cutting diameter - inch (DC)
1.26
Cutting diameter - millimeter (DC)
32
Cutting pitch differential (CPDF)
1
Hand (Cutting direction)
Right
Insert index count (NOI)
4
Overall length - inch (OAL)
4.016
Overall length - millimeter (OAL)
102
Peripheral effective cutting edge count (ZEFP)
4
Radial rake angle (GAMF)
-10
Rotational speed maximum (RPMX)
18800
Shank
Weldon shank DIN 1835B
Usable Length - millimeter (LU)
42
Shoulder mill with positve/negative geometry which utilises 4 off SOMT 09T3.. single-sided inserts, cutting diameter 32mm with 90° approach angle and 32mm Weldon shank according to DIN 1835B, 102mm overall length, through coolant and differential pitch for shallow shoulder milling, shallow slot milling and plunge milling with a maximum depth of cut of 8.0mm
