Pramet 400A05R-IS57PN13 shell milling cutter, heavy duty, 4 in cutting diameter, 5 inserts, 57° approach angle, 1.5 in connection bore, DIN 8030-A, right hand, 0.394 in maximum depth of cut. Article 6792988.
MODEL 6792988
$930.54 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes

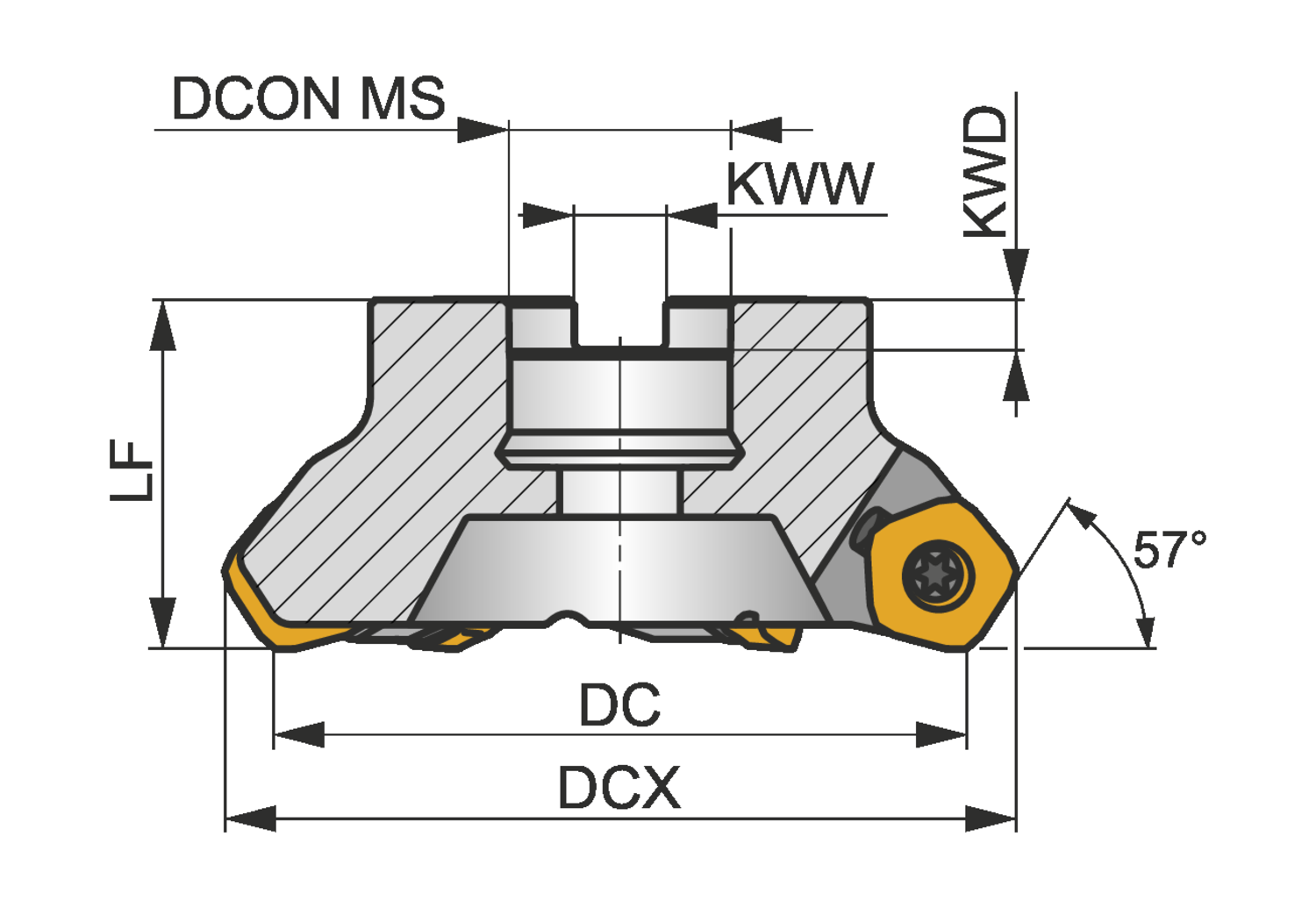

Axial rake angle (GAMP)
-4
Clamping Type Code (MTP)
Screw clamping through hole
Connection diameter - inch (DCON MS)
1.5
Connection diameter - millimeter (DCON MS)
38.1
Counterbore diameter connection bore - inch (DCCB)
1.417
Counterbore diameter connection bore - millimeter (DCCB)
36
Cutting diameter - inch (DC)
4
Cutting diameter - millimeter (DC)
101.6
Cutting diameter maximum - inch (DCX)
4.629
Cutting diameter maximum - millimeter (DCX)
117.6
Functional length - inch (LF)
1.969
Hand (Cutting direction)
Right
Keyway depth - inch (KWD)
0.382
Keyway width - inch (KWW)
0.63
Peripheral effective cutting edge count (ZEFP)
5
Radial rake angle (GAMF)
-8.2
Rotational speed maximum (RPMX)
3400
Shank
Shell mill DIN 8030 A
Face mill with double negative geometry which utilises 5 off PNMU 1308DN.. or PNMQ 1308DN.. double-sided inserts, cutting diameter 4.000 to maximum 4.629'' with 57° approach angle and 1.500'' connection bore according to DIN 8030-A, 1.969'' protrusion length for face milling with a maximum depth of cut of .394''
