Pramet 400A05R-IS90SN12N4 6789675 Shell Disc Mill - Slotting
MODEL 6789675
$1,026.17 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes

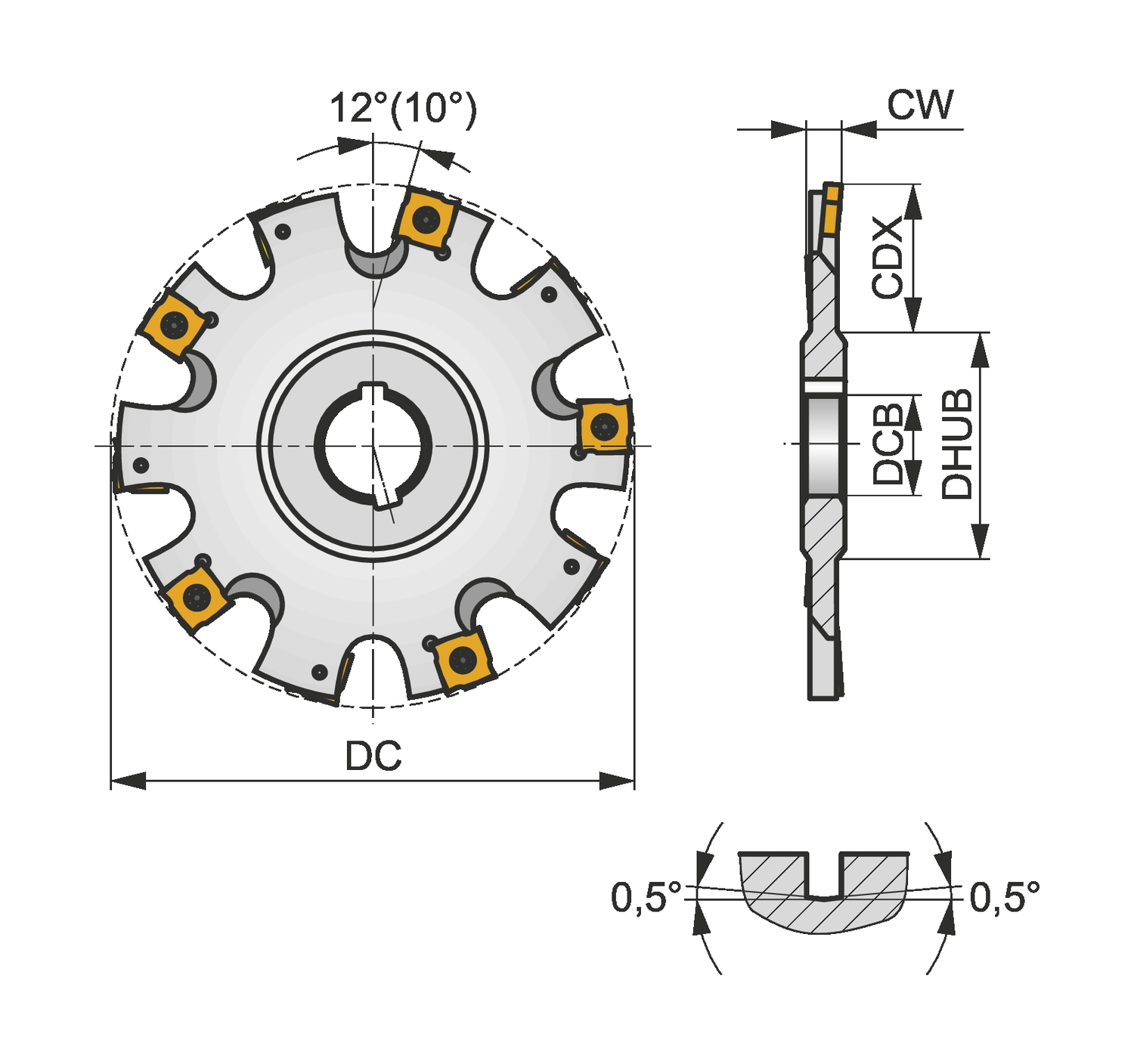

Axial rake angle (GAMP)
0.5
Clamping Type Code (MTP)
Screw clamping through hole
Connection (shank) description
Arbor DIN 8030/A
Connection bore diameter - inch (DCB)
1
Cutting depth maximum - inch (CDX)
0.945
Cutting diameter - inch (DC)
4
Cutting diameter - millimeter (DC)
101.6
Cutting width - inch (CW)
0.25
Hand (Cutting direction)
Right
Hub diameter - inch (DHUB)
1.89
Number of peripheral edges in the tool (ZNP)
10
Overall length - inch (OAL)
1.969
Overall length - millimeter (OAL)
50
Peripheral effective cutting edge count (ZEFP)
10
Possible use
Medium machining
Radial rake angle (GAMF)
2.5
Rotational speed maximum (RPMX)
7500
Shank
Shell mill DIN 8030 A
Disc mill with double positive geometry which utilises 10 off SNHQ 1102.. double-sided inserts, cutting diameter 4.000'' with 90° approach angle and 1.000'' connection bore according to DIN 8030-A, 1.969'' protrusion length for deep slot milling with a width of cut of.250''
