Pramet 400A08R-IS90AD16E-C shell milling cutter body, square shoulder, 4 in cutting diameter, 8 AD..16 inserts, 90° approach angle, 1.5 in connection bore per DIN 8030-A, 1.969 in functional length, through coolant, right hand. Article 6798490.
MODEL 6798490
$938.77 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes

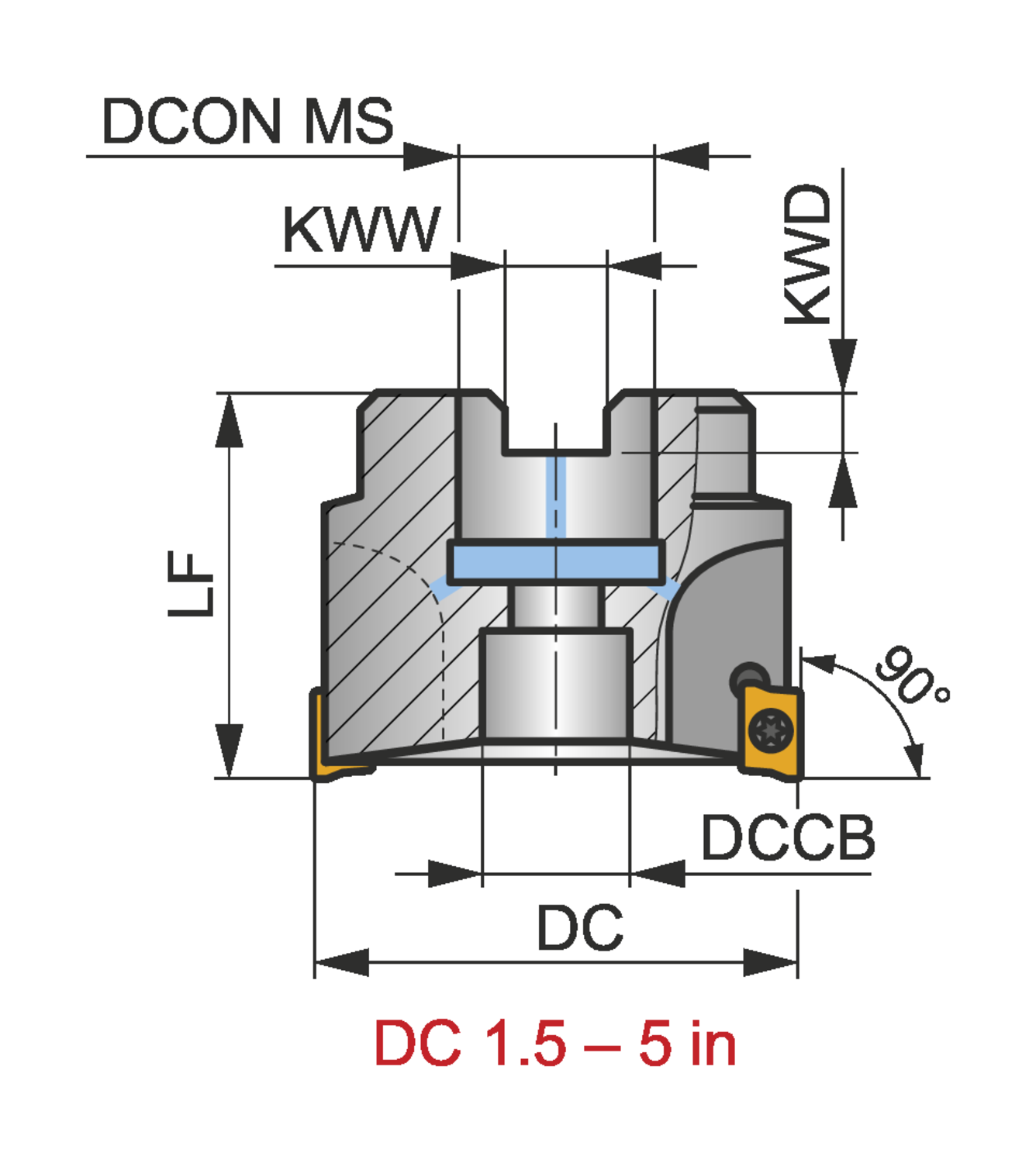

Axial rake angle (GAMP)
12
Clamping Type Code (MTP)
Screw clamping through hole
Connection diameter - inch (DCON MS)
1.5
Connection diameter - millimeter (DCON MS)
38.1
Coolant supply property (CSP)
1
Counterbore diameter connection bore - inch (DCCB)
1.26
Counterbore diameter connection bore - millimeter (DCCB)
32
Cutting diameter - inch (DC)
4
Cutting diameter - millimeter (DC)
101.6
Cutting pitch differential (CPDF)
1
Functional length - inch (LF)
1.969
Hand (Cutting direction)
Right
Keyway depth - inch (KWD)
0.382
Keyway width - inch (KWW)
0.634
Peripheral effective cutting edge count (ZEFP)
8
Radial rake angle (GAMF)
-4
Rotational speed maximum (RPMX)
9300
Shank
Shell mill DIN 8030 A
Shoulder mill with positve/negative geometry which utilises 8 off ADMX 1606.. or ADEX 1606.. single-sided inserts, cutting diameter 4.000'' with 90° approach angle and 1.500'' connection bore according to DIN 8030-A, 1.969'' protrusion length, through coolant for copy milling, shallow shoulder milling, shallow slot milling, ramping, helical milling, plunge milling and progressive plunge milling with a maximum depth of cut of .512''
