Pramet 40A05R-S90AD11E-C 7049096 Shell Milling Cutter - Square Shoulder
MODEL 7049096
$398.95 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes

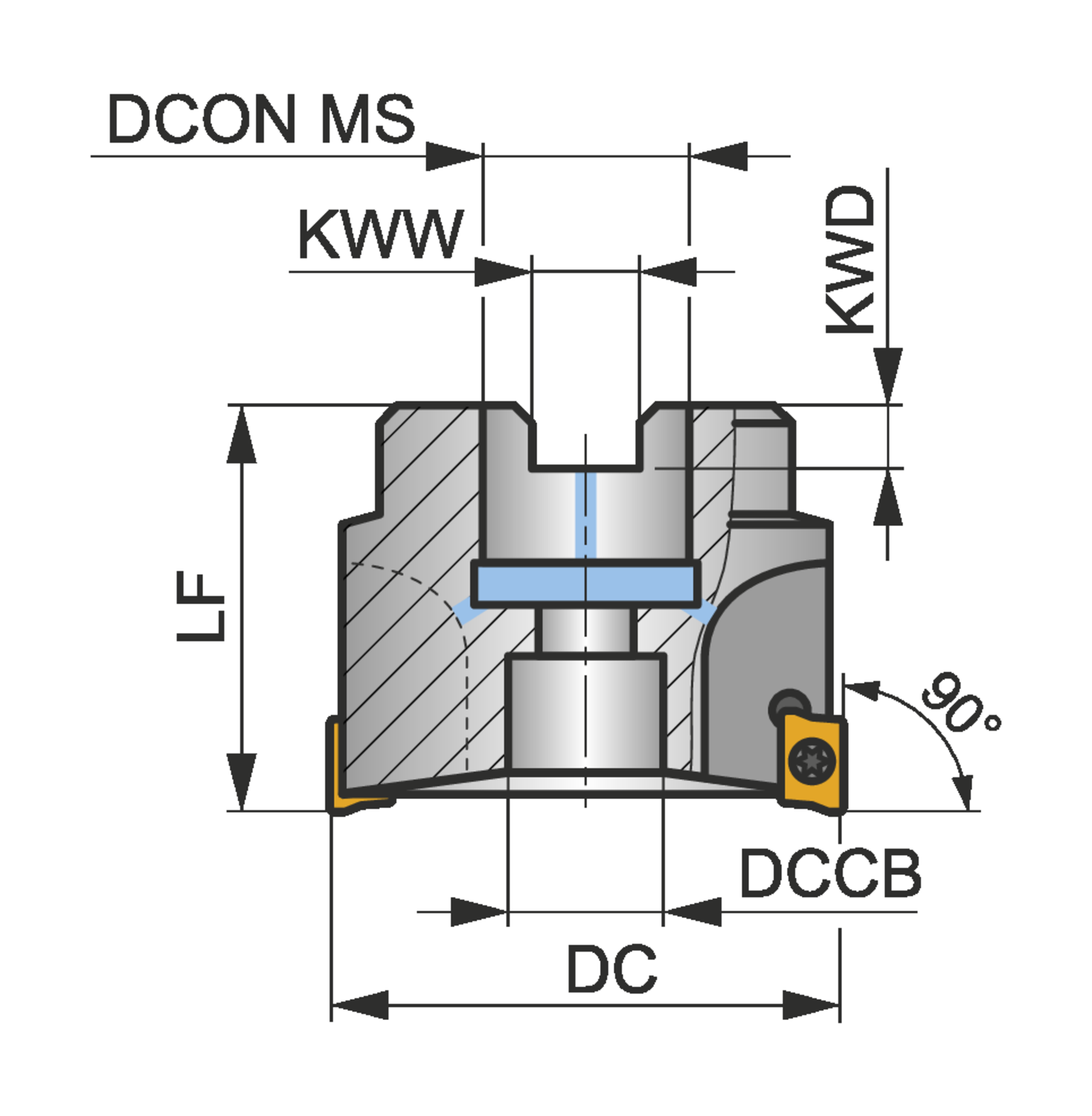

Axial rake angle (GAMP)
11
Clamping Type Code (MTP)
Screw clamping through hole
Connection diameter - inch (DCON MS)
0.63
Connection diameter - millimeter (DCON MS)
16
Connection size code machine side (CZC MS)
-
Coolant supply property (CSP)
1
Counterbore diameter connection bore - inch (DCCB)
0.551
Counterbore diameter connection bore - millimeter (DCCB)
14
Cutting diameter - inch (DC)
1.575
Cutting diameter - millimeter (DC)
40
Cutting pitch differential (CPDF)
1
Functional length - millimeter (LF)
40
Hand (Cutting direction)
Right
Insert index count (NOI)
5
Keyway depth - millimeter (KWD)
5.6
Keyway width - millimeter (KWW)
8.4
Peripheral effective cutting edge count (ZEFP)
5
Radial rake angle (GAMF)
-8.1
Rotational speed maximum (RPMX)
19000
Shank
Shell mill DIN 8030 A
Shoulder mill with positve/negative geometry which utilises 5 off ADMX 11T3.. or ADEX 11T3.. single-sided inserts, cutting diameter 40mm with 90° approach angle and 16mm connection bore according to DIN 8030-A, 40mm protrusion length, through coolant and differential pitch for copy milling, shallow shoulder milling, shallow slot milling, ramping, helical milling, plunge milling and progressive plunge milling with a maximum depth of cut of 9.0mm
