Pramet 40A05R-S90SO09-C shell milling cutter body for square shoulder milling, 1.575 in (40 mm) cutting diameter, 90° approach angle, 5-insert SSO09 design, 0.315 in maximum depth of cut, 14 mm connection bore per DIN 8030-A, through coolant, right-hand cutting. Article 6758308.
MODEL 6758308
$454.47 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes

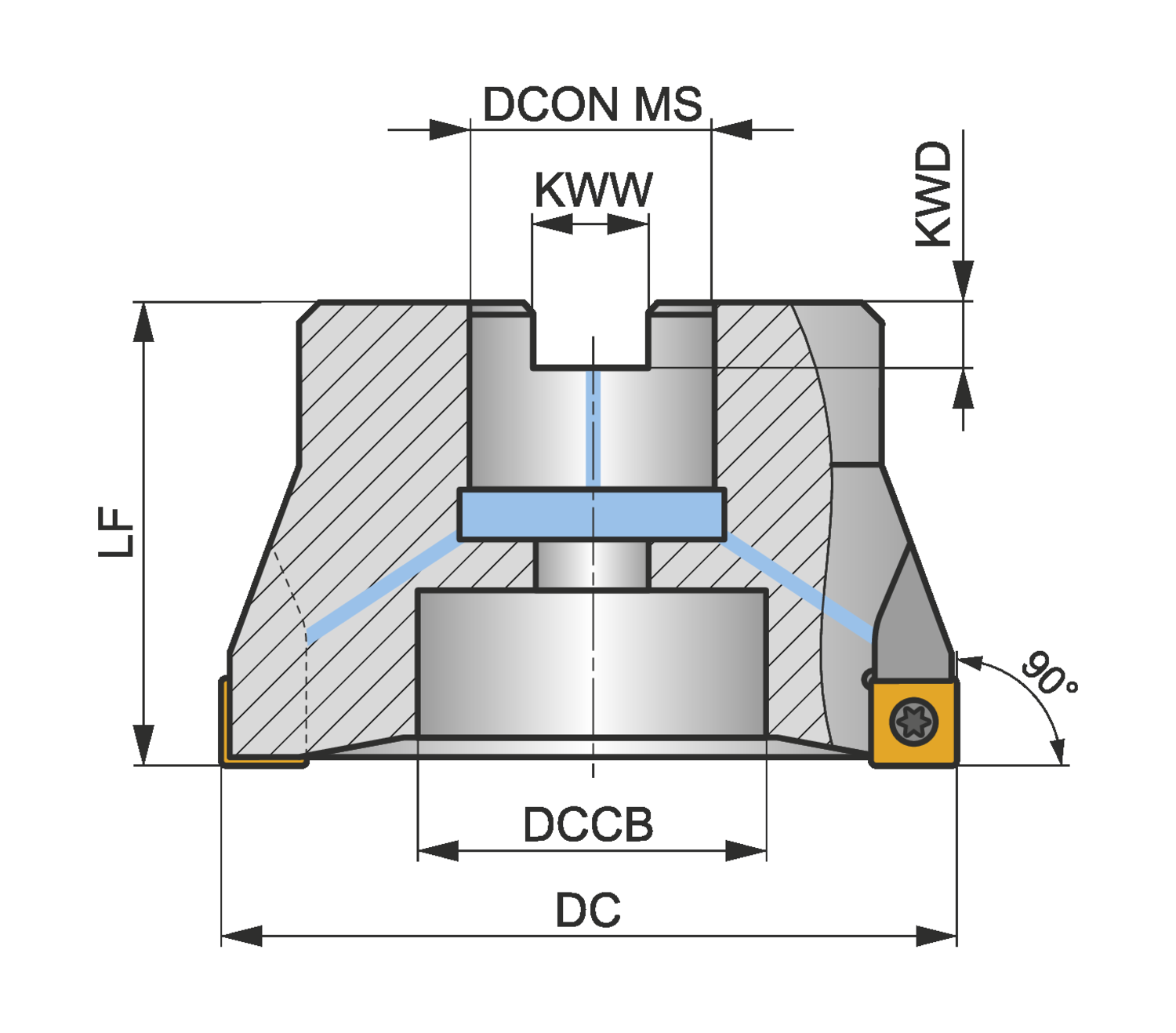

Axial rake angle (GAMP)
10
Clamping Type Code (MTP)
Screw clamping through hole
Connection diameter - inch (DCON MS)
0.63
Connection diameter - millimeter (DCON MS)
14
Coolant supply property (CSP)
1
Counterbore diameter connection bore - inch (DCCB)
0.551
Counterbore diameter connection bore - millimeter (DCCB)
14
Cutting diameter - inch (DC)
1.575
Cutting diameter - millimeter (DC)
40
Functional length - millimeter (LF)
40
Hand (Cutting direction)
Right
Insert index count (NOI)
5
Keyway depth - millimeter (KWD)
5.6
Keyway width - millimeter (KWW)
8.4
Peripheral effective cutting edge count (ZEFP)
5
Radial rake angle (GAMF)
-9.1
Rotational speed maximum (RPMX)
16800
Shank
Shell mill DIN 8030 A
Shoulder mill with positve/negative geometry which utilises 5 off SOMT 09T3.. single-sided inserts, cutting diameter 40mm with 90° approach angle and 16mm connection bore according to DIN 8030-A, 40mm protrusion length, through coolant for shallow shoulder milling, shallow slot milling and plunge milling with a maximum depth of cut of 8.0mm
