Pramet 40A3R048M16-SVC22C 6757985 Modular Head for Copy and Profile Milling
MODEL 6757985
$439.05 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes

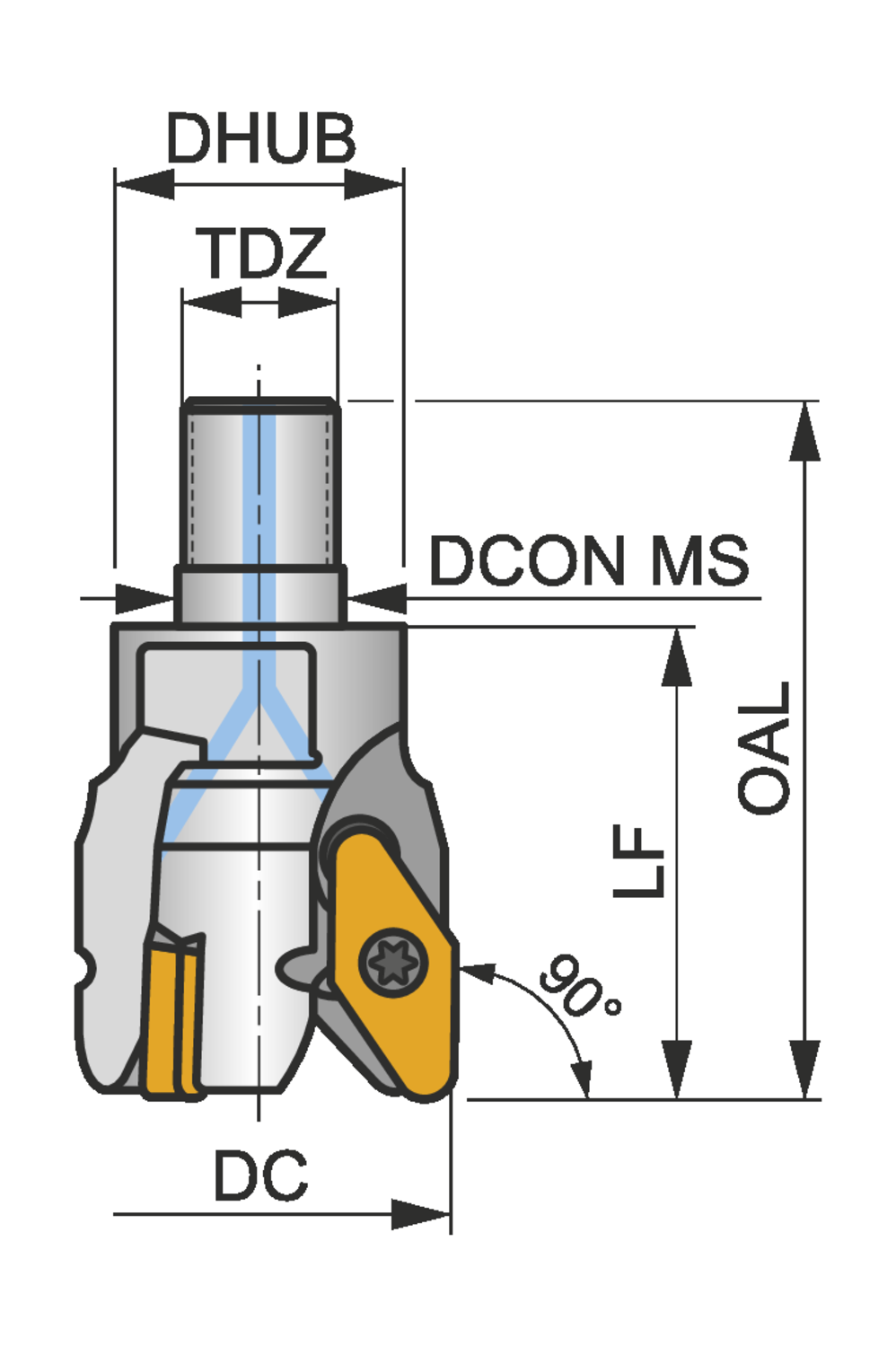

Axial rake angle (GAMP)
3
Clamping Type Code (MTP)
Screw clamping through hole
Connection diameter - inch (DCON MS)
0.669
Connection diameter - millimeter (DCON MS)
17
Coolant supply property (CSP)
1
Cutting diameter - inch (DC)
1.575
Cutting diameter - millimeter (DC)
40
Functional length - millimeter (LF)
48
Hand (Cutting direction)
Right
Hub diameter - millimeter (DHUB)
29
Insert index count (NOI)
3
Overall length - inch (OAL)
2.795
Overall length - millimeter (OAL)
71
Peripheral effective cutting edge count (ZEFP)
3
Radial rake angle (GAMF)
13
Shank
Threaded coupling
Thread diameter size (TDZ)
M16
End mill with double positive geometry which utilises 3 off VCGT 220530F-FA single-sided inserts, cutting diameter 40mm with 90° approach angle and M16 threaded shank for standard modular tool-holders, 48mm protrusion length, through coolant for helical milling and progressive plunge milling with a maximum depth of cut of 3.0 (16.0)mm
