Pramet 40A3R054E04-SAD16E-C square shoulder milling cutter body, 1.575 in (40 mm) cutting diameter, 0.512 in maximum depth of cut, 3 inserts, 90° approach angle, Morse shank DIN 228-1, through coolant. Article 6758507.
MODEL 6758507
$438.02 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
Axial rake angle (GAMP)
10.5
Clamping Type Code (MTP)
Screw clamping through hole
Connection size code machine side (CZC MS)
4
Coolant supply property (CSP)
1

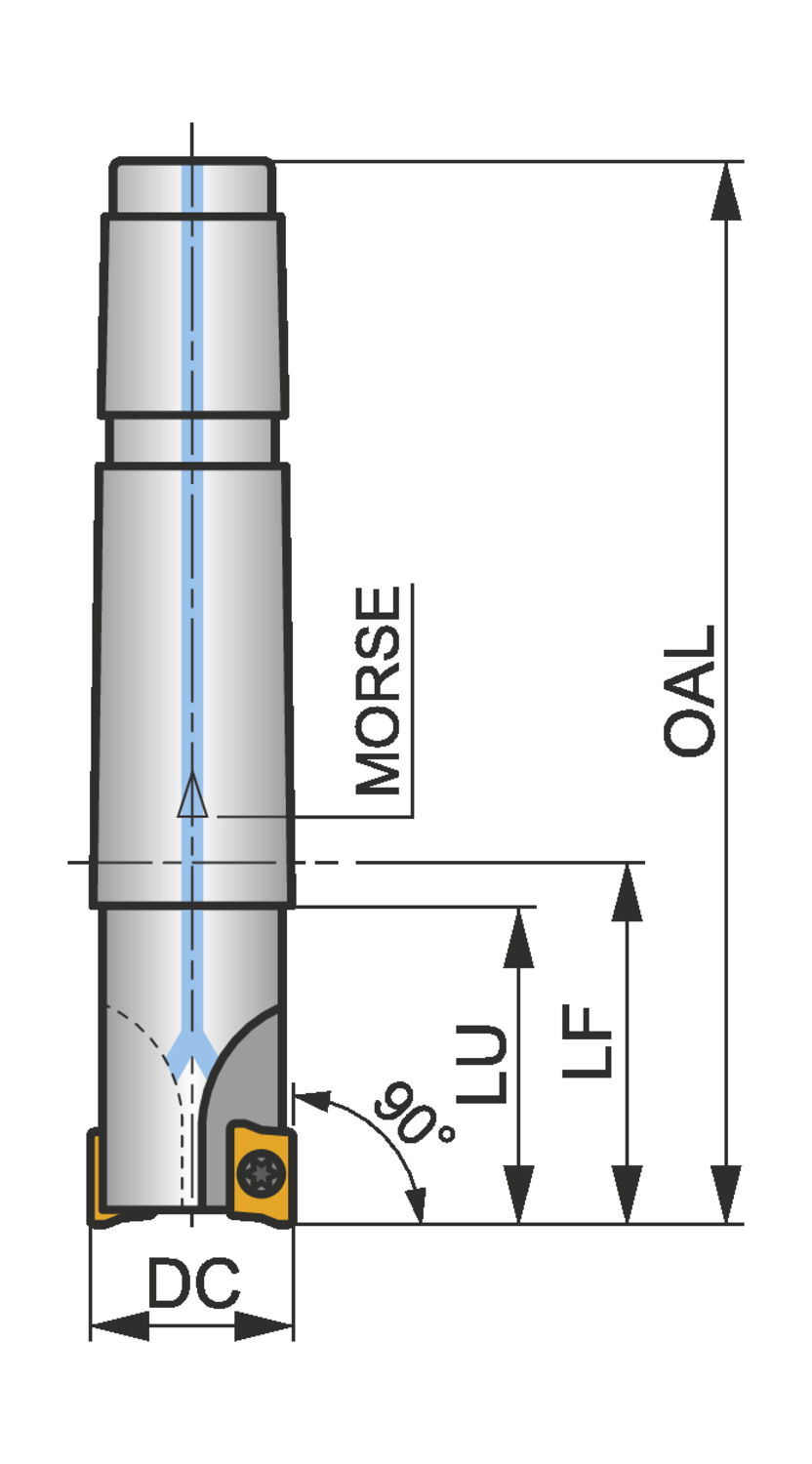

Cutting diameter - inch (DC)
1.575
Cutting diameter - millimeter (DC)
40
Functional length - millimeter (LF)
54
Hand (Cutting direction)
Right
Insert index count (NOI)
3
Overall length - inch (OAL)
4.331
Overall length - millimeter (OAL)
110
Peripheral effective cutting edge count (ZEFP)
3
Radial rake angle (GAMF)
-8.2
Rotational speed maximum (RPMX)
14700
Shank
Morse shank DIN 228-1
Usable Length - millimeter (LU)
48
Shoulder mill with positve/negative geometry which utilises 3 off ADMX 1606.. or ADEX 1606.. single-sided inserts, cutting diameter 40mm with 90° approach angle and MT 4 morse taper shank according to DIN 228-1A, 48mm functional and 110mm overall length, through coolant for copy milling, shallow shoulder milling, shallow slot milling, ramping, helical milling, plunge milling and progressive plunge milling with a maximum depth of cut of 13.0mm
