Pramet 500H06N-IS90SN12N5 6789680 Disc Milling Cutter - Slotting
MODEL 6789680
$1,136.19 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
Axial rake angle (GAMP)
0.5
Clamping Type Code (MTP)
Screw clamping through hole
Connection (shank) description
Arbor DIN 8030 - disc mill
Connection bore diameter - inch (DCB)
1.25
Counterbore diameter connection bore - inch (DCCB)
2
Cutting depth maximum - inch (CDX)
1.22
Cutting diameter - inch (DC)
5
Cutting diameter - millimeter (DC)
127
Cutting width - inch (CW)
0.313
Hand (Cutting direction)
Neutral
Number of peripheral edges in the tool (ZNP)
12
Peripheral effective cutting edge count (ZEFP)
12
Possible use
Medium machining
Radial rake angle (GAMF)
2.5
Rotational speed maximum (RPMX)
6700
Shank
Shell mill DIN 8030 – disc mill

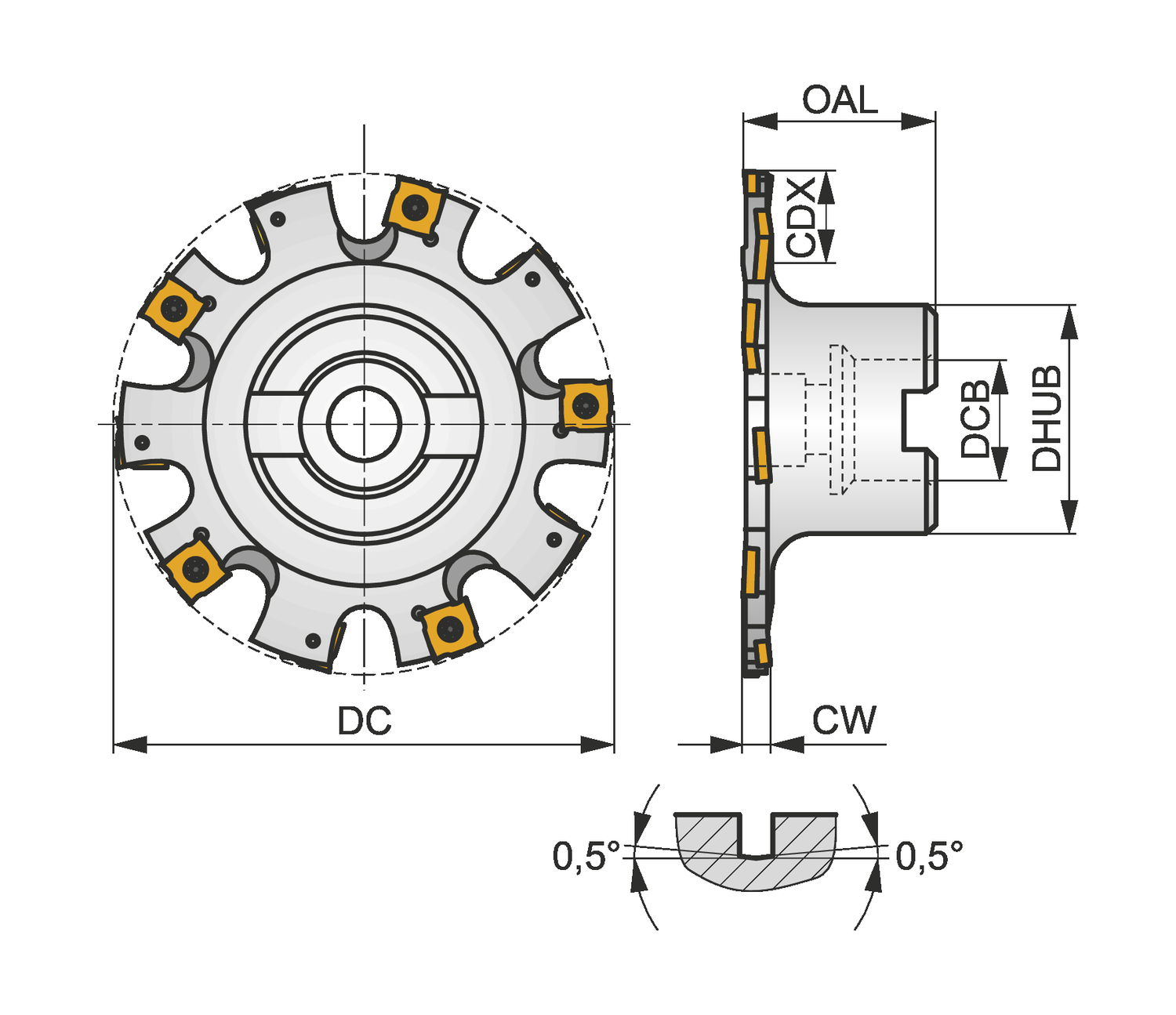

Disc mill with double positive geometry which utilises 12 off SNHQ 1102.. double-sided inserts, cutting diameter 5.000'' with 90° approach angle and 1.250'' connection bore according to DIN 8030, for deep slot milling with a width of cut of .313''
