Pramet 50A03R-S90VC22C 6757986 Shell Milling Cutter - Copy and Profile
MODEL 6757986
$567.58 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes

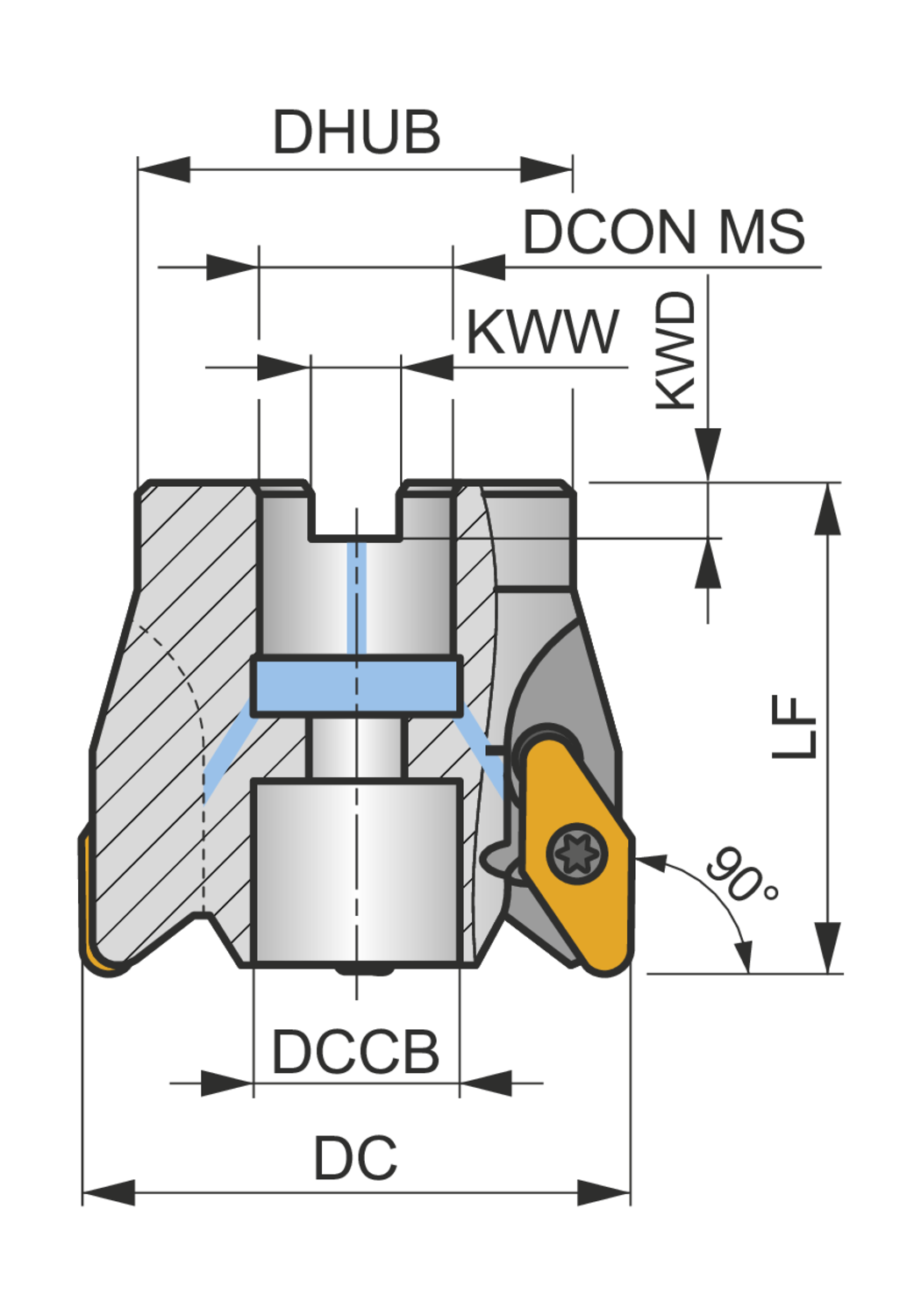

Axial rake angle (GAMP)
3
Clamping Type Code (MTP)
Screw clamping through hole
Connection diameter - inch (DCON MS)
0.866
Connection diameter - millimeter (DCON MS)
22
Coolant supply property (CSP)
1
Counterbore diameter connection bore - inch (DCCB)
0.709
Counterbore diameter connection bore - millimeter (DCCB)
18
Cutting diameter - inch (DC)
1.969
Cutting diameter - millimeter (DC)
50
Functional length - millimeter (LF)
56
Hand (Cutting direction)
Right
Hub diameter - millimeter (DHUB)
40
Insert index count (NOI)
3
Keyway depth - millimeter (KWD)
6.3
Keyway width - millimeter (KWW)
10
Peripheral effective cutting edge count (ZEFP)
3
Radial rake angle (GAMF)
4
Rotational speed maximum (RPMX)
8400
Shank
Shell mill DIN 8030 A
End mill with double positive geometry which utilises 3 off VCGT 220530F-FA single-sided inserts, cutting diameter 50mm with 90° approach angle and 22mm connection bore according to DIN 8030-A, 56mm protrusion length, through coolant for helical milling and progressive plunge milling with a maximum depth of cut of 3.0 (16.0)mm
