Pramet 50A06R-S45HN06C-C 6760269 Shell Milling Cutter - Face
MODEL 6760269
$520.28 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes

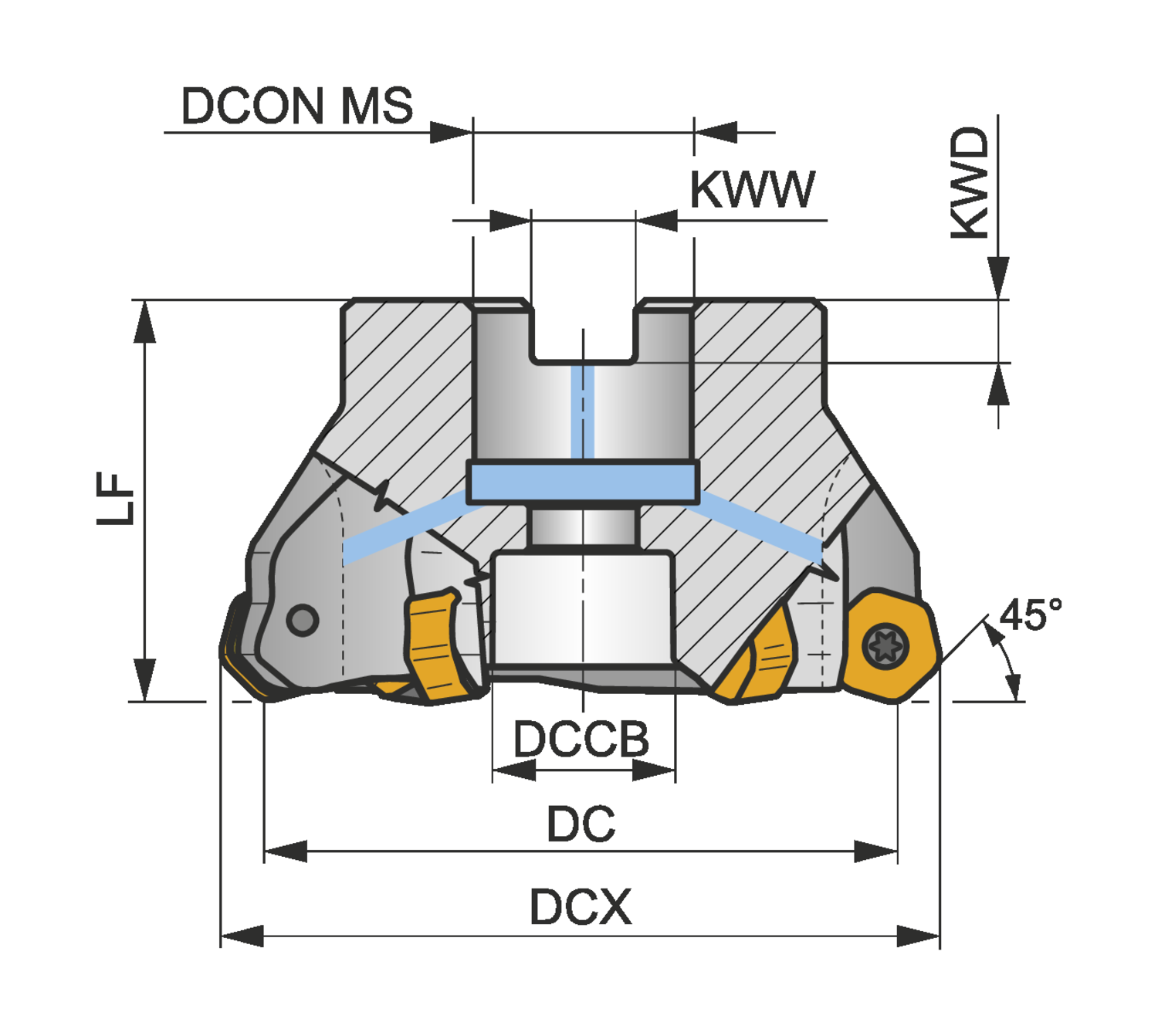

Axial rake angle (GAMP)
-7
Clamping Type Code (MTP)
Screw clamping through hole
Connection diameter - inch (DCON MS)
0.866
Connection diameter - millimeter (DCON MS)
22
Coolant supply property (CSP)
1
Counterbore diameter connection bore - inch (DCCB)
0.709
Counterbore diameter connection bore - millimeter (DCCB)
18
Cutting diameter - inch (DC)
1.969
Cutting diameter - millimeter (DC)
50
Cutting diameter maximum - inch (DCX)
2.256
Cutting diameter maximum - millimeter (DCX)
57.3
Cutting pitch differential (CPDF)
1
Functional length - millimeter (LF)
40
Hand (Cutting direction)
Right
Insert index count (NOI)
6
Keyway depth - millimeter (KWD)
6.3
Keyway width - millimeter (KWW)
10.4
Peripheral effective cutting edge count (ZEFP)
6
Radial rake angle (GAMF)
-7
Rotational speed maximum (RPMX)
12300
Shank
Shell mill DIN 8030 A
Face mill with double negative geometry which utilises 6 off HNGX 0604AN.. or XNGX 0604AN.. double-sided inserts, cutting diameter 50 to maximum 57.3mm with 45° approach angle and 22mm connection bore according to DIN 8030-A, 40mm protrusion length, through coolant and differential pitch for face milling, ramping, progressive plunge milling and chamfering with a maximum depth of cut of 3.0mm
