Pramet 63A03R-S90SN11N4 6758322 Shell Disc Mill - Slotting
MODEL 6758322
$858.57 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes

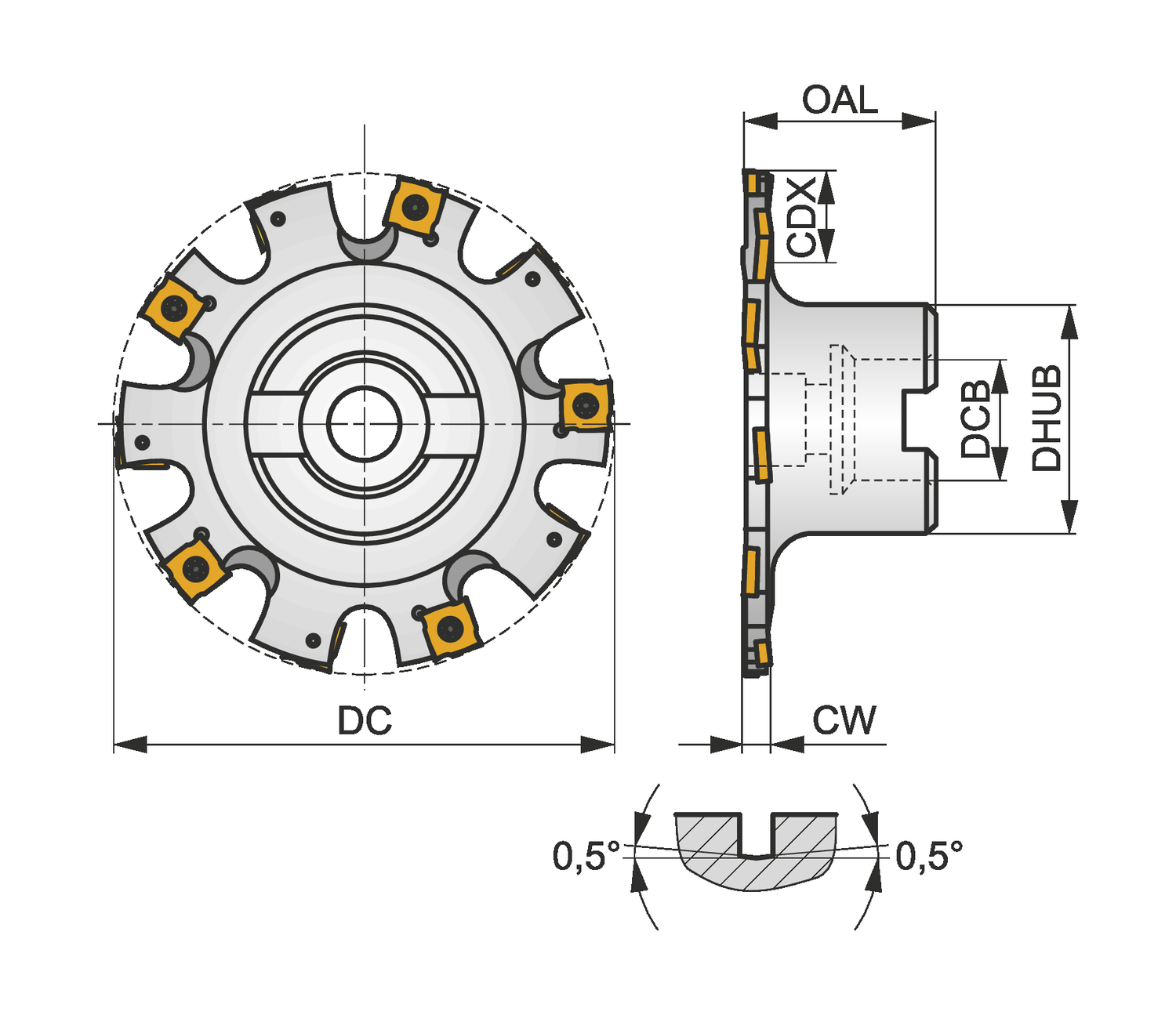

Axial rake angle (GAMP)
-0.5
Clamping Type Code (MTP)
Screw clamping through hole
Connection (shank) description
Arbor DIN 8030/A
Connection bore diameter - millimeter (DCB)
16
Cutting depth maximum - millimeter (CDX)
10.5
Cutting diameter - inch (DC)
2.48
Cutting diameter - millimeter (DC)
63
Cutting width - millimeter (CW)
4
Face effective cutting edge count (ZEFF)
3
Hand (Cutting direction)
Right
Hub diameter - millimeter (DHUB)
34
Insert group used in the tool
SNHQ 1102
Insert index count (NOI)
6
Number of peripheral edges in the tool (ZNP)
6
Overall length - inch (OAL)
1.575
Overall length - millimeter (OAL)
40
Peripheral effective cutting edge count (ZEFP)
6
Possible use
Medium machining
Radial rake angle (GAMF)
2.5
Rotational speed maximum (RPMX)
13900
Shank
Shell mill DIN 8030 A
Disc mill with positve/negative geometry which utilises 6 off SNHQ 1102.. double-sided inserts, cutting diameter 63mm with 90° approach angle and 16mm connection bore according to DIN 8030-A, 40mm protrusion length for deep slot milling with a width of cut of 4mm
