Pramet 63A06R-S90SD12-C shell milling cutter, square shoulder, 2.48 in (63 mm) cutting diameter, 6 inserts, 90° cutting edge angle, 0.394 in maximum depth of cut, 40 mm functional length, 0.866 in connection bore, DIN 8030-A, through coolant, right hand. Article 6756790.
MODEL 6756790
$625.16 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes

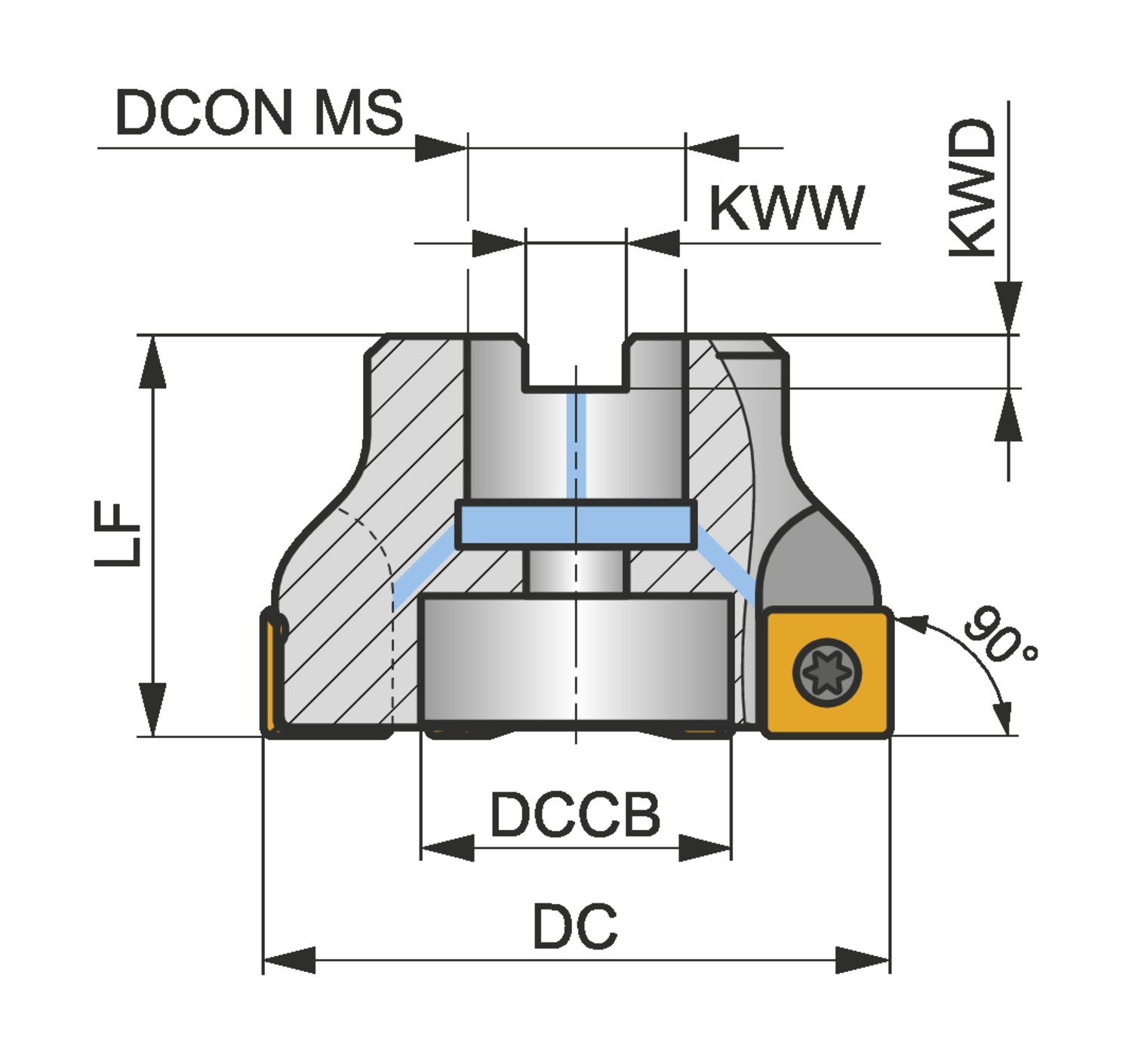

Axial rake angle (GAMP)
8
Clamping Type Code (MTP)
Screw clamping through hole
Connection diameter - inch (DCON MS)
22
Coolant supply property (CSP)
1
Counterbore diameter connection bore - inch (DCCB)
0.709
Counterbore diameter connection bore - millimeter (DCCB)
18
Cutting diameter - inch (DC)
2.48
Cutting diameter - millimeter (DC)
63
Functional length - millimeter (LF)
40
Hand (Cutting direction)
Right
Insert index count (NOI)
6
Keyway depth - millimeter (KWD)
6.3
Keyway width - millimeter (KWW)
10.4
Peripheral effective cutting edge count (ZEFP)
6
Radial rake angle (GAMF)
-5
Rotational speed maximum (RPMX)
11600
Shank
Shell mill DIN 8030 A
Shoulder mill with positve/negative geometry which utilises 6 off SDMT 1205.. single-sided inserts, cutting diameter 63mm with 90° approach angle and 22mm connection bore according to DIN 8030-A, 40mm protrusion length, through coolant for shallow shoulder milling, shallow slot milling and plunge milling with a maximum depth of cut of 10.0mm
