Pramet 800C10R-IS57PN13 shell milling cutter, heavy duty, 8 in cutting diameter, 10 inserts, 57° approach angle, 2.5 in connection bore, DIN 8030 A, right hand, face milling, maximum depth of cut 0.394 in. Article 6792991.
MODEL 6792991
$1,974.19 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes

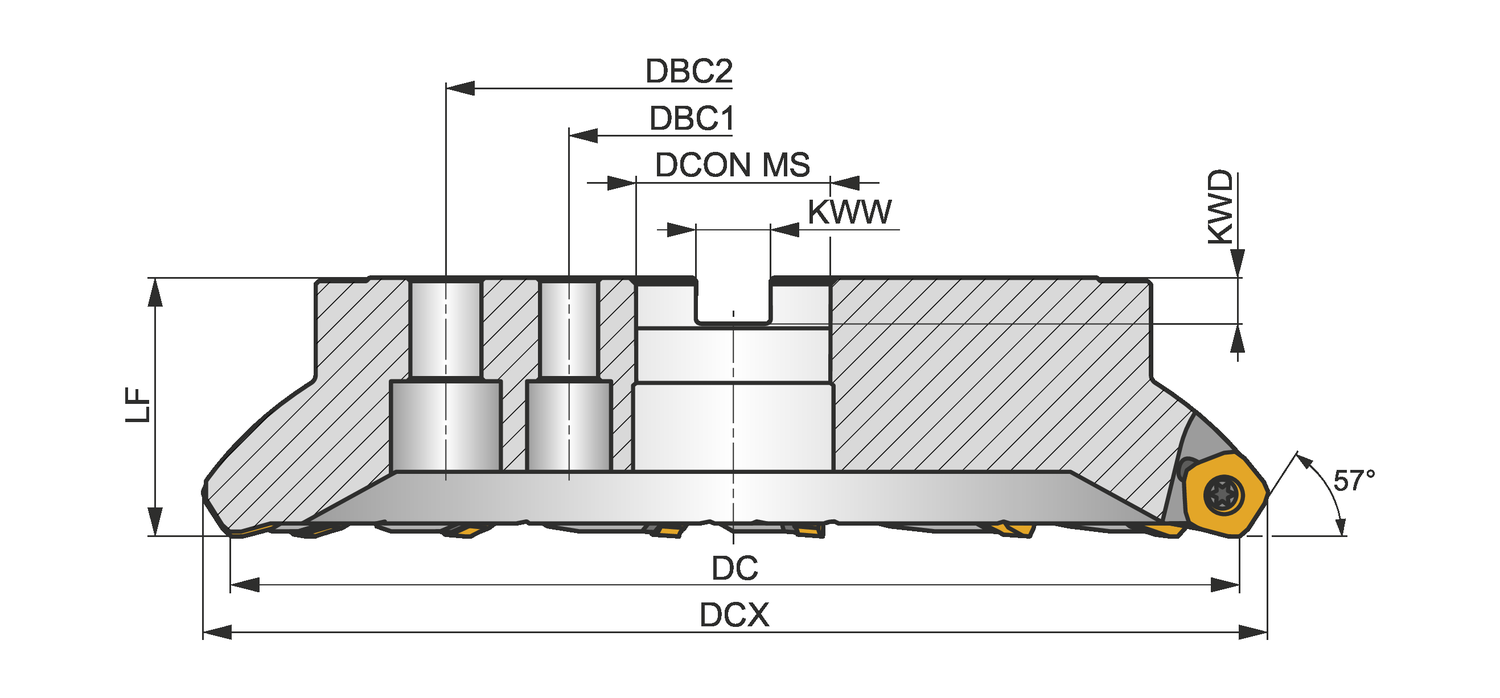

Axial rake angle (GAMP)
-4
Clamping Type Code (MTP)
Screw clamping through hole
Connection diameter - inch (DCON MS)
2.5
Connection diameter - millimeter (DCON MS)
63.5
Cutting diameter - inch (DC)
8
Cutting diameter - millimeter (DC)
203.2
Cutting diameter maximum - inch (DCX)
8.627
Cutting diameter maximum - millimeter (DCX)
219.1
Diameter bolt circle 1 - inch (DBC1)
4
Functional length - inch (LF)
2.48
Hand (Cutting direction)
Right
Keyway depth - inch (KWD)
0.559
Keyway width - inch (KWW)
1
Peripheral effective cutting edge count (ZEFP)
10
Radial rake angle (GAMF)
-5
Rotational speed maximum (RPMX)
2400
Shank
Shell mill DIN 8030 C
Face mill with double negative geometry which utilises 10 off PNMU 1308DN.. or PNMQ 1308DN.. double-sided inserts, cutting diameter 8.000 to maximum 8.627'' with 57° approach angle and 2.500'' connection bore according to DIN 8030-C, 2.480'' protrusion length for face milling with a maximum depth of cut of .394''
#6064696
Brand
Pramet
Model
7800657
