Pramet 800C11R-IS45OE06Z-C 7275035 Shell Milling Cutter - Face
MODEL 7275035
$1,534.11 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes

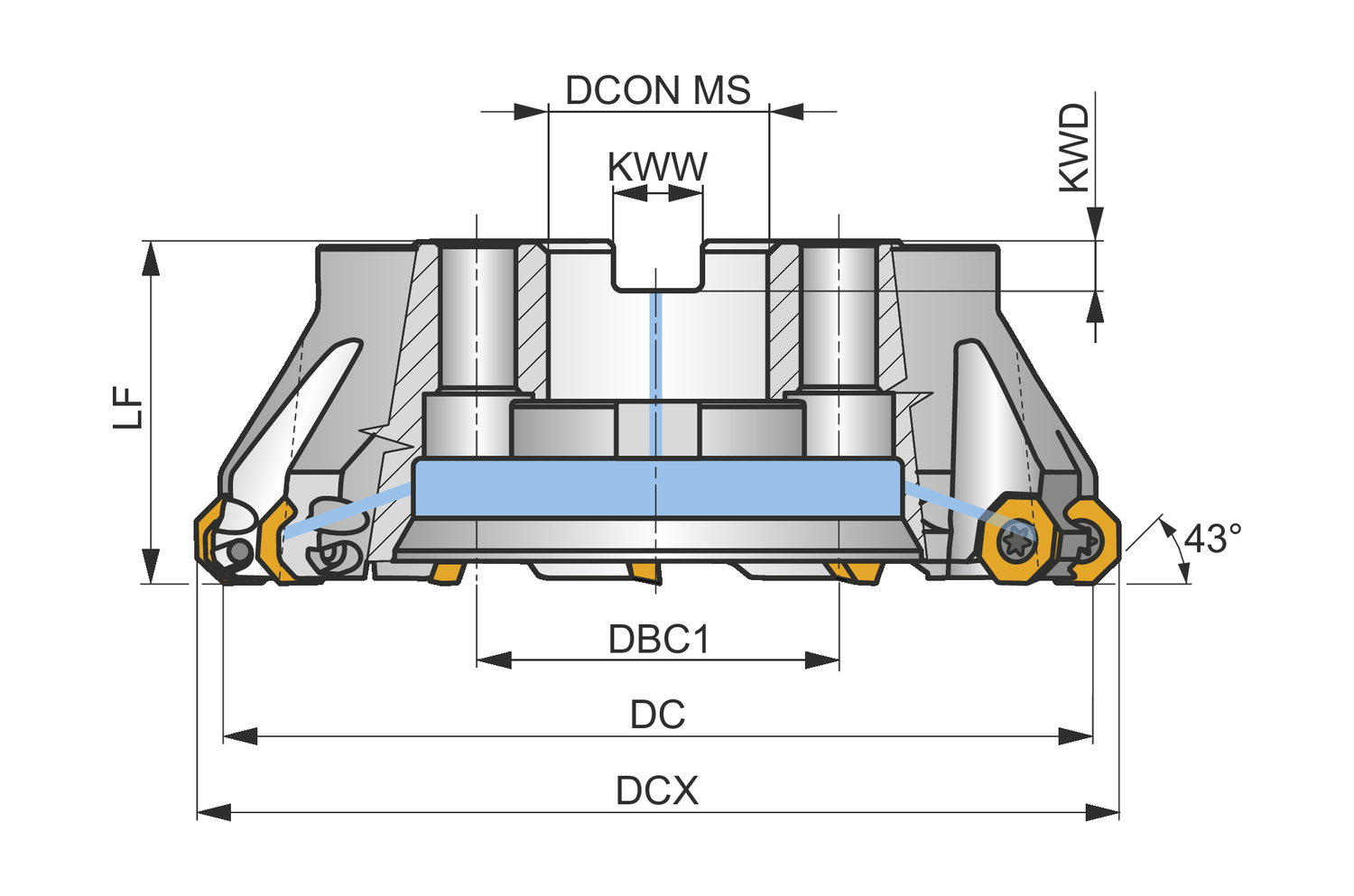

Axial rake angle (GAMP)
6
Clamping Type Code (MTP)
Screw clamping through hole
Connection diameter - inch (DCON MS)
2.5
Connection diameter - millimeter (DCON MS)
63.5
Coolant supply property (CSP)
1
Cutting diameter - inch (DC)
8
Cutting diameter - millimeter (DC)
203.2
Cutting diameter maximum - inch (DCX)
8.402
Cutting diameter maximum - millimeter (DCX)
213.4
Cutting pitch differential (CPDF)
1
Diameter bolt circle 1 - inch (DBC1)
4
Functional length - inch (LF)
2.48
Hand (Cutting direction)
Right
Keyway depth - inch (KWD)
0.559
Keyway width - inch (KWW)
1
Peripheral effective cutting edge count (ZEFP)
11
Radial rake angle (GAMF)
10
Rotational speed maximum (RPMX)
5300
Shank
Shell mill DIN 8030 C
Face mill with double positive geometry which utilises 11 off OEHT 0604AE.., REHT 1604M0.. or XEHT 0604AE.. single-sided inserts, cutting diameter 8.000 to maximum 8.402'' with 43° approach angle and 2.500'' connection bore according to DIN 8030-C, 2.480'' protrusion length, through coolant for face milling and chamfering with a maximum depth of cut of .130 (.390)''
