Pramet 80A06R-S45SN12Z-C 6758341 Shell Milling Cutter - Face
MODEL 6758341
$577.86 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
Axial rake angle (GAMP)
7.5
Clamping Type Code (MTP)
Screw clamping through hole

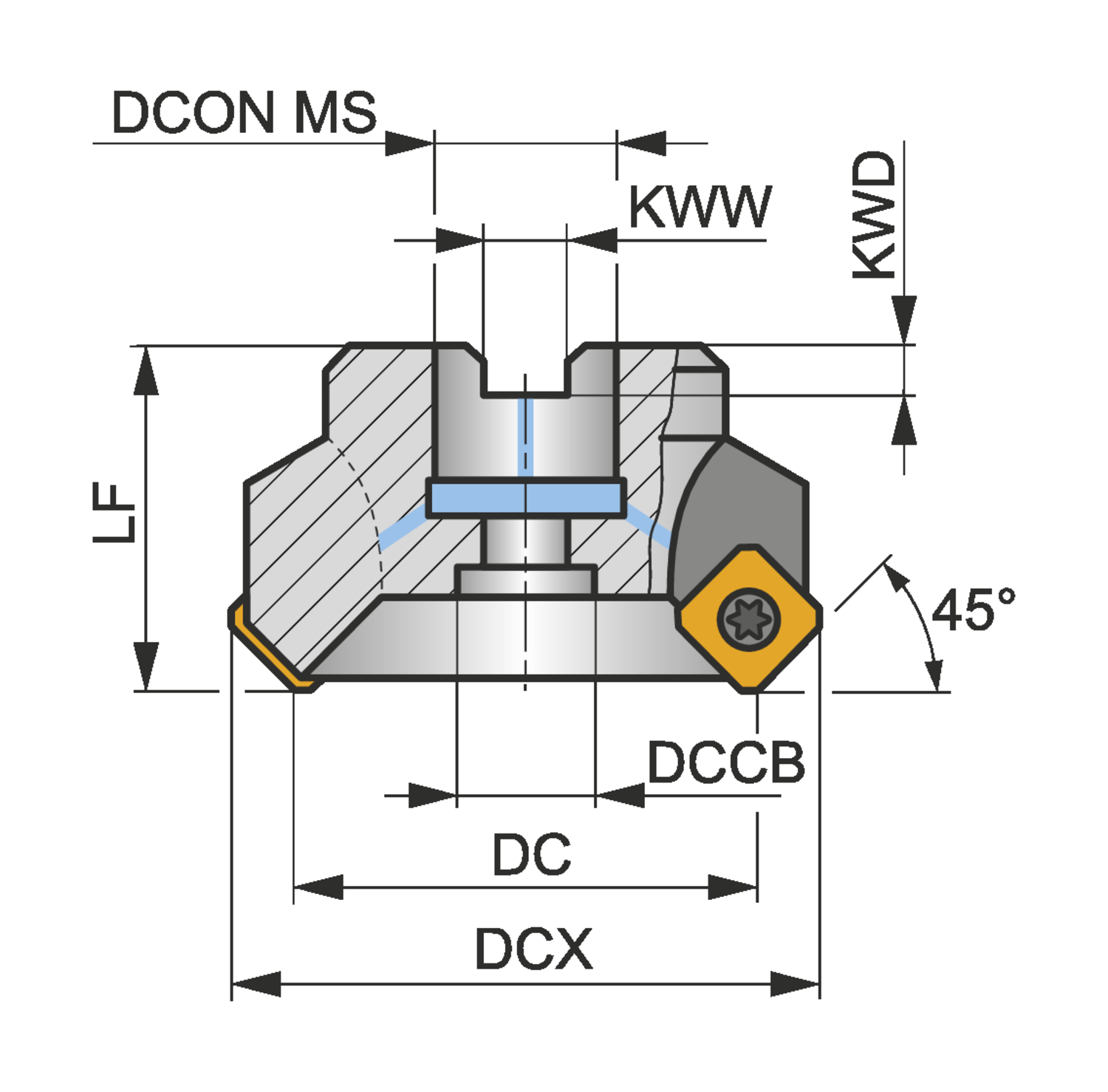

Connection diameter - inch (DCON MS)
1.063
Connection diameter - millimeter (DCON MS)
27
Coolant supply property (CSP)
1
Counterbore diameter connection bore - inch (DCCB)
1.496
Counterbore diameter connection bore - millimeter (DCCB)
38
Cutting diameter - inch (DC)
3.15
Cutting diameter - millimeter (DC)
80
Cutting diameter maximum - inch (DCX)
3.74
Cutting diameter maximum - millimeter (DCX)
95
Functional length - millimeter (LF)
50
Hand (Cutting direction)
Right
Insert index count (NOI)
6
Keyway depth - millimeter (KWD)
7
Keyway width - millimeter (KWW)
12.4
Peripheral effective cutting edge count (ZEFP)
6
Radial rake angle (GAMF)
-5.5
Rotational speed maximum (RPMX)
7700
Shank
Shell mill DIN 8030 A
Face mill with positve/negative geometry which utilises 6 off SNKT 1205AZ.. or SNMT 1205AZ.. double-sided inserts, cutting diameter 80 to maximum 95mm with 45° approach angle and 27mm connection bore according to DIN 8030-A, 50mm protrusion length, through coolant for face milling and chamfering with a maximum depth of cut of 6.5mm
