Pramet 80B5R-S90AP16D shell milling cutter body for square shoulder milling, 3.15 in (80 mm) cutting diameter, 90° approach angle, 5 inserts, 27 mm connection bore per DIN 8030-A, 50 mm overall length, right-hand, screw clamping through hole. Article 6757027.
MODEL 6757027
$676.57 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
Axial rake angle (GAMP)
6
Clamping Type Code (MTP)
Screw clamping through hole

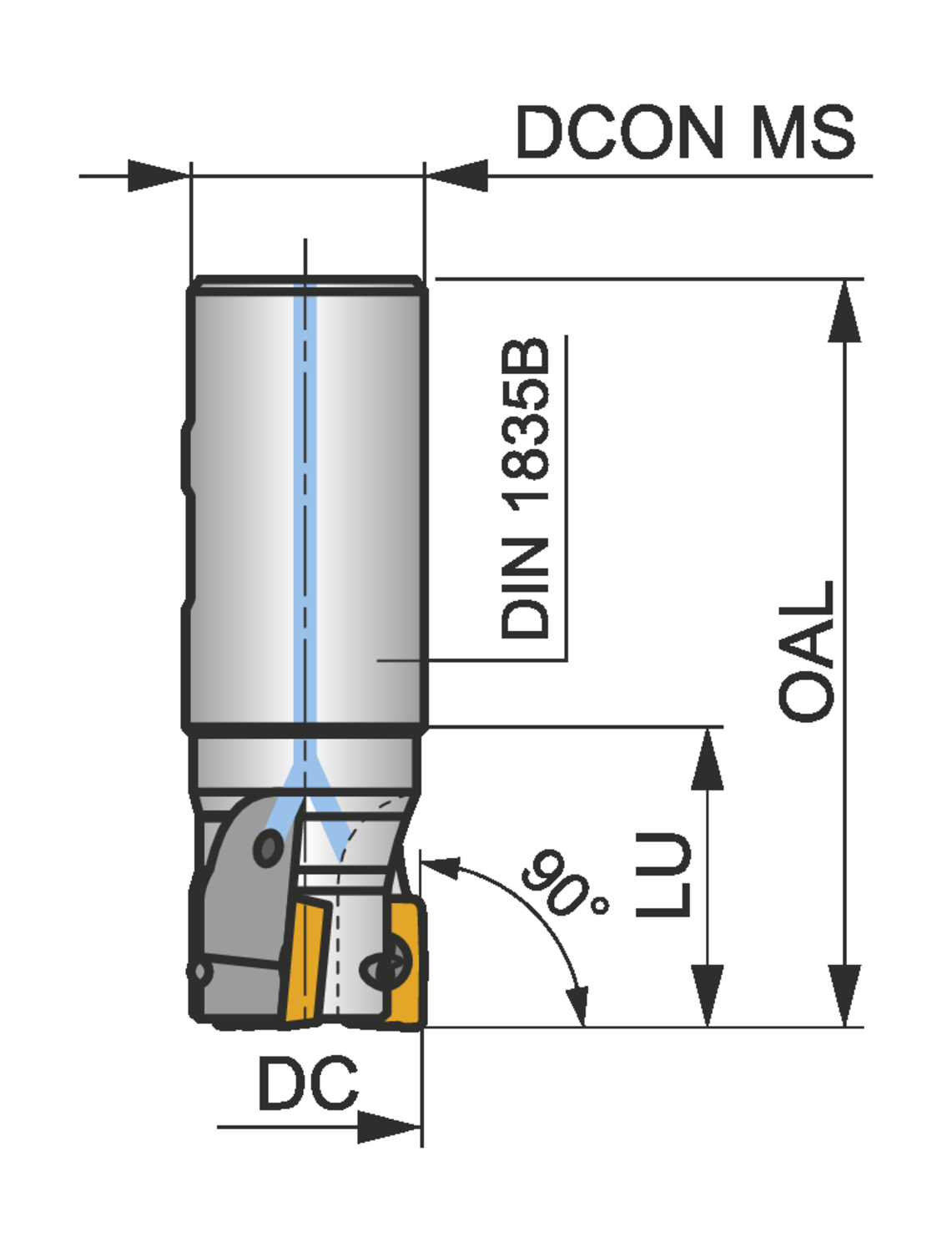

Connection diameter - inch (DCON MS)
1.063
Connection diameter - millimeter (DCON MS)
27
Counterbore diameter connection bore - inch (DCCB)
1.496
Counterbore diameter connection bore - millimeter (DCCB)
38
Cutting diameter - inch (DC)
3.15
Cutting diameter - millimeter (DC)
80
Cutting pitch differential (CPDF)
1
Functional length - millimeter (LF)
50
Hand (Cutting direction)
Right
Insert index count (NOI)
5
Keyway depth - millimeter (KWD)
7
Keyway width - millimeter (KWW)
12.4
Overall length - inch (OAL)
1.969
Overall length - millimeter (OAL)
50
Peripheral effective cutting edge count (ZEFP)
5
Radial rake angle (GAMF)
0
Rotational speed maximum (RPMX)
9400
Shank
Shell mill DIN 8030 B
Shoulder mill with positve/negative geometry which utilises 5 off APKT 1604.. or APET 1604.. single-sided inserts, cutting diameter 80mm with 90° approach angle and 27mm connection bore according to DIN 8030-B, 50mm protrusion length and differential pitch for shallow shoulder milling, shallow slot milling, ramping, helical milling, plunge milling and progressive plunge milling with a maximum depth of cut of 13.0mm
