Pramet 80J6R151X50-SSAP95-A helical end milling cutter for square shoulder milling, 3.15 in (80 mm) cutting diameter, 3.74 in (95 mm) maximum depth of cut, 6 flutes, 33 insert index count, right hand, arbor DIN 2080-1 connection size 50. Article 6757751.
MODEL 6757751
$1,847.72 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
Axial rake angle (GAMP)
7
Clamping Type Code (MTP)
Screw clamping through hole
Connection size code machine side (CZC MS)
50

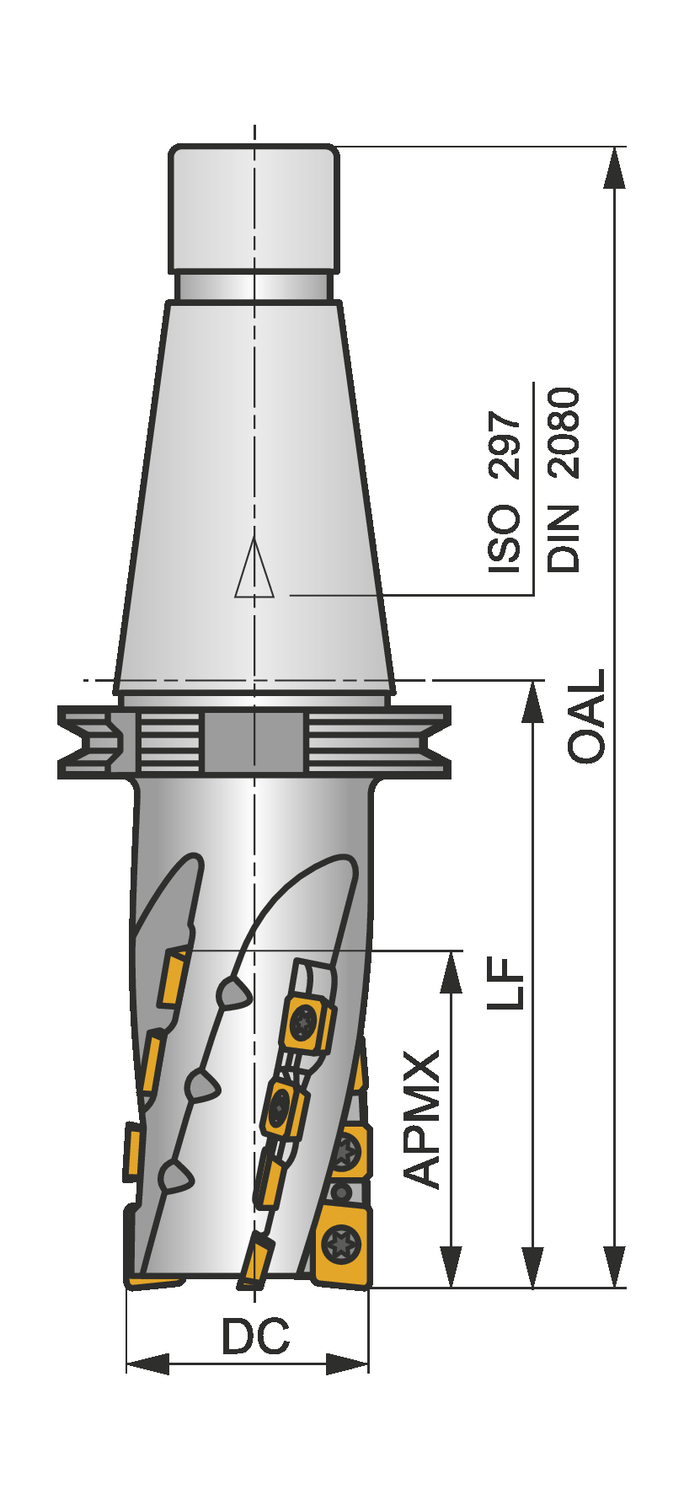

Cutting diameter - inch (DC)
3.15
Cutting diameter - millimeter (DC)
80
Depth of cut maximum - millimeter (APMX)
95
Flute count (NOF)
6
Functional length - millimeter (LF)
151
Hand (Cutting direction)
Right
Insert index count (NOI)
33
Overall length - inch (OAL)
10.827
Overall length - millimeter (OAL)
275
Radial rake angle (GAMF)
0
Rotational speed maximum (RPMX)
7500
Shank
Arbor DIN 2080-1
Shoulder mill with extended flute with positve/negative geometry which utilises 3 off APE.
1504.. and 30 SPE.
1204.. single-sided inserts, cutting diameter 80mm with 90° approach angle and BT 50 taper shank according to JIS B 6339, 95mm functional and 275mm overall length for deep shoulder milling and deep slot milling with a maximum depth of cut of 95mm
