6760248

Image for Illustration purposes only. Actual product may vary

Pramet 16E2R065A16-SZD07 6760248 End Milling Cutter - High Feed

MODEL 6760248

BRAND

Pramet

SKU

6064657

WEIGHT

0.478 lb

UOM

each

$253.97 Each

Prices are subject to change

FREE SHIPPING ON ORDERS OVER $100

Select Quantity

GET A QUOTE

Typically Ships in: 1 day

Returnable: Yes

Axial rake angle (GAMP)

8

Clamping Type Code (MTP)

Screw clamping through hole

Connection diameter - inch (DCON MS)

0.63

Connection diameter - millimeter (DCON MS)

16

Coolant supply property (CSP)

1

Cutting diameter - inch (DC)

0.236

Cutting diameter - millimeter (DC)

6

Cutting diameter maximum - inch (DCX)

0.63

Cutting diameter maximum - millimeter (DCX)

16

Hand (Cutting direction)

Right

Insert index count (NOI)

2

Overall length - inch (OAL)

5.709

Overall length - millimeter (OAL)

145

Peripheral effective cutting edge count (ZEFP)

2

Radial rake angle (GAMF)

-5

Rotational speed maximum (RPMX)

47400

Shank

Cylindrical shank DIN 1835A

Usable Length - millimeter (LU)

65

High feed cutter with positve/negative geometry which utilises 2 off ZDCW 0703.. single-sided inserts, cutting diameter 16mm with 16,0mm parallel shank according to DIN 1835A, 145mm overall length, through coolant for face milling

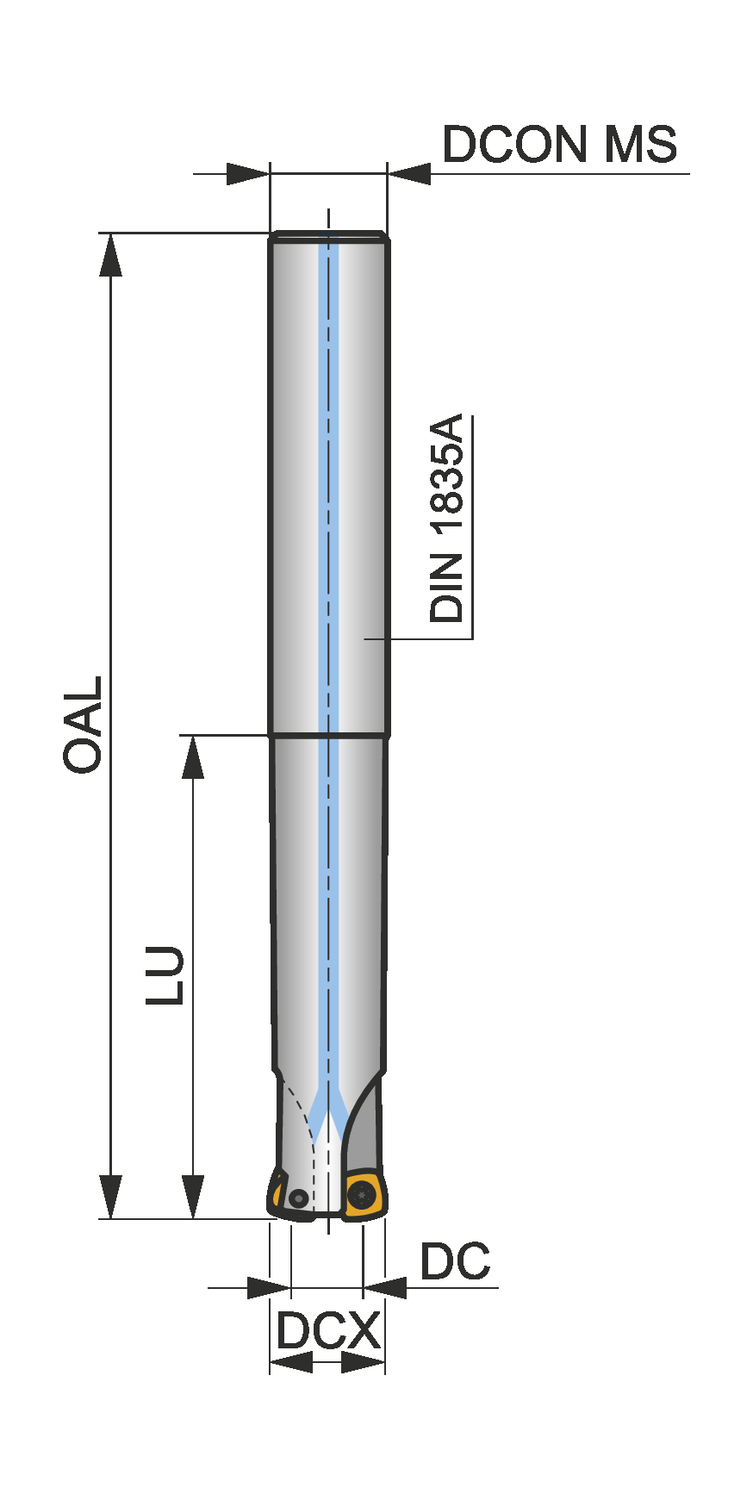

Line Drawing
