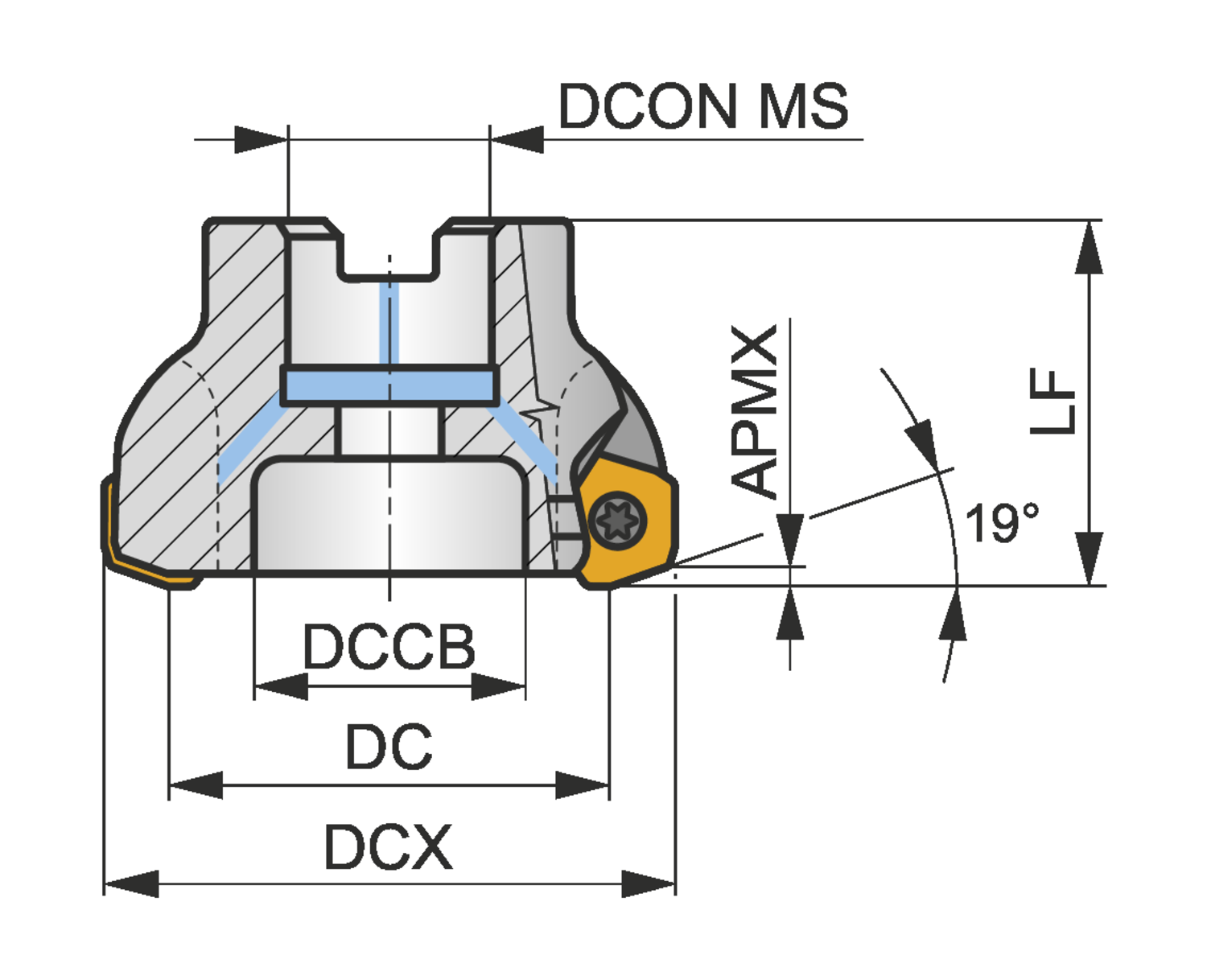

Pramet 250A05R-IS19PD09-C shell milling cutter body, high feed, 1.931 in cutting diameter, 0.079 in maximum depth of cut, 5 inserts, 19° approach angle, 0.75 in connection bore, DIN 8030-A, through coolant, right hand. Article 6792980.

Axial rake angle (GAMP)

10

Clamping Type Code (MTP)

Screw clamping through hole

Connection diameter - inch (DCON MS)

0.75

Connection diameter - millimeter (DCON MS)

19.1

Coolant supply property (CSP)

1

Counterbore diameter connection bore - inch (DCCB)

0.63

Counterbore diameter connection bore - millimeter (DCCB)

16

Cutting diameter - inch (DC)

1.931

Cutting diameter - millimeter (DC)

49

Cutting diameter maximum - inch (DCX)

2.5

Cutting diameter maximum - millimeter (DCX)

63.5

Functional length - inch (LF)

1.575

Hand (Cutting direction)

Right

Peripheral effective cutting edge count (ZEFP)

5

Radial rake angle (GAMF)

-1

Rotational speed maximum (RPMX)

9400

Shank

Shell mill DIN 8030 A
