Pramet 25E3R100A25-SZD07 high feed end milling cutter body, 0.591 in cutting diameter, 0.039 in maximum depth of cut, 3 inserts, 25 mm cylindrical shank DIN 1835A, 190 mm overall length, through coolant, right hand. Article 6760245.
MODEL 6760245
$284.82 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes

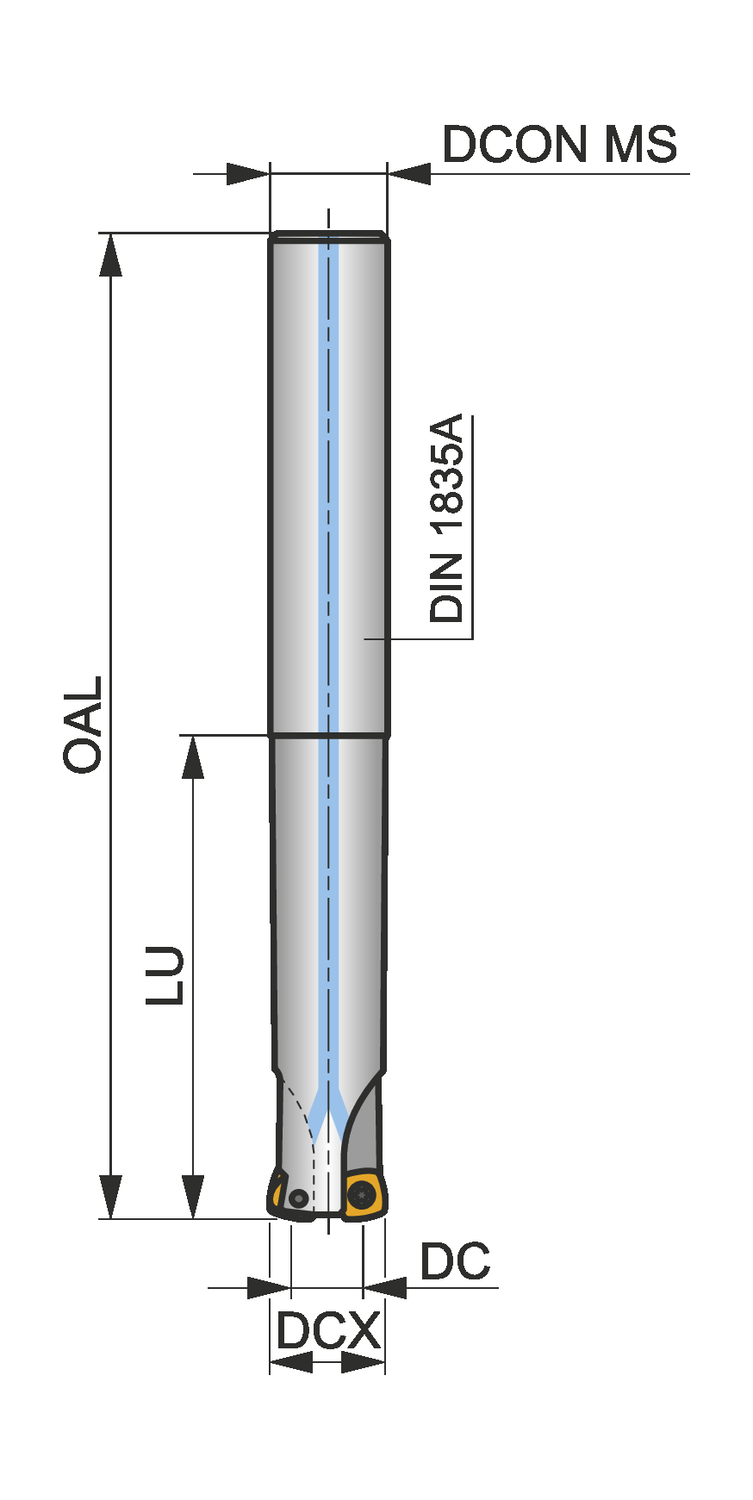

Axial rake angle (GAMP)
8
Clamping Type Code (MTP)
Screw clamping through hole
Connection diameter - inch (DCON MS)
0.984
Connection diameter - millimeter (DCON MS)
25
Coolant supply property (CSP)
1
Cutting diameter - inch (DC)
0.591
Cutting diameter - millimeter (DC)
15
Cutting diameter maximum - inch (DCX)
0.984
Cutting diameter maximum - millimeter (DCX)
25
Hand (Cutting direction)
Right
Insert index count (NOI)
3
Overall length - inch (OAL)
7.48
Overall length - millimeter (OAL)
190
Peripheral effective cutting edge count (ZEFP)
3
Radial rake angle (GAMF)
-5
Rotational speed maximum (RPMX)
37900
Shank
Cylindrical shank DIN 1835A
Usable Length - millimeter (LU)
100
High feed cutter with positve/negative geometry which utilises 3 off ZDCW 0703.. single-sided inserts, cutting diameter 25mm with 25, 0mm parallel shank according to DIN 1835A, 190mm overall length, through coolant for face milling
