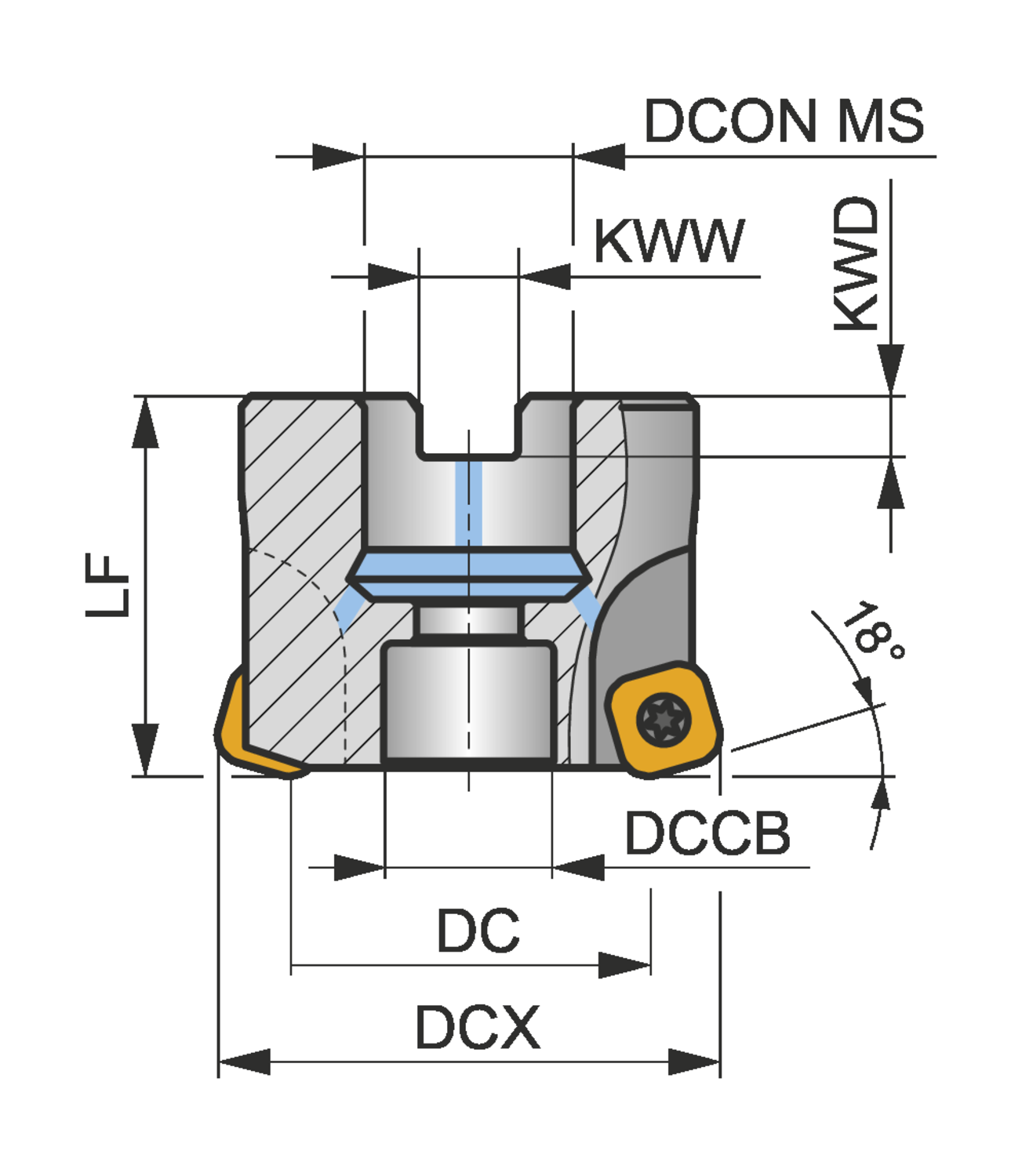

Pramet 400A08R-ISMOSN11-C shell milling cutter body for high-feed face milling, copy milling, and plunge milling. 3.453 in cutting diameter, 4 in maximum cutting diameter, 0.067 in maximum depth of cut, 8 inserts, 1.5 in connection bore per DIN 8030-C, 1.969 in functional length, through coolant, differential pitch, right-hand cutting. Article 7800658.

Axial rake angle (GAMP)

-10

Clamping Type Code (MTP)

Screw clamping through hole

Connection diameter - inch (DCON MS)

1.5

Connection diameter - millimeter (DCON MS)

38.1

Coolant supply property (CSP)

1

Counterbore diameter connection bore - inch (DCCB)

1.417

Counterbore diameter connection bore - millimeter (DCCB)

36

Cutting diameter - inch (DC)

3.453

Cutting diameter - millimeter (DC)

87.7

Cutting diameter maximum - inch (DCX)

4

Cutting diameter maximum - millimeter (DCX)

101.6

Cutting pitch differential (CPDF)

1

Functional length - inch (LF)

1.969

Hand (Cutting direction)

Right

Keyway depth - inch (KWD)

0.382

Keyway width - inch (KWW)

0.63

Peripheral effective cutting edge count (ZEFP)

8

Radial rake angle (GAMF)

-10

Rotational speed maximum (RPMX)

9800

Shank

Shell mill DIN 8030 A

Tool cutting edge angle (KAPR)

18
