Pramet 40A05R-SMOBN10-C shell milling cutter body, high feed, 1.315 in cutting diameter, 0.039 in maximum depth of cut, 5 inserts, 20° approach angle, 16 mm connection bore, DIN 8030-A, through coolant, differential pitch. Article 7464824.
MODEL 7464824
$483.26 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
Axial rake angle (GAMP)
-10
Clamping Type Code (MTP)
Screw clamping through hole

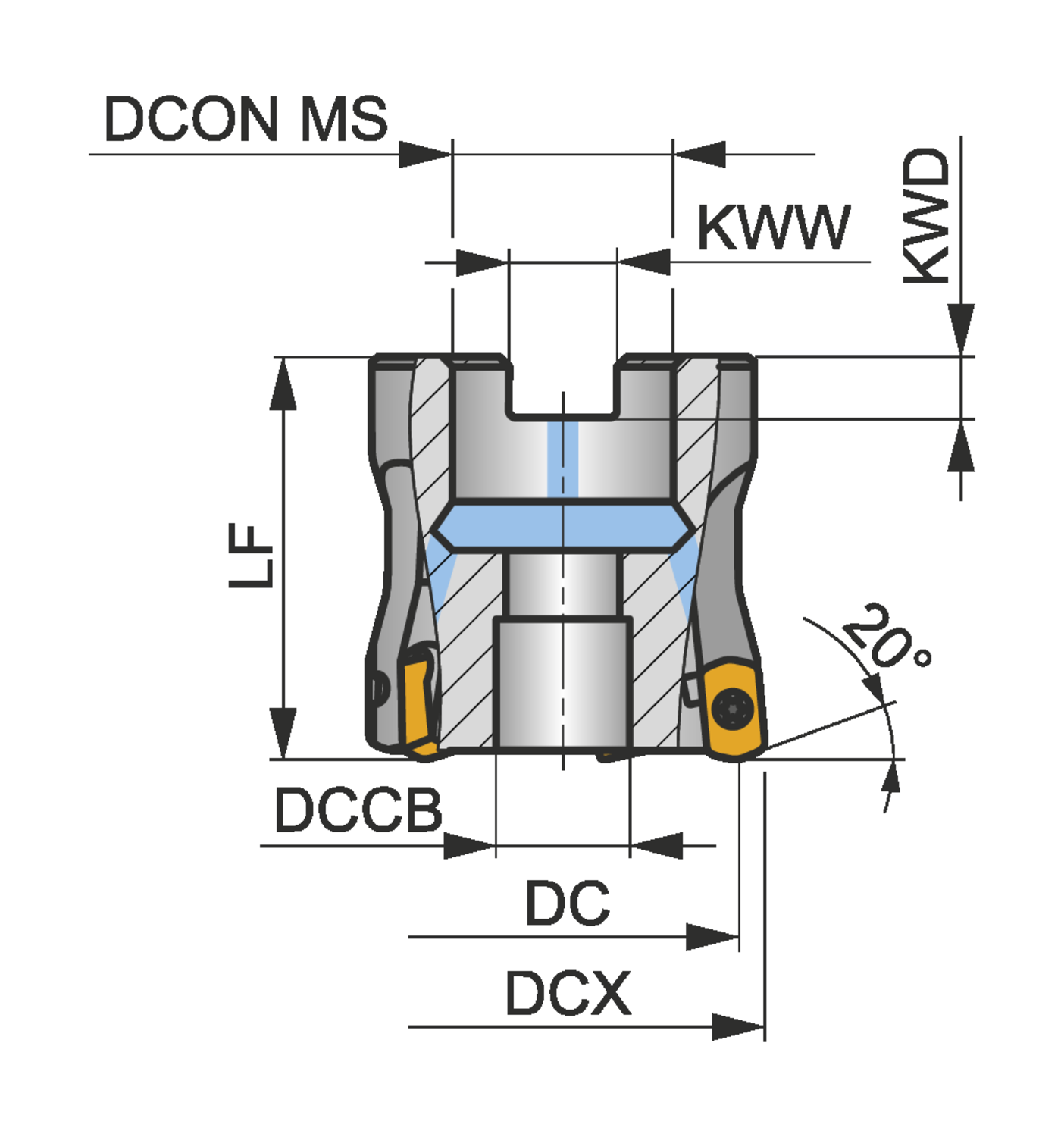

Connection diameter - inch (DCON MS)
0.63
Connection diameter - millimeter (DCON MS)
16
Coolant supply property (CSP)
1
Counterbore diameter connection bore - inch (DCCB)
0.555
Counterbore diameter connection bore - millimeter (DCCB)
14.1
Cutting diameter - inch (DC)
1.315
Cutting diameter - millimeter (DC)
33.4
Cutting diameter maximum - inch (DCX)
1.575
Cutting diameter maximum - millimeter (DCX)
40
Cutting pitch differential (CPDF)
1
Functional length - inch (LF)
1.575
Functional length - millimeter (LF)
40
Hand (Cutting direction)
Right
Insert index count (NOI)
5
Keyway depth - millimeter (KWD)
5.6
Keyway width - millimeter (KWW)
8.4
Peripheral effective cutting edge count (ZEFP)
5
Radial rake angle (GAMF)
-7
Rotational speed maximum (RPMX)
19600
Shank
Shell mill DIN 8030 A
Tool cutting edge angle (KAPR)
20
High feed cutter with positve/negative geometry which utilises 5 off BNGX 10T3.. or ANHX 10T3.. inserts, cutting diameter 40mm with 20° approach angle and 16mm connection bore according to DIN 8030-A, 40mm protrusion length, through coolant and differential pitch for face milling, copy milling, shallow shoulder milling, ramping, helical milling, plunge milling and progressive plunge milling with a maximum depth of cut of 1.0mm
