Pramet 16K3R050A16-CXP16 6761723 End Milling Cutter - Copy And Profile
MODEL 6761723
$417.46 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
Axial rake angle (GAMP)
-5
Clamping Type Code (MTP)
Top clamping

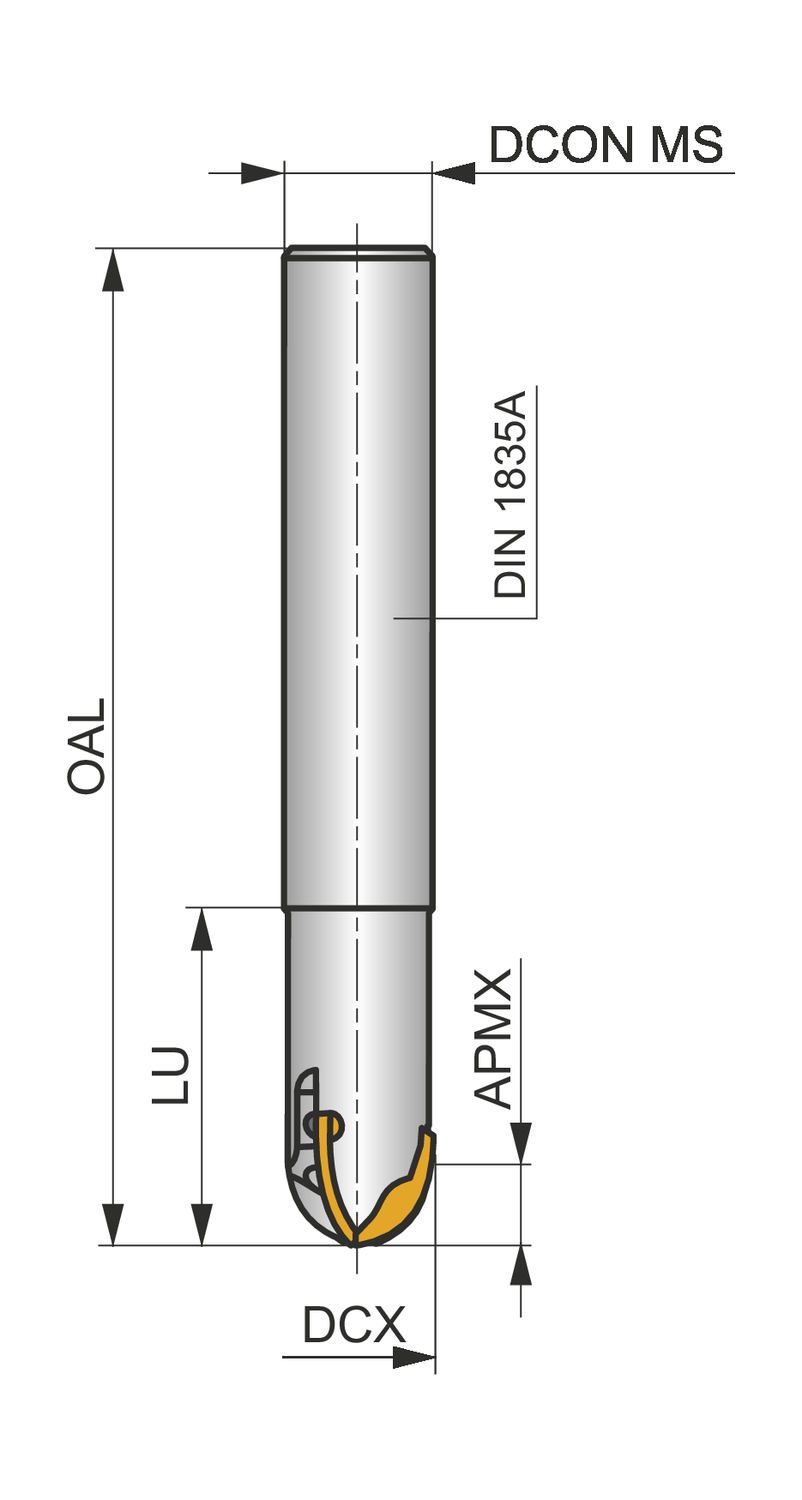

Connection diameter - inch (DCON MS)
0.63
Connection diameter - millimeter (DCON MS)
16
Cutting diameter maximum - inch (DCX)
0.63
Cutting diameter maximum - millimeter (DCX)
16
Depth of cut maximum - millimeter (APMX)
8
Insert group used in the tool
XP 16
Insert index count (NOI)
3
Not recomended
Finishing - very good surface quality
Overall length - inch (OAL)
7.874
Overall length - millimeter (OAL)
200
Peripheral effective cutting edge count (ZEFP)
3
Possible use
Medium machining
Radial rake angle (GAMF)
0
Rotational speed maximum (RPMX)
22600
Shank
Cylindrical shank DIN 1835A
Usable Length - millimeter (LU)
50
Copy end mill with double negative geometry which utilises 3 off XP 16.. single-sided inserts, cutting diameter 16mm with 16mm parallel shank according to DIN 1835A, 50mm functional and 200mm overall length for copy milling with a maximum depth of cut of 8mm
