Pramet 16K3R060B20-CXP16 6761727 End Milling Cutter - Copy And Profile
MODEL 6761727
$417.46 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes

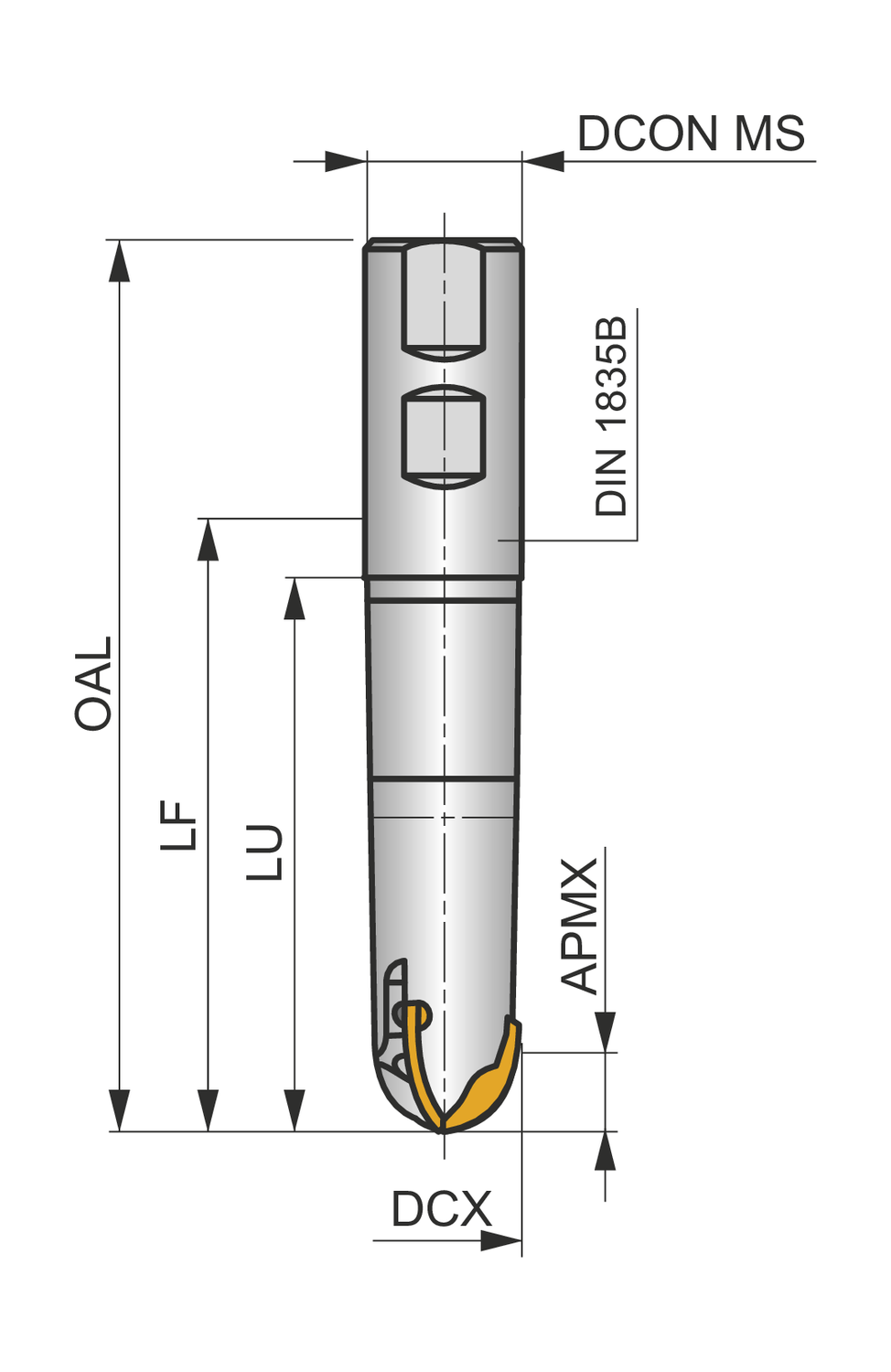

Axial rake angle (GAMP)
-5
Clamping Type Code (MTP)
Top clamping
Connection diameter - inch (DCON MS)
0.787
Connection diameter - millimeter (DCON MS)
20
Cutting diameter maximum - inch (DCX)
0.63
Cutting diameter maximum - millimeter (DCX)
16
Depth of cut maximum - millimeter (APMX)
8
Functional length - millimeter (LF)
86.5
Insert group used in the tool
XP 16
Insert index count (NOI)
3
Not recomended
Finishing - very good surface quality
Overall length - inch (OAL)
4.37
Overall length - millimeter (OAL)
111
Peripheral effective cutting edge count (ZEFP)
3
Possible use
Medium machining
Radial rake angle (GAMF)
0
Rotational speed maximum (RPMX)
22600
Shank
Weldon shank DIN 1835B
Usable Length - millimeter (LU)
60
Copy end mill with double negative geometry which utilises 3 off XP 16.. single-sided inserts, cutting diameter 16mm with 20mm Weldon shank according to DIN 1835B, 60mm functional and 111mm overall length for copy milling with a maximum depth of cut of 8mm
