Pramet 25K3R045M12-CXP25 6761733 Modular Head For Copy And Profile Milling
MODEL 6761733
$491.49 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes

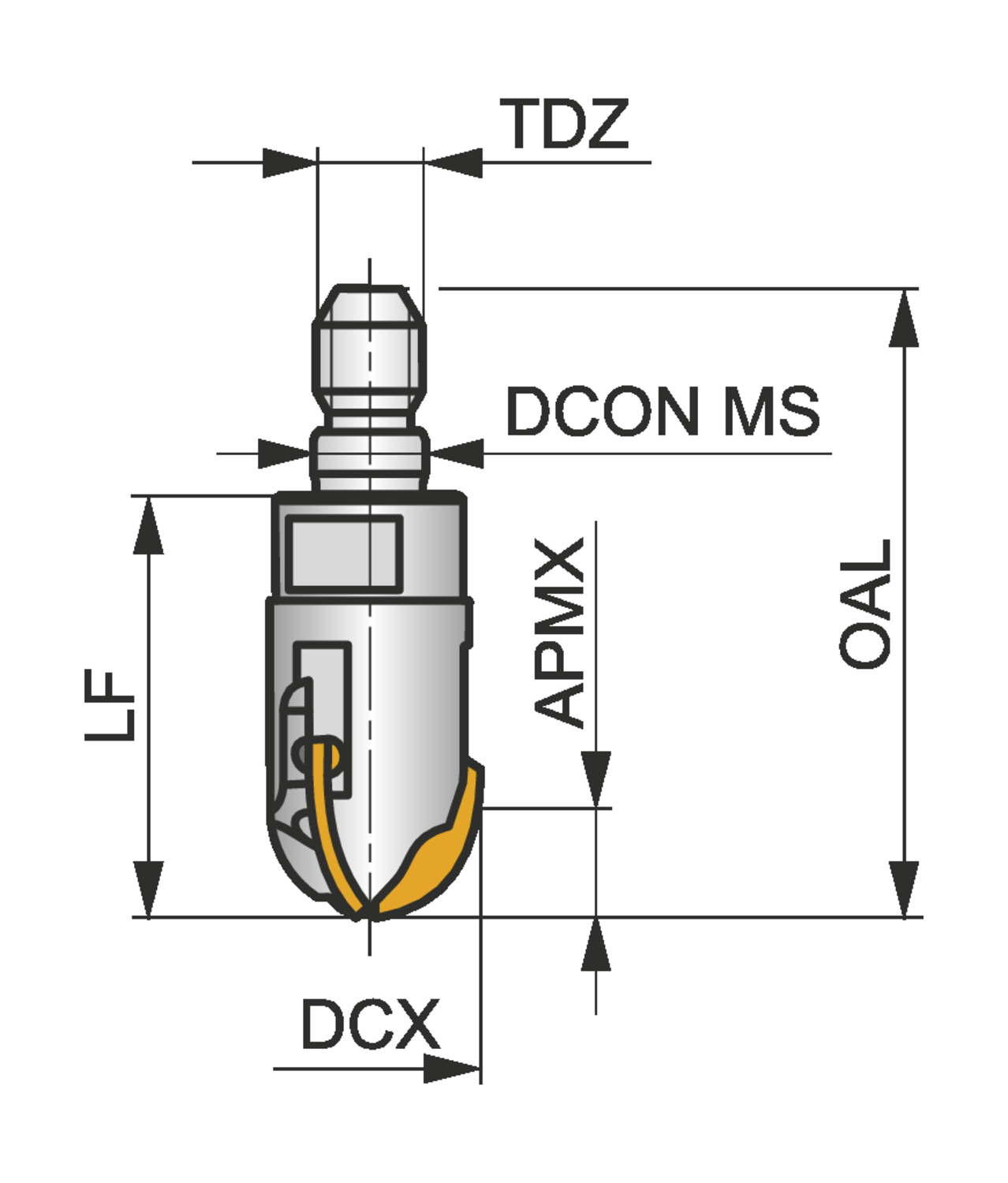

Axial rake angle (GAMP)
-5
Clamping Type Code (MTP)
Top clamping
Connection diameter - inch (DCON MS)
0.492
Connection diameter - millimeter (DCON MS)
12.5
Cutting diameter maximum - inch (DCX)
0.984
Cutting diameter maximum - millimeter (DCX)
25
Depth of cut maximum - millimeter (APMX)
12.5
Functional length - millimeter (LF)
45
Insert group used in the tool
XP 25
Insert index count (NOI)
3
Not recomended
Finishing - very good surface quality
Peripheral effective cutting edge count (ZEFP)
3
Possible use
Medium machining
Radial rake angle (GAMF)
0
Shank
Threaded coupling
Thread diameter size (TDZ)
M12
Copy end mill with double negative geometry which utilises 3 off XP 25.. single-sided inserts, cutting diameter 25mm with M12 threaded shank for standard modular tool-holders, 45mm protrusion length for copy milling with a maximum depth of cut of 12, 5mm
