Pramet 25K3R080B25-CXP25 6761734 End Milling Cutter - Copy And Profile
MODEL 6761734
$491.49 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes

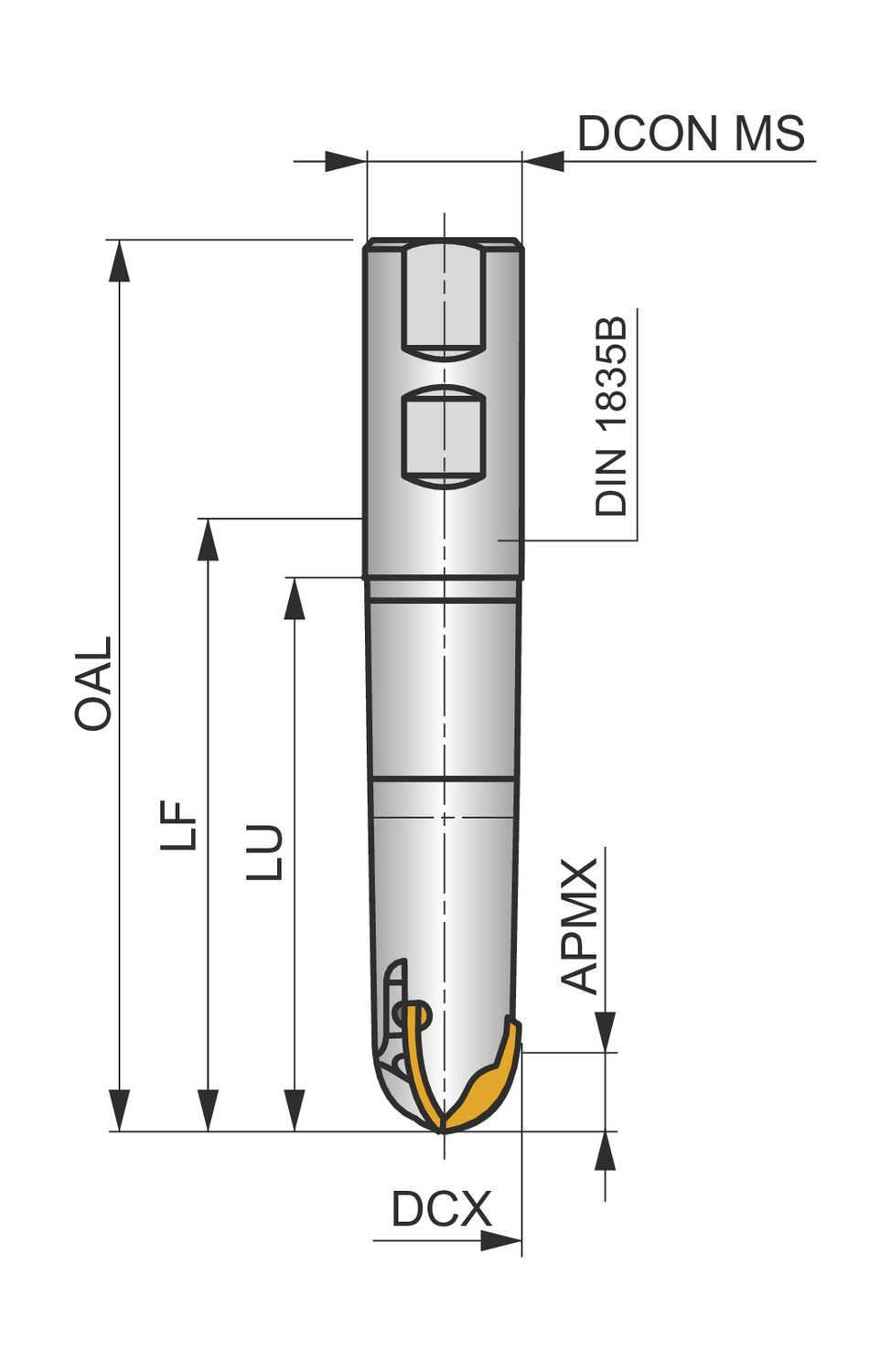

Axial rake angle (GAMP)
-5
Clamping Type Code (MTP)
Top clamping
Connection diameter - inch (DCON MS)
0.984
Connection diameter - millimeter (DCON MS)
25
Cutting diameter maximum - inch (DCX)
0.984
Cutting diameter maximum - millimeter (DCX)
25
Depth of cut maximum - millimeter (APMX)
12.5
Functional length - millimeter (LF)
105
Insert group used in the tool
XP 25
Insert index count (NOI)
3
Not recomended
Finishing - very good surface quality
Overall length - inch (OAL)
5.394
Overall length - millimeter (OAL)
137
Peripheral effective cutting edge count (ZEFP)
3
Possible use
Medium machining
Radial rake angle (GAMF)
0
Rotational speed maximum (RPMX)
20000
Shank
Weldon shank DIN 1835B
Usable Length - millimeter (LU)
80
Copy end mill with double negative geometry which utilises 3 off XP 25.. single-sided inserts, cutting diameter 25mm with 25mm Weldon shank according to DIN 1835B, 80mm functional and 137mm overall length for copy milling with a maximum depth of cut of 12,5mm
