Pramet 50J5R065E04-CSD12X55 helical end milling cutter, square shoulder, 1.969 in (50 mm) cutting diameter, 2.161 in (54.9 mm) maximum depth of cut, 5 flutes, 25 inserts, Morse shank DIN 228-1, right hand, 167.5 mm overall length. Article 6761741.

Name: Pramet 50J5R065E04-CSD12X55 helical end milling cutter, square shoulder, 1.969 in (50 mm) cutting diameter, 2.161 in (54.9 mm) maximum depth of cut, 5
Brand: Pramet
Price: 1703.76 USD
Availability: InStock

MODEL 6761741

BRAND

Pramet

SKU

6064798

WEIGHT

2.959 lb

UOM

each

$1,703.76 Each

Prices are subject to change

FREE SHIPPING ON ORDERS OVER $100

Select Quantity

GET A QUOTE

Typically Ships in: 1 day

Returnable: Yes

Axial rake angle (GAMP)

Clamping Type Code (MTP)

Top clamping

Connection size code machine side (CZC MS)

Cooling (CSP)

Cutting diameter - inch (DC)

1.969

Cutting diameter - millimeter (DC)

Depth of cut maximum - millimeter (APMX)

54.9

Flute count (NOF)

Functional length - millimeter (LF)

Hand (Cutting direction)

Right

Insert index count (NOI)

Overall length - inch (OAL)

6.594

Overall length - millimeter (OAL)

167.5

Peripheral effective cutting edge count (ZEFP)

Radial rake angle (GAMF)

-5

Rotational speed maximum (RPMX)

3200

Shank

Morse shank DIN 228-1

Shoulder mill with extended flute with positve/negative geometry which utilises 25 off SDGX 1205.. or SDMX 1205.. single-sided inserts, cutting diameter 50mm with 90° approach angle and MT 4 morse taper shank according to DIN 228-1A, 167.5mm overall length for deep shoulder milling and deep slot milling with a maximum depth of cut of 54,9mm

When will I be charged for my order? Ordering Do you provide credit terms? Ordering Can I get a discounted price? I am a reseller / government entity. Ordering What is the return/warranty policy? Ordering Can it be shipped today? Ordering Does “Usually ships in 24 hours” mean it’s in stock? Ordering Read full FAQ All FAQs

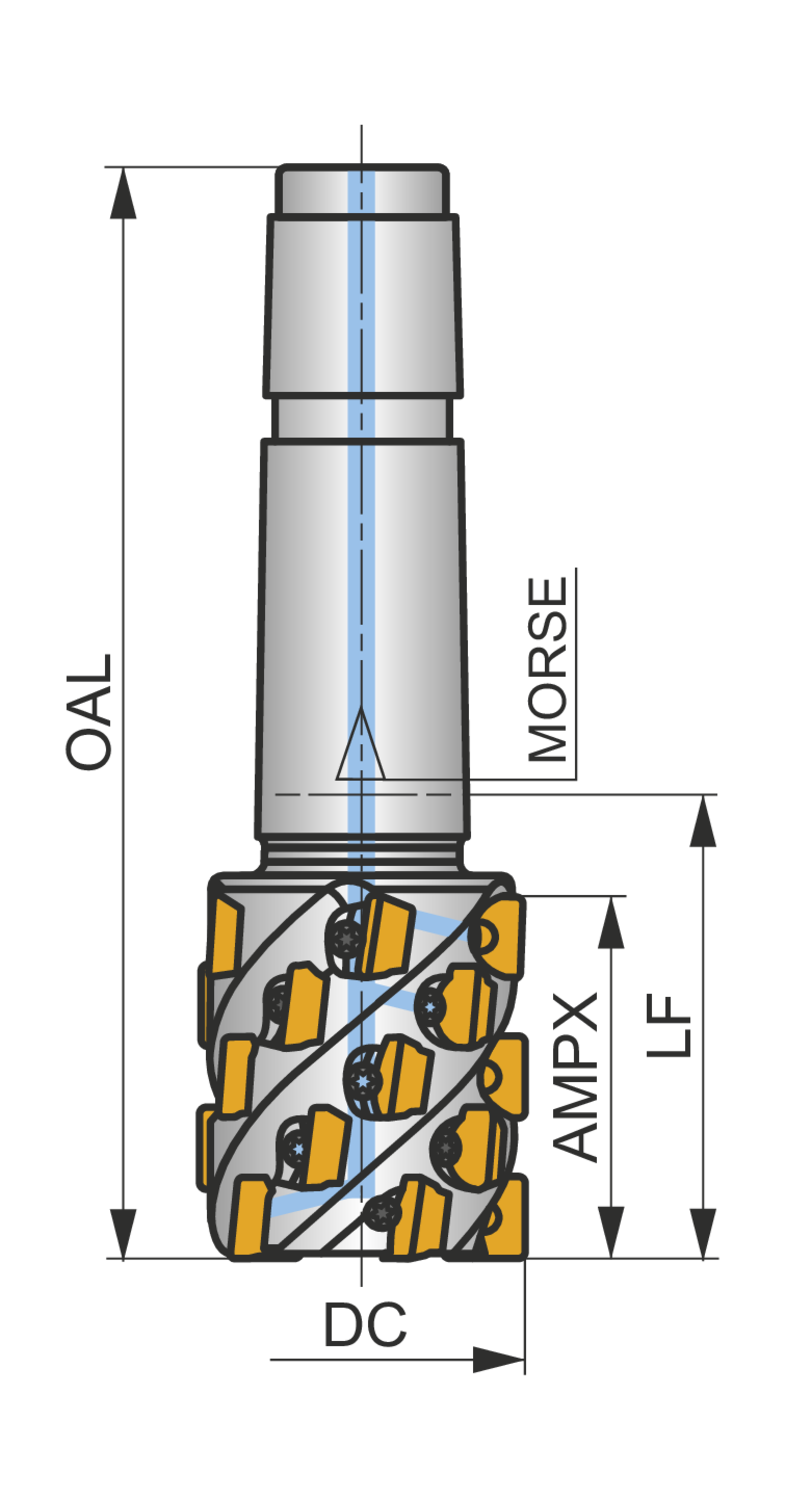

Line Drawing PNG
