Pramet 802D-0812-162-S100 indexable drill body, 2 x D, 0.812 in cutting diameter, 1.624 in maximum depth of cut, 1.000 in cylindrical shank ISO 9766, through coolant, screw clamping through hole, monoblock design. Article 6801098.

Name: Pramet 802D-0812-162-S100 indexable drill body, 2 x D, 0.812 in cutting diameter, 1.624 in maximum depth of cut, 1.000 in cylindrical shank ISO 9766,
Brand: Pramet
Price: 484.29 USD
Availability: InStock

MODEL 6801098

BRAND

Pramet

SKU

6064834

WEIGHT

0.763 lb

UOM

each

$484.29 Each

Prices are subject to change

FREE SHIPPING ON ORDERS OVER $100

Select Quantity

GET A QUOTE

Typically Ships in: 1 day

Returnable: Yes

Adjustment limit maximum - inch (ADJLX)

0.019

Adjustment limit minimum - inch (ADJLN)

0.004

Clamping Type Code (MTP)

Screw clamping through hole

Connection diameter - inch (DCON MS)

Connection diameter - millimeter (DCON MS)

25.4

Connection diameter tolerance machine side (TCDCONMS)

Cooling (CSP)

Cutting diameter - inch (DC)

0.812

Cutting diameter - millimeter (DC)

20.6

Depth of cut maximum - inch (APMX)

1.624

Overall length - inch (OAL)

4.85

Overall length - millimeter (OAL)

123

Protruding length - inch (LPR)

2.606

Shank

Cylindrical Shank ISO 9766

Shank length - inch (LS)

2.244

Usable length (ULDR)

Usable Length - inch (LU)

1.831

Indexable insert drill which utilises an XPET 0602.. insert in the central pocket and a SCET 0602.. insert in the peripheral pocket, cutting diameter 0.812'', with a 1.000'' cylindrical shank with flat according to ISO 9766 and through coolant for maximum drilling depths up to 2 x D

When will I be charged for my order? Ordering Do you provide credit terms? Ordering Can I get a discounted price? I am a reseller / government entity. Ordering What is the return/warranty policy? Ordering Can it be shipped today? Ordering Does “Usually ships in 24 hours” mean it’s in stock? Ordering Read full FAQ All FAQs

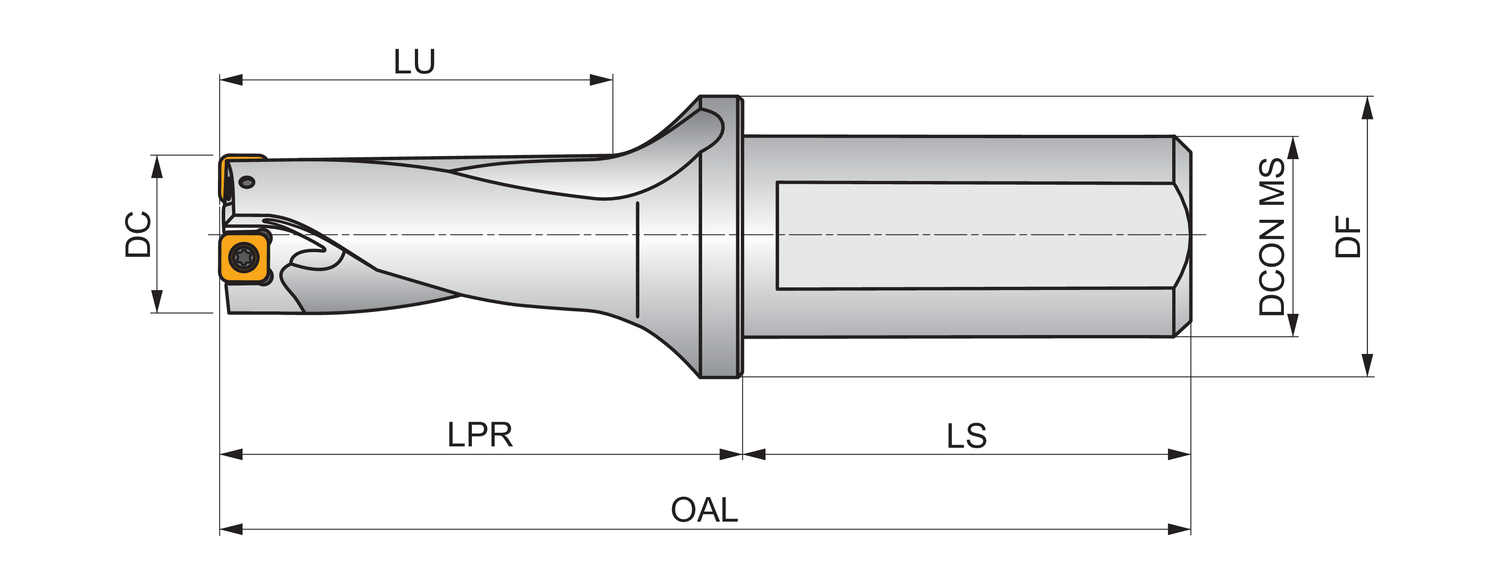

Line Drawing PNG
