Pramet 802D-23-46-S25 6820772 indexable drill body, 2 x D, 0.906 in cutting diameter, 1.811 in maximum depth of cut, 25 mm cylindrical shank ISO 9766, through coolant, screw clamping, monoblock design.
MODEL 6820772
$519.25 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes

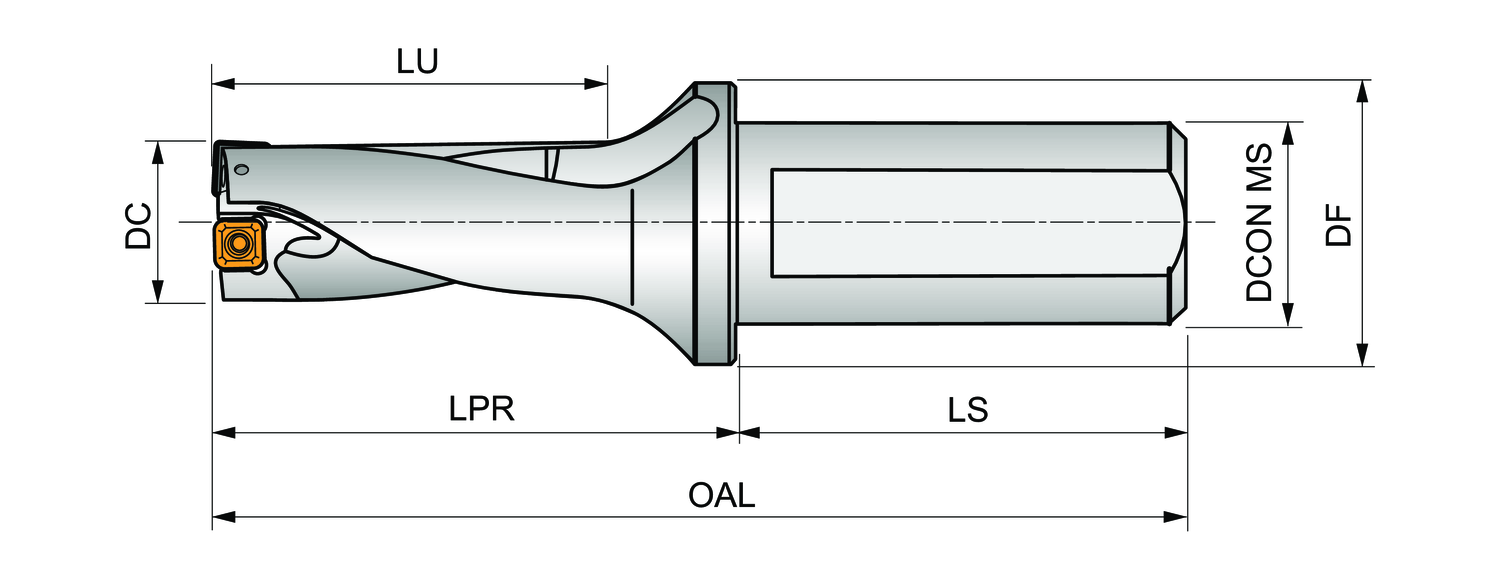

Adjustment limit maximum - millimeter (ADJLX)
0.5
Adjustment limit minimum - millimeter (ADJLN)
0.35
Clamping Type Code (MTP)
Screw clamping through hole
Connection diameter - inch (DCON MS)
0.984
Connection diameter - millimeter (DCON MS)
25
Connection diameter tolerance machine side (TCDCONMS)
h6
Coolant supply property (CSP)
1
Cutting diameter - inch (DC)
0.906
Cutting diameter - millimeter (DC)
23
Cutting edge count (CEDC)
1
Depth of cut maximum - inch (APMX)
1.811
Depth of cut maximum - millimeter (APMX)
46
Flange diameter - millimeter (DF)
35
Overall length - inch (OAL)
5.394
Overall length - millimeter (OAL)
137
Protruding length - inch (LPR)
3.189
Protruding length - millimeter (LPR)
81
Shank
Cylindrical Shank ISO 9766
Shank length - inch (LS)
2.2047
Shank length - millimeter (LS)
56
Usable length (ULDR)
2
Usable Length - inch (LU)
2.1457
Usable Length - millimeter (LU)
545
Indexable insert drill which utilises an XPET 0703.. insert in the central pocket and a SCET 0703.. insert in the peripheral pocket, cutting diameter 23mm in combination with EP253253, suited for a radial adjustment of -0.35 to +0.50mm, with a 25mm cylindrical shank with flat according to ISO 9766 and through coolant for maximum drilling depths up to 2 x D
