Image for Illustration purposes only. Actual product may vary
Pramet 805D-30-150-S32 6759020 Indexable Drill 5 x D
MODEL 6759020
$665.26 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes

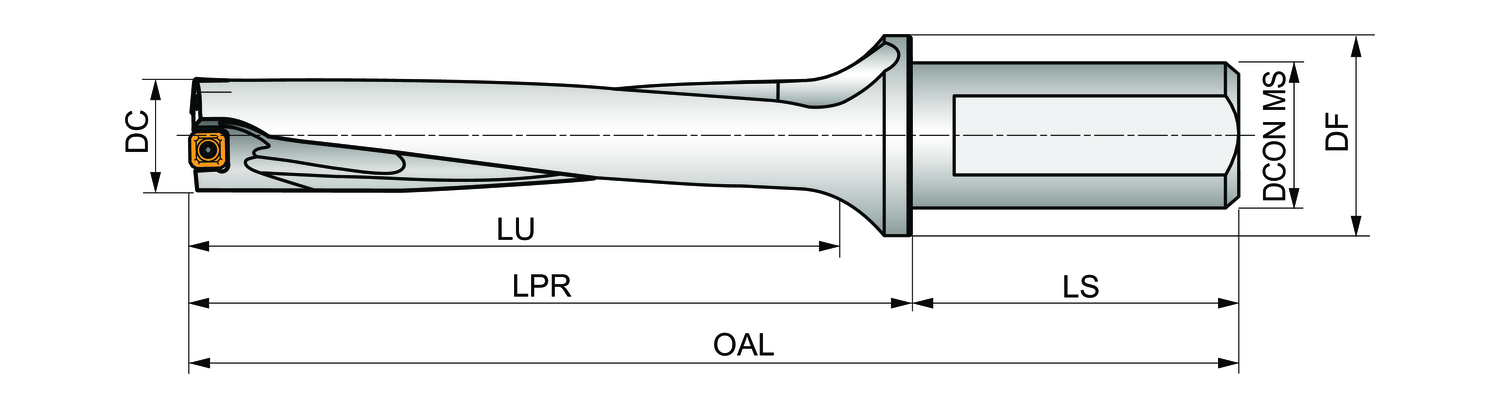

Adjustment limit maximum - millimeter (ADJLX)
0.5
Adjustment limit minimum - millimeter (ADJLN)
0.15
Clamping Type Code (MTP)
Screw clamping through hole
Connection diameter - inch (DCON MS)
1.26
Connection diameter - millimeter (DCON MS)
32
Connection diameter tolerance machine side (TCDCONMS)
h6
Coolant supply property (CSP)
1
Cutting diameter - inch (DC)
1.181
Cutting diameter - millimeter (DC)
30
Cutting edge count (CEDC)
1
Depth of cut maximum - inch (APMX)
5.9055
Depth of cut maximum - millimeter (APMX)
150
Flange diameter - millimeter (DF)
42
Overall length - inch (OAL)
9.252
Overall length - millimeter (OAL)
235
Protruding length - inch (LPR)
6.8898
Protruding length - millimeter (LPR)
175
Shank
Cylindrical Shank ISO 9766
Shank length - inch (LS)
2.3622
Shank length - millimeter (LS)
60
Usable length (ULDR)
5
Usable Length - inch (LU)
6.2008
Usable Length - millimeter (LU)
157.5
Indexable insert drill which utilises an XPET 0903.. insert in the central pocket and a SCET 09T3.. insert in the peripheral pocket, cutting diameter 30mm, with a 32mm cylindrical shank with flat according to ISO 9766 and through coolant for maximum drilling depths up to 5 x D
