Pramet EP253253 indexable drill adjustment sleeve, 2.087 in (53 mm) body diameter, 1.26 in (32 mm) connection diameter, 0.9843 in (25 mm) workpiece-side connection, 1.89 in collet length. Article 6758513.

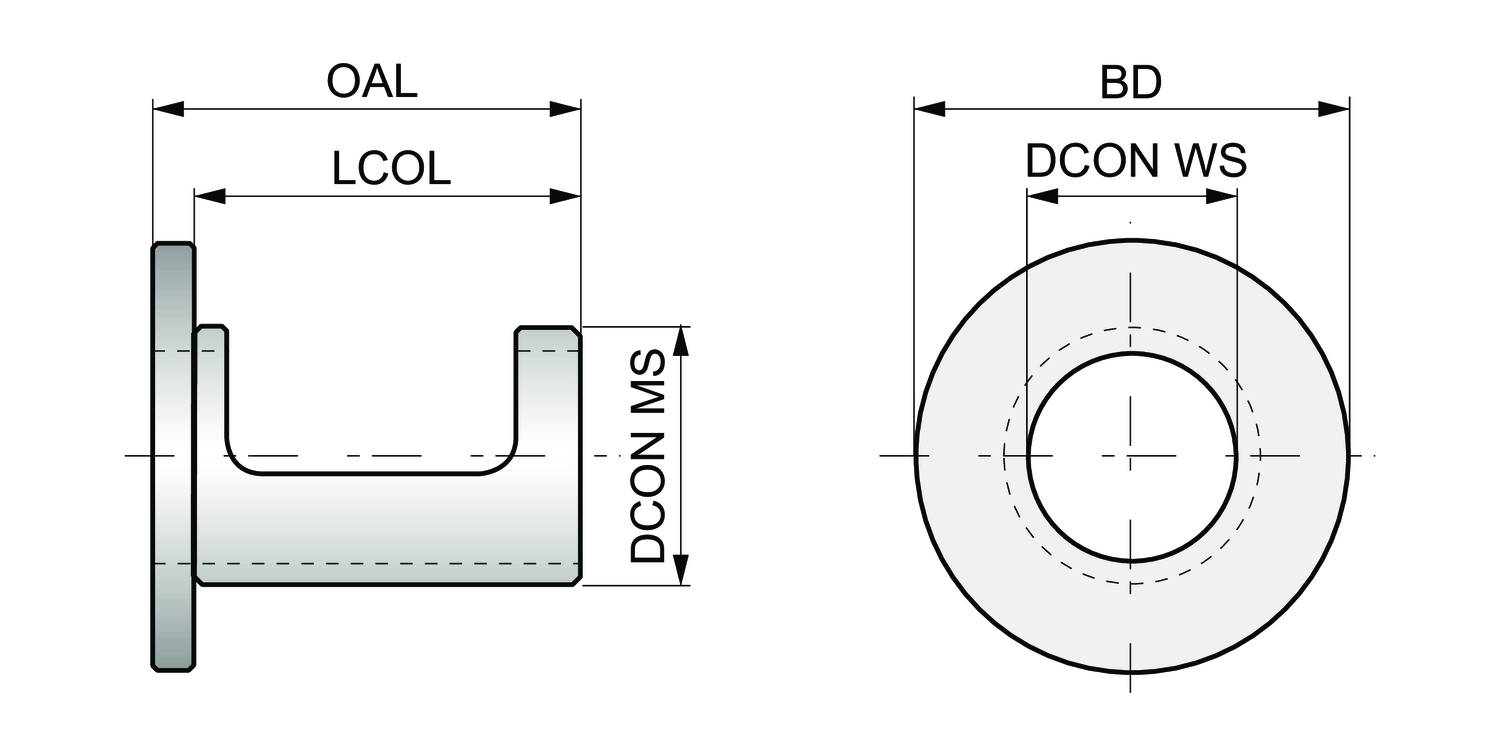

Body diameter - inch (BD)

2.087

Body diameter - millimeter (BD)

53

Connection diameter - inch (DCON MS)

1.26

Connection diameter - millimeter (DCON MS)

32

Connection diameter workpiece side - millimeter (DCON WS)

25

Overall length - inch (OAL)

2.087

Overall length - millimeter (OAL)

53
