Image for Illustration purposes only. Actual product may vary
Pramet A 042 012 6760571 Boring System - Micro Boring Head
MODEL 6760571
$750.60 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes

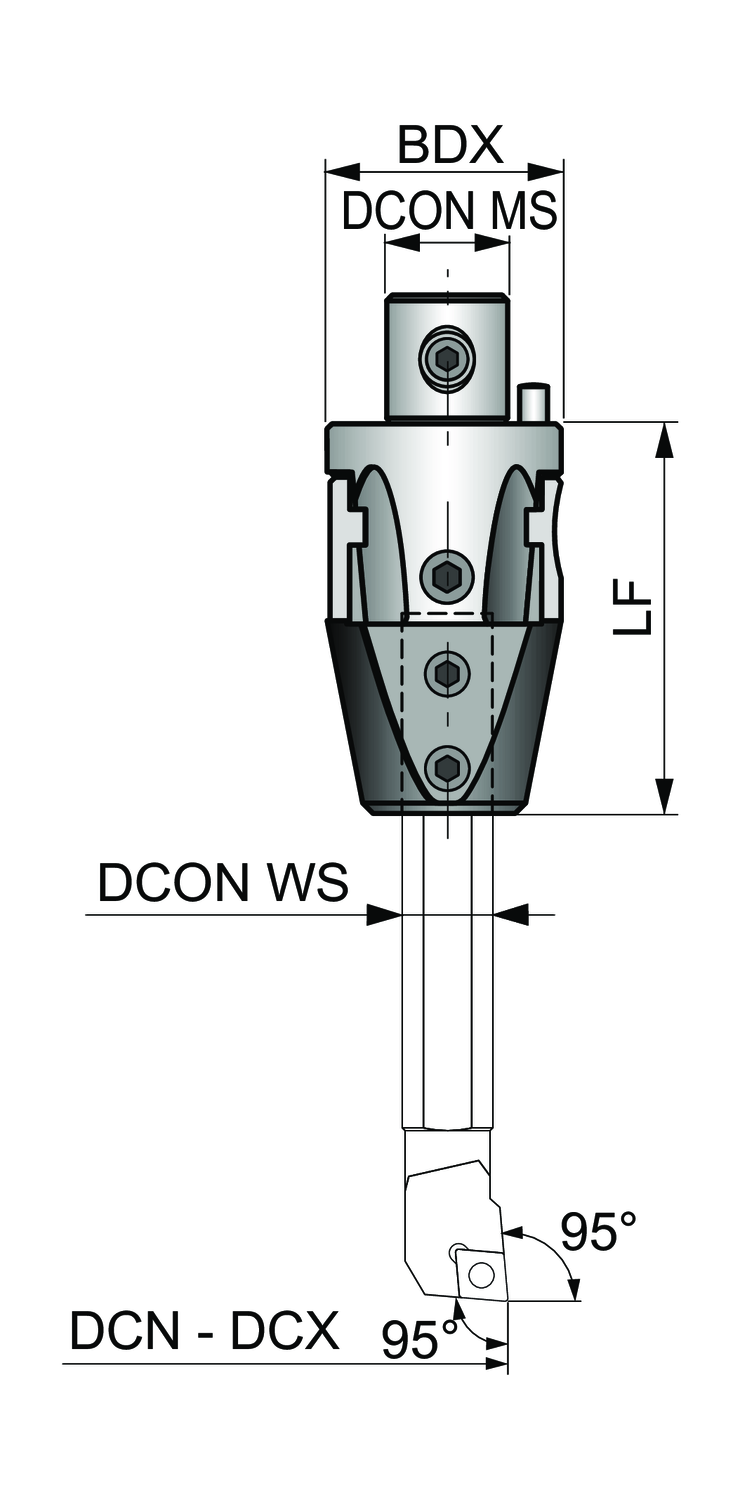

Body diameter maximum - millimeter (BDX)
42
Body length - millimeter (LB)
70
Clamping Type Code (MTP)
Screw clamping through hole
Connection diameter - inch (DCON MS)
0.945
Connection diameter - millimeter (DCON MS)
24
Connection diameter workpiece side - millimeter (DCON WS)
12
Connection size code machine side (CZC MS)
42
Cutting diameter maximum - inch (DCX)
1.339
Cutting diameter maximum - millimeter (DCX)
34
Cutting diameter minimum - millimeter (DCN)
16
Cutting edge count (CEDC)
1
Possible use
Roughing
Primary use
Finishing
Micro boring head size 42 with a 2 micron adjusting accuracy for finishing within a diamerter range of 16 to 34mm, to hold a 12mm ISO boring bar for longitudinal boring with and without shoulder
