Pramet AS 350 100 260 R boring system shank for modular boring system sizes 100 and 200 with DIN 69871 SK 50 taper shank per ISO/DIS 7388-1. Through coolant feed, 3.937 in (100 mm) body diameter, 260 mm usable length, 284 mm functional length, 184 mm protruding length, 60 mm connection diameter workpiece side. Article 6760968.

Name: Pramet AS 350 100 260 R boring system shank for modular boring system sizes 100 and 200 with DIN 69871 SK 50 taper shank per ISO/DIS 7388-1. Through c
Brand: Pramet
Price: 922.32 USD
Availability: InStock

MODEL 6760968

BRAND

Pramet

SKU

6068263

WEIGHT

23.909 lb

UOM

each

$922.32 Each

Prices are subject to change

FREE SHIPPING ON ORDERS OVER $100

Select Quantity

GET A QUOTE

Typically Ships in: 1 day

Returnable: Yes

Body diameter - inch (BD)

3.937

Body diameter - millimeter (BD)

100

Connection diameter workpiece side - millimeter (DCON WS)

Connection size code machine side (CZC MS)

100, 200

Coolant supply property (CSP)

Functional length - millimeter (LF)

284

Protruding length - millimeter (LPR)

184

Taper size

Usable Length - millimeter (LU)

260

Tool shank for modular boring system sizes 100 and 200 with (DIN 69871) SK 50 taper shank according to ISO/DIS 7388-1, through coolant feed and 260 protrusion length (including the boring head )

When will I be charged for my order? Ordering Do you provide credit terms? Ordering Can I get a discounted price? I am a reseller / government entity. Ordering What is the return/warranty policy? Ordering Can it be shipped today? Ordering Does “Usually ships in 24 hours” mean it’s in stock? Ordering Read full FAQ All FAQs

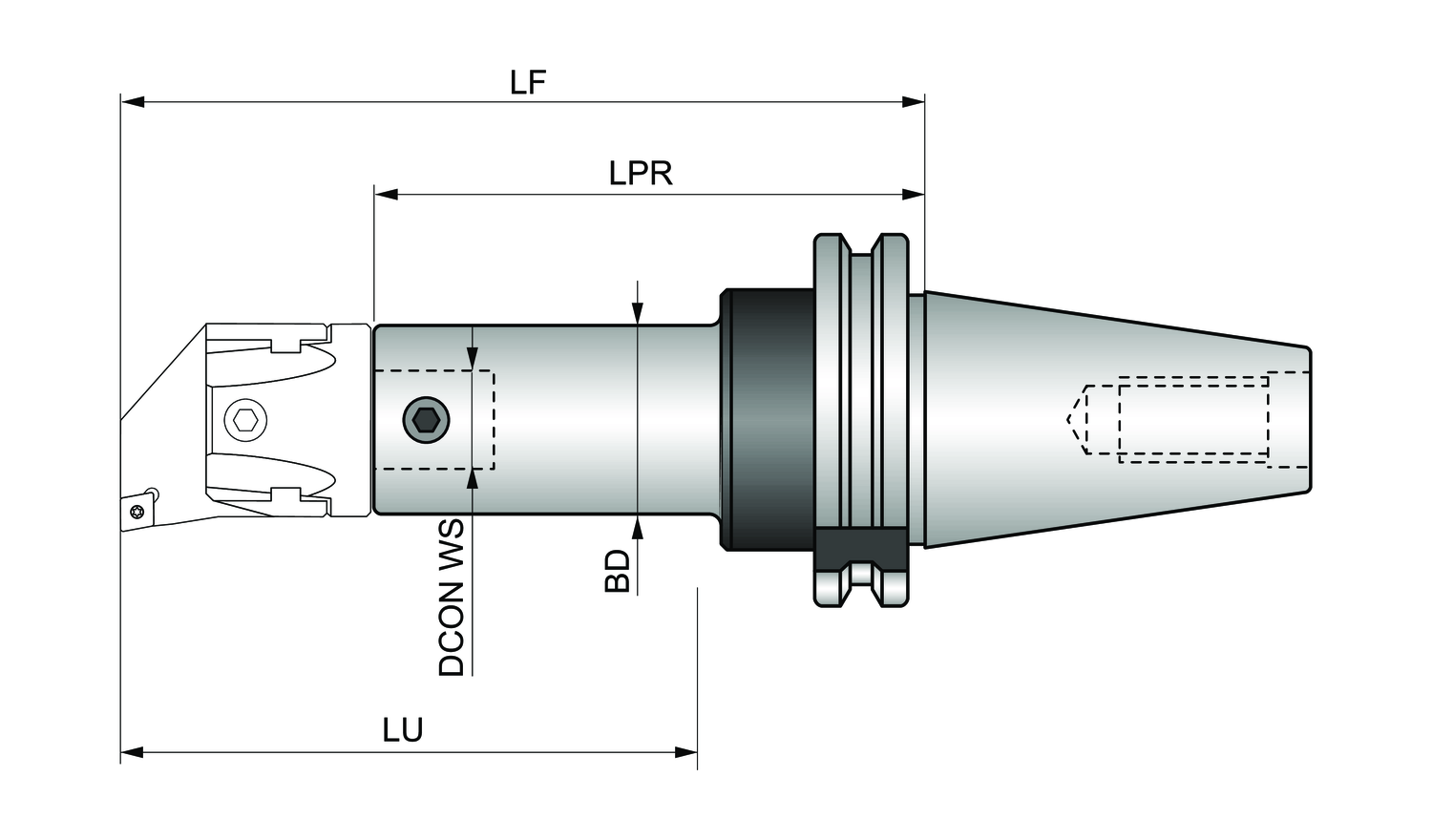

Line Drawing PNG
