Pramet D 30090 402 boring system head, cartridge type, 220-320 mm cutting diameter range, 90° approach angle, 2 cutting edges, 60 mm connection diameter, 90 mm functional length. For roughing and medium machining with CC.. 1204.. inserts. Article 6760953.
MODEL 6760953
$3,337.61 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes

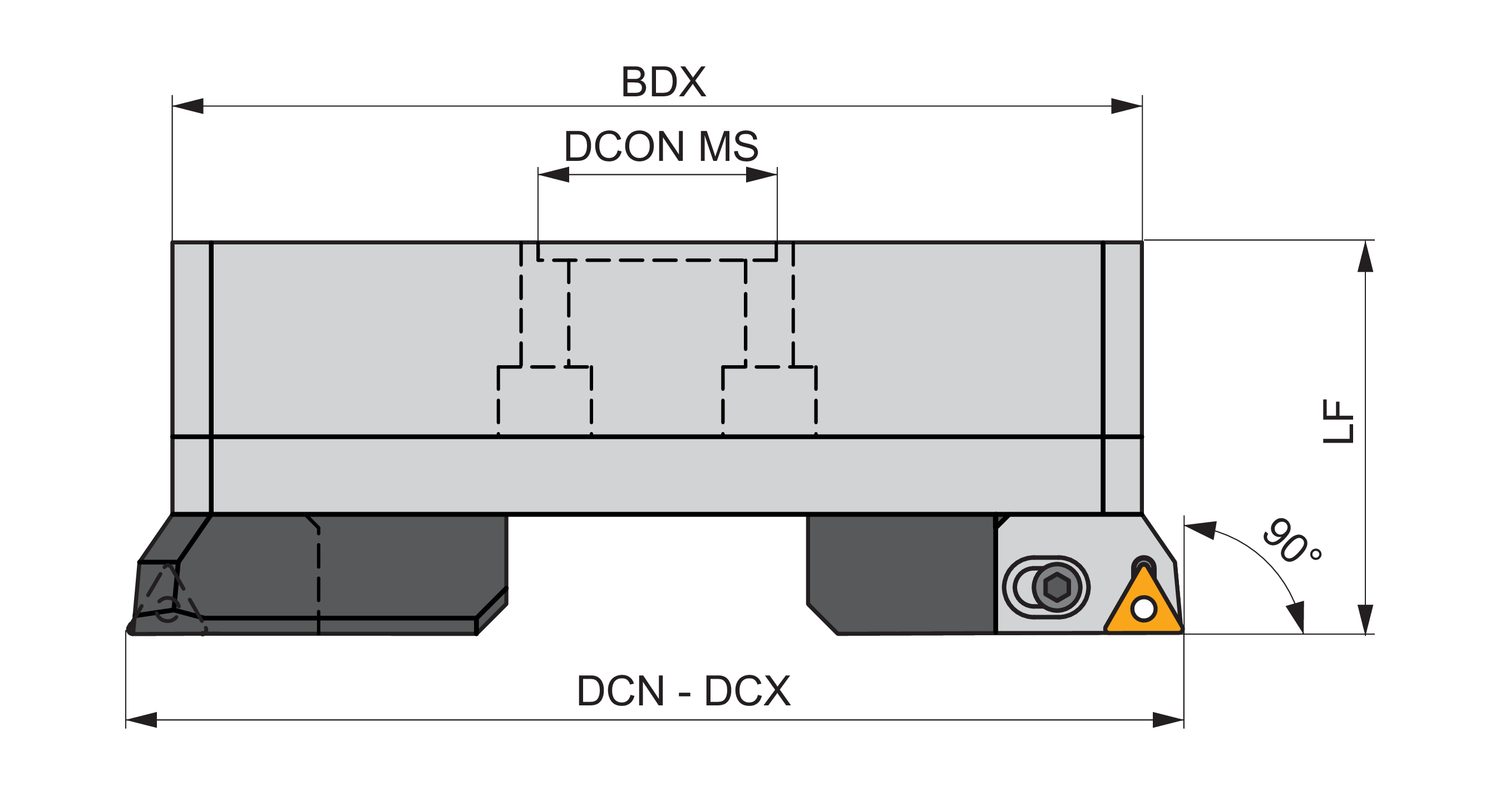

Body diameter maximum - millimeter (BDX)
202
Clamping Type Code (MTP)
System SP
Connection diameter - inch (DCON MS)
2.362
Connection diameter - millimeter (DCON MS)
60
Connection size code machine side (CZC MS)
300
Cutting diameter maximum - inch (DCX)
12.598
Cutting diameter maximum - millimeter (DCX)
320
Cutting diameter minimum - millimeter (DCN)
220
Cutting edge count (CEDC)
2
Functional length - millimeter (LF)
90
Possible use
Finishing
Primary use
Medium machining
Tool cutting edge angle (KAPR)
90
Tools linked to the tool
3CT 90 402
Large diameter cartridge type boring head size 300 with 90° approach angle and synchronized adjustment for roughing within a diamerter range of 220 to 320mm, complete with 3CT 90 402 cartridges to hold CC.. 1204.. inserts for longitudinal boring with and without shoulder
