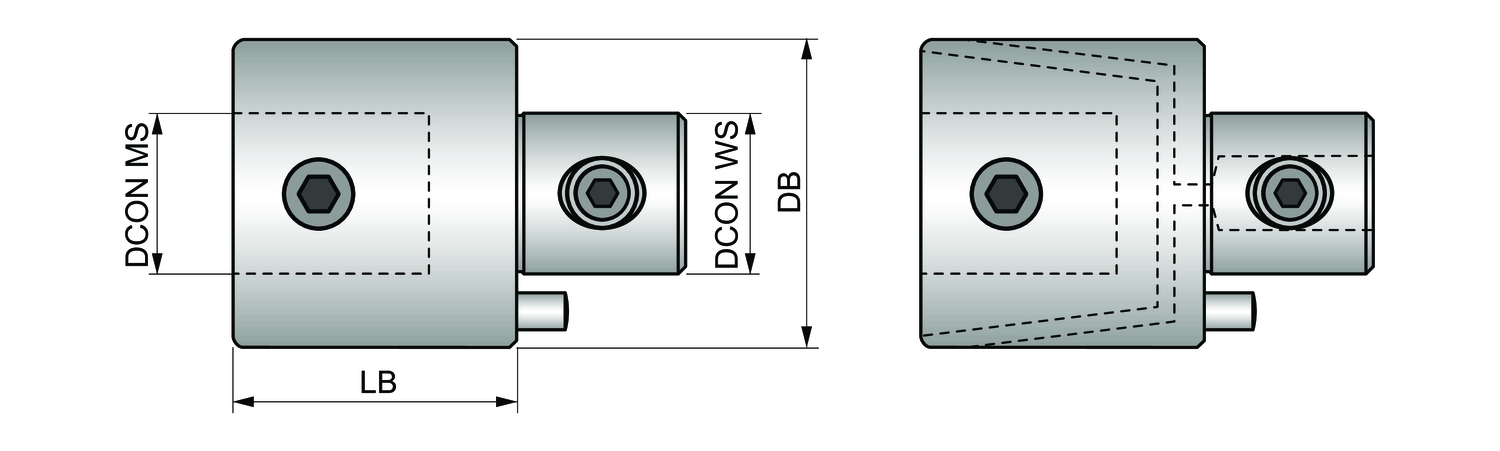

Pramet P 032 035 boring system extension adaptor for modular boring tools, 32 mm body diameter, 35 mm body length, 20 mm connection diameter on both machine and workpiece sides. Article 6760533.

Body diameter - inch (BD)

1.26

Body diameter - millimeter (BD)

32

Body length - millimeter (LB)

35

Connection diameter - inch (DCON MS)

0.787

Connection diameter - millimeter (DCON MS)

20

Connection diameter workpiece side - millimeter (DCON WS)

20

Connection size code machine side (CZC MS)

32
