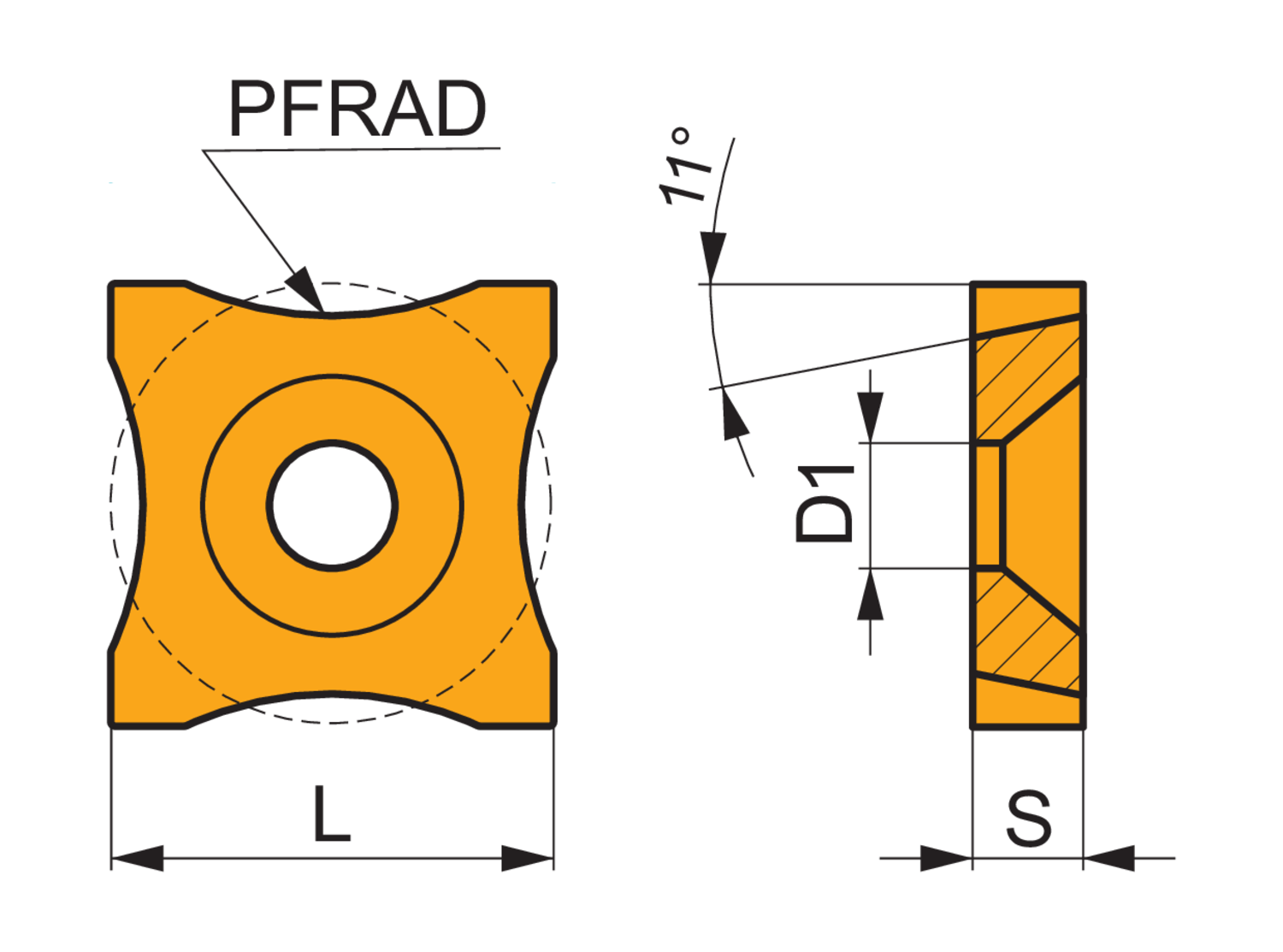

Pramet SPUB-63-E:T9335 positive scarfing insert — SPUB-63 (ISO SPUB 19-R25), 90° square, 11° clearance, 0.75 in (19.05 mm) cutting edge length, 0.187 in (4.75 mm) thick, 25 mm profile radius for tube diameters 37–47 mm, T9335 MT-CVD grade for steel and stainless steel. Article 7817055.
MODEL 7817055
This product has a minimum order quantity of (10 minimum) This is the minimum order quantity available when purchasing this product.
$18.45 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity(10 minimum)
Typically Ships in: 1 day
Returnable: Yes
Chipbreaker
No chipbreaker
Coating
T9335
Coating property (CTP)
1
Cutting edge length - inch (L)
0.75
Cutting edge length - millimeter (L)
19.05
Fixing hole diameter - inch (D1)
5.15
Inscribed circle diameter - inch (IC)
0.75
Inscribed circle diameter - millimeter (IC)
19.05
Insert shape code (SC)
S - square
Insert thickness - inch (S)
0.187
Insert thickness - millimeter (S)
4.75
OutsideDiameterWorkpiece_MAX_MET_NUM
47
OutsideDiameterWorkpiece_MIN_MET_NUM
37
Profile radius - inch (PRFRAD)
0.984
Profile radius - millimeter (PRFRAD)
25
Single-sided scarfing insert, square with a main cutting edge length of 19.05mm, 4.75mm thick and a working radius of 25mm for tube diameters from 37 to 47mm, T9335 MT-CVD coated functionally graded WC-Co carbide within ISO-grade ranges P20-P45 and M15-M40 for deburring the outside of steel and stainless-steel tubes and pipes
