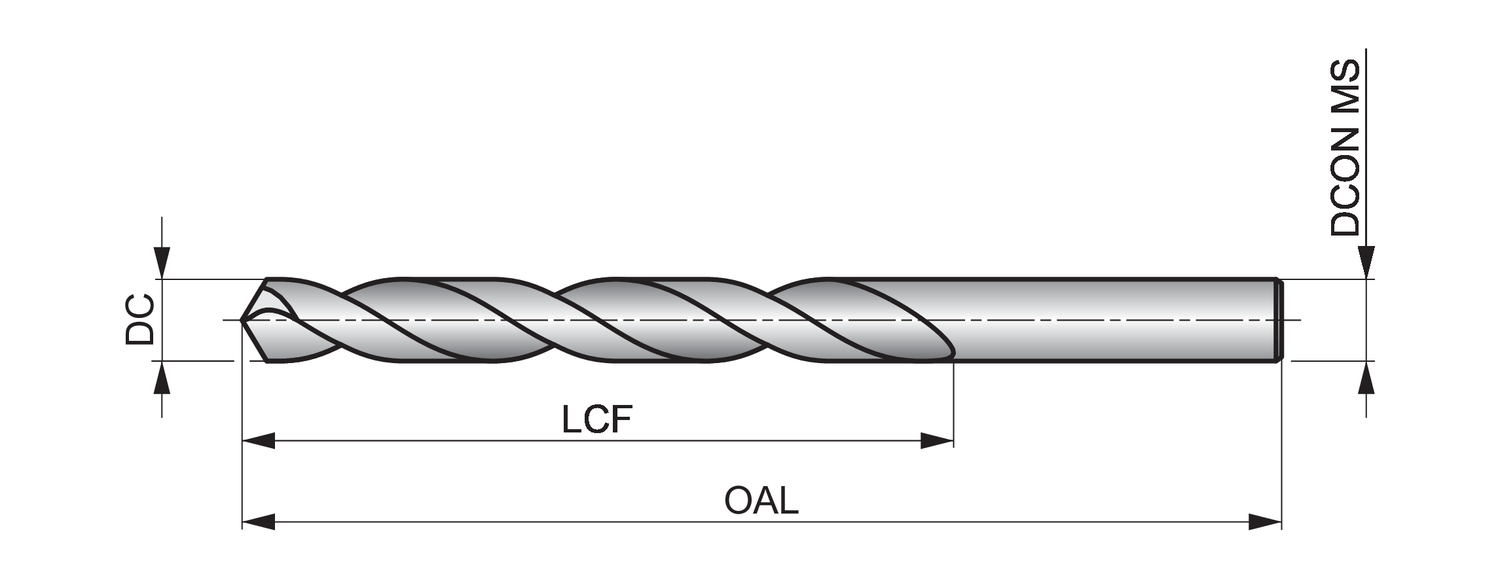

Image for Illustration purposes only. Actual product may vary

Dormer Pramet A002S12.5 (MID 6524888) 12.5mm diameter jobber length drill with 118° split point and Bright/TiN coating. High Speed Steel (HSS) construction to DIN 338, cylindrical shank, standard spiral flute, 101mm flute length, 151mm overall length. For steel, cast iron, and non-ferrous metals.

Name: Dormer Pramet A002S12.5 (MID 6524888) 12.5mm diameter jobber length drill with 118° split point and Bright/TiN coating. High Speed Steel (HSS) constru
Brand: Dormer Pramet
Price: 24.61 USD
Availability: InStock
Rating: 5.0 (3 reviews)

MODEL 6524888

BRAND

Dormer Pramet

SKU

6069853

WEIGHT

0.225 lb

UOM

each

$24.61 Each

Prices are subject to change

FREE SHIPPING ON ORDERS OVER $100

Select Quantity

GET A QUOTE

Typically Ships in: 1 day

Returnable: Yes

ApplicationAngleIcon_DICT_SEL

Drill point 118°

Basic Standard

DIN 338

Coating

Bright/TiN

Coating process

PVD

Coating property (CTP)

Connection (shank) description

Cylindrical shank

Connection diameter - millimeter (DCON MS)

12.5

Cutting diameter - inch (DC)

0.4921

Cutting diameter - millimeter (DC)

12.5

Cutting diameter tolerance class (TCDC)

Drill Length

Jobber

EDP number

46524888

Hand (Cutting direction)

Right

Length chip flute - inch (LCF)

3.9764

Length chip flute - millimeter (LCF)

101

Material

HSS

Material application

K - Cast iron, N - Non-ferrous metals, P - Steel and cast steel

MID number

6524888

Ordering code ANSI

A002S12.5

Overall length - inch (OAL)

5.9449

Overall length - millimeter (OAL)

151

Point Angle (SIG)

118

Spiral form

Standard Spiral

Surface treatement

TiN Tipped

Usable length (ULDR)

The A002S is a pack of two A002 drills of the same diameter, complete with a handy euro hook for easy display.

The A002 drill itself is suitable for both hand held and machine drilling and has a specially designed 118 degree split point, helping to self-center the drill when drilling by hand.

This means the drill doesn’t drift over the surface of the workpiece, and you also get a more accurate sized hole with a better finish.

The titanium nitride coated tip gives improved performance when drilling harder materials and extends the drill life.

The A002 can be used for drilling many materials including steels, aluminium and stainless steels, with confidence of a good result every time.
