Image for Illustration purposes only. Actual product may vary
Dormer A10110.0 5968072 Jobber Drill - LH DIN 338 10.00 mm
MODEL 5968072
This product has a minimum order quantity of (10 minimum) This is the minimum order quantity available when purchasing this product.
$22.06 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity(10 minimum)
Typically Ships in: 1 day
Returnable: Yes
ApplicationAngleIcon_DICT_SEL
Drill point 118°
Basic Standard
DIN 338
Coating
Steam Tempered
Connection (shank) description
Cylindrical shank

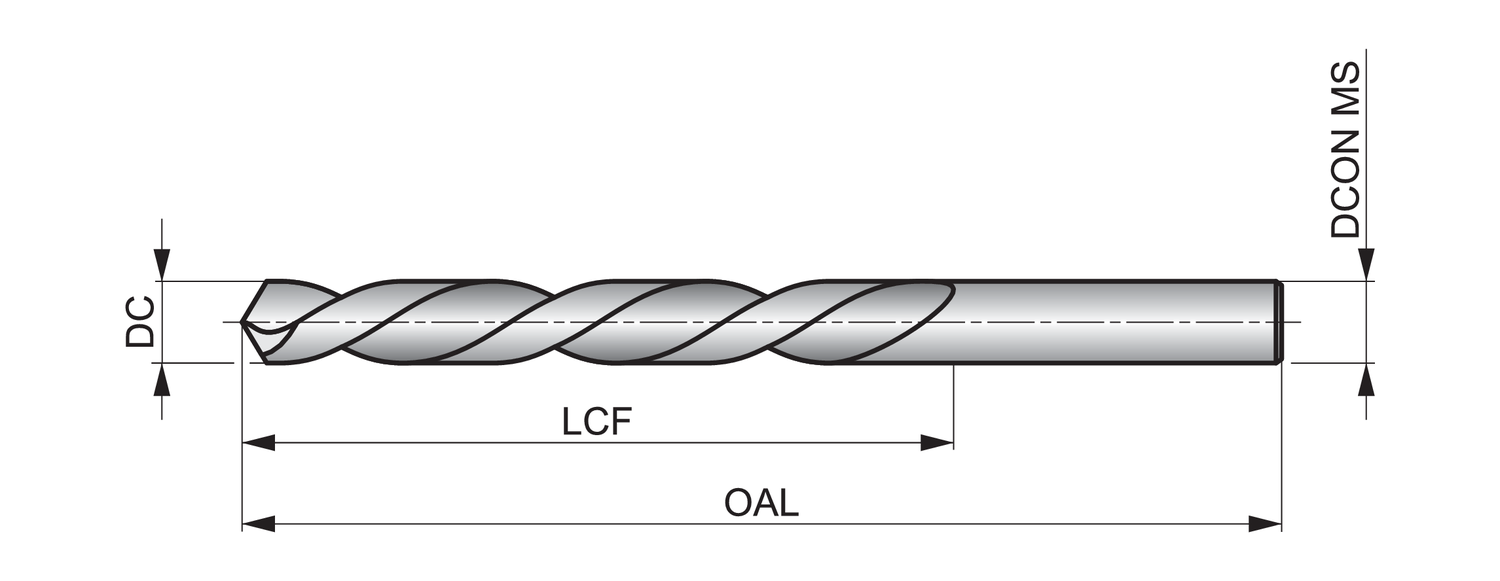

Connection diameter - millimeter (DCON MS)
10
Cutting diameter - inch (DC)
0.3937
Cutting diameter - millimeter (DC)
10
Cutting diameter tolerance class (TCDC)
h8
Drill Length
Jobber
EDP number
2780
Hand (Cutting direction)
Left
Length chip flute - inch (LCF)
3.4252
Length chip flute - millimeter (LCF)
87
Material
HSS
Material application
K - Cast iron, P - Steel and cast steel
MID number
5968072
Ordering code ANSI
A10110.0
Overall length - inch (OAL)
5.2362
Overall length - millimeter (OAL)
133
Point Angle (SIG)
118
Spiral form
Standard Spiral
Surface treatement
Steam Tempered
Usable length (ULDR)
4
The A101 drill is a left handed drill, designed for use in chucks which rotate anti-clockwise, or double headed chucks - where you can fit a right handed drill in one end and a left handed drill in the other end.
Suitable for both hand held and machine drilling in a number of applications, the A101 from Dormer Pramet has a steam oxide finish which helps stop work piece material from sticking to the cutting edge of the drill.
A conventional 118 degree point provides strength and means the point is easy to regrind, making it a very cost-effective drill.
The A101 is suitable for drilling many materials including steels, aluminium and stainless steels, with confidence of a good result every time.
The A101 is a sister drill to the A100, with the A100 right handed and the A101 left handed.*Note: all drills below 1mm are bright
