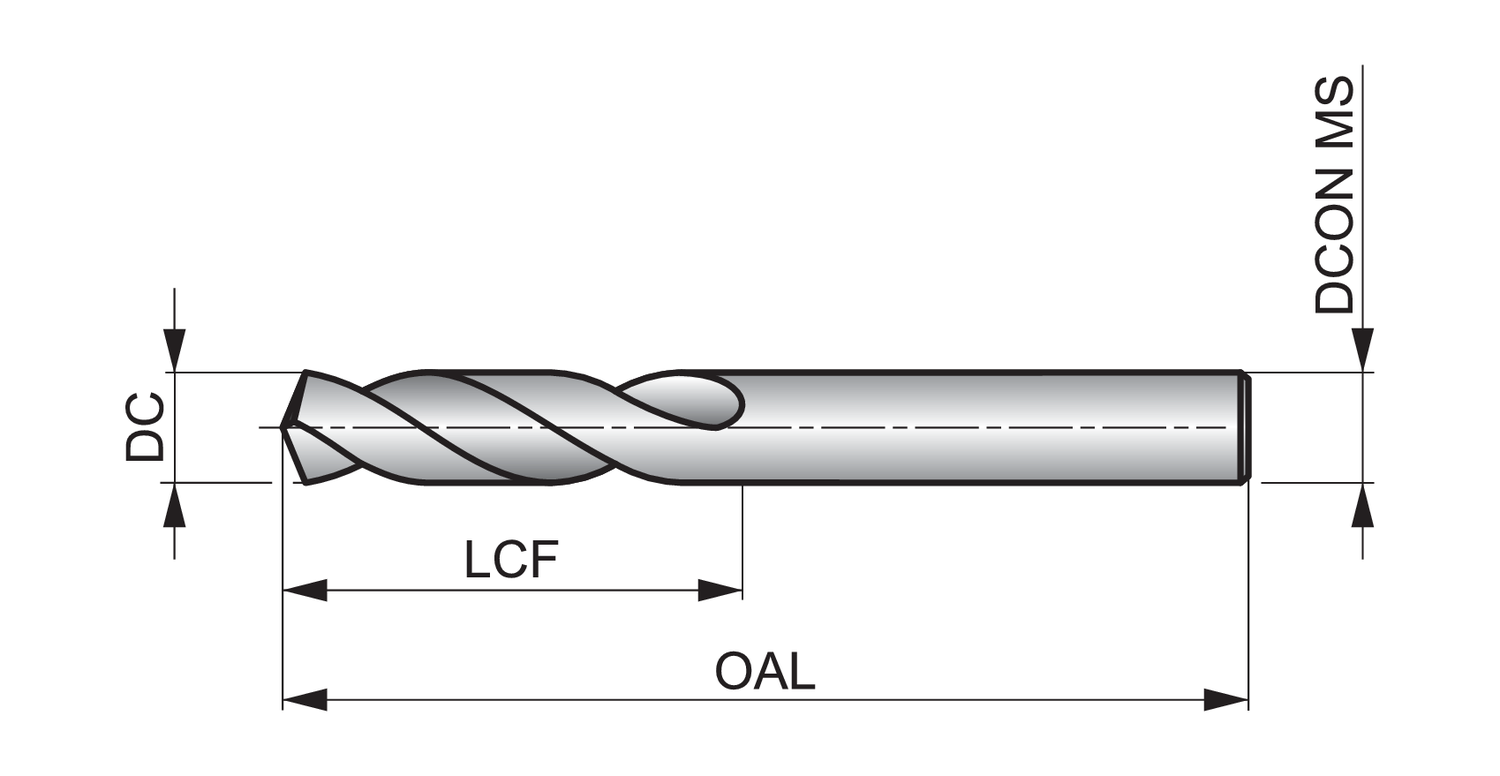

Image for Illustration purposes only. Actual product may vary

Dormer Pramet A0228.8 5966896 stub drill bit with 8.80mm (0.3465") cutting diameter, 135° point angle, and 40mm flute length. Made from High Speed Steel (HSS) with standard spiral flute geometry and h8 tolerance. Meets DIN/ANSI standards. Suitable for cast iron, stainless steel, non-ferrous metals, steel, and high-temperature alloys.

Name: Dormer Pramet A0228.8 5966896 stub drill bit with 8.80mm (0.3465") cutting diameter, 135° point angle, and 40mm flute length. Made from High Speed Ste
Brand: Dormer Pramet
Price: 16.9 USD
Availability: InStock
Rating: 5.0 (3 reviews)

MODEL 5966896

BRAND

Dormer Pramet

SKU

6070659

WEIGHT

0.067 lb

UOM

each

This product has a minimum order quantity of (10 minimum) This is the minimum order quantity available when purchasing this product.

$16.90 Each

Prices are subject to change

FREE SHIPPING ON ORDERS OVER $100

Select Quantity(10 minimum)

GET A QUOTE

Typically Ships in: 1 day

Returnable: Yes

ApplicationAngleIcon_DICT_SEL

Drill point 135°

Basic Standard

DIN/ANSI

Coating

Bright/TiN

Coating property (CTP)

Connection diameter - millimeter (DCON MS)

8.8

Cutting diameter - inch (DC)

0.3465

Cutting diameter - millimeter (DC)

8.8

Cutting diameter tolerance class (TCDC)

EDP number

589731

Hand (Cutting direction)

Right

Length chip flute - inch (LCF)

1.5748

Length chip flute - millimeter (LCF)

Material

HSS

MID number

5966896

Ordering code ANSI

A0228.8

Overall length - inch (OAL)

3.3071

Overall length - millimeter (OAL)

Point Angle (SIG)

135

Shank

Cylindrical shank

Spiral form

Standard Spiral

Usable length (ULDR)

2.5

A022 stub drills are very versatile and are suitable for a wide variety of hand held and machine applications.

They are manufactured from premium High Speed Steel and can be used for drilling a number of different materials including steels, stainless steels and aluminium.

With a titanium nitride coating, you get better performance when drilling harder materials and a longer tool life.

The specially designed 135 degree split point is a great aid to self-centering when drilling by hand – so no more wandering all over the surface of the workpiece – and you also get a more accurate hole with a better quality of finish.

*Note: split point and TiN coated tip not available below 2mm
