Dormer Pramet A1103.0 5967674 long series drill, 3.00 mm (0.1181") diameter, High Speed Steel (HSS) with Steam Tempered finish, 118° point angle, standard spiral flute, cylindrical shank, 100 mm overall length, 66 mm flute length. DIN 340 standard. For steel and cast steel (material group P).
MODEL 5967674
This product has a minimum order quantity of (10 minimum) This is the minimum order quantity available when purchasing this product.
$8.11 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity(10 minimum)
Typically Ships in: 1 day
Returnable: Yes
ApplicationAngleIcon_DICT_SEL
Drill point 118°
Basic Standard
DIN 340
Coating
Steam Tempered

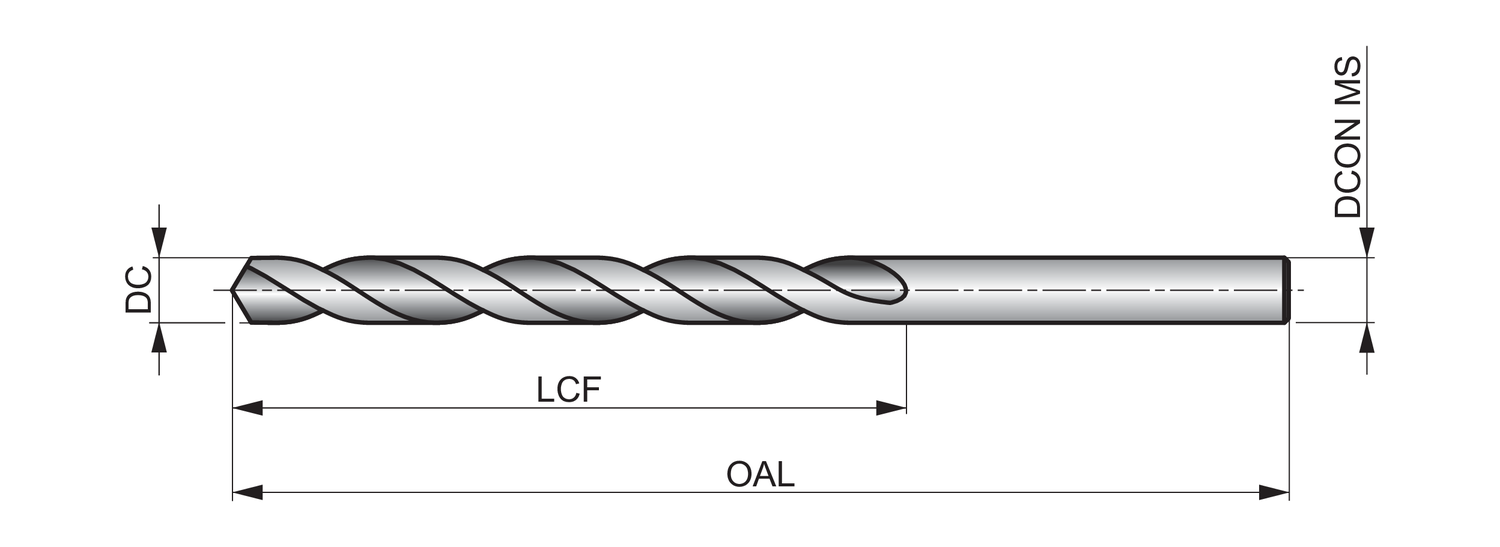

Connection (shank) description
Cylindrical shank
Connection diameter - millimeter (DCON MS)
3
Cutting diameter - inch (DC)
0.1181
Cutting diameter - millimeter (DC)
3
Cutting diameter tolerance class (TCDC)
h8
Drill Length
Long
EDP number
11027
Hand (Cutting direction)
Right
Length chip flute - inch (LCF)
2.5984
Length chip flute - millimeter (LCF)
66
Material
HSS
Material application
P - Steel and cast steel
MID number
5967674
Ordering code ANSI
A1103.0
Overall length - inch (OAL)
3.937
Overall length - millimeter (OAL)
100
Point Angle (SIG)
118
Spiral form
Standard Spiral
Surface treatement
Steam Tempered
Usable length (ULDR)
6
The A110 drill from Dormer gives you the extra length you need to drill deeper holes or more reach for those awkward jobs.
Suitable for both hand held and machine drilling in a number of applications, the A110 from Dormer Pramet has a steam oxide finish which helps stop work piece material from sticking to the cutting edge of the drill.
A conventional 118 degree point provides strength and means the point is easy to regrind, making it a very cost-effective drill.
The A110 is suitable for drilling deeper holes in many materials including steels, aluminium and stainless steels, giving you the extra reach you sometimes need.
The A110 is a good choice for getting to the bottom of things.
*Note: all drills below 1mm are bright
