Image for Illustration purposes only. Actual product may vary
Dormer A1176.3 5968109 Stub Drill Short DIN 1897 6.30 mm
MODEL 5968109
This product has a minimum order quantity of (10 minimum) This is the minimum order quantity available when purchasing this product.
$7.09 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity(10 minimum)
Typically Ships in: 1 day
Returnable: Yes
California Prop 65 warningApplicationAngleIcon_DICT_SEL
Drill point 135°
Basic Standard
DIN 1897
Coating
Bronze

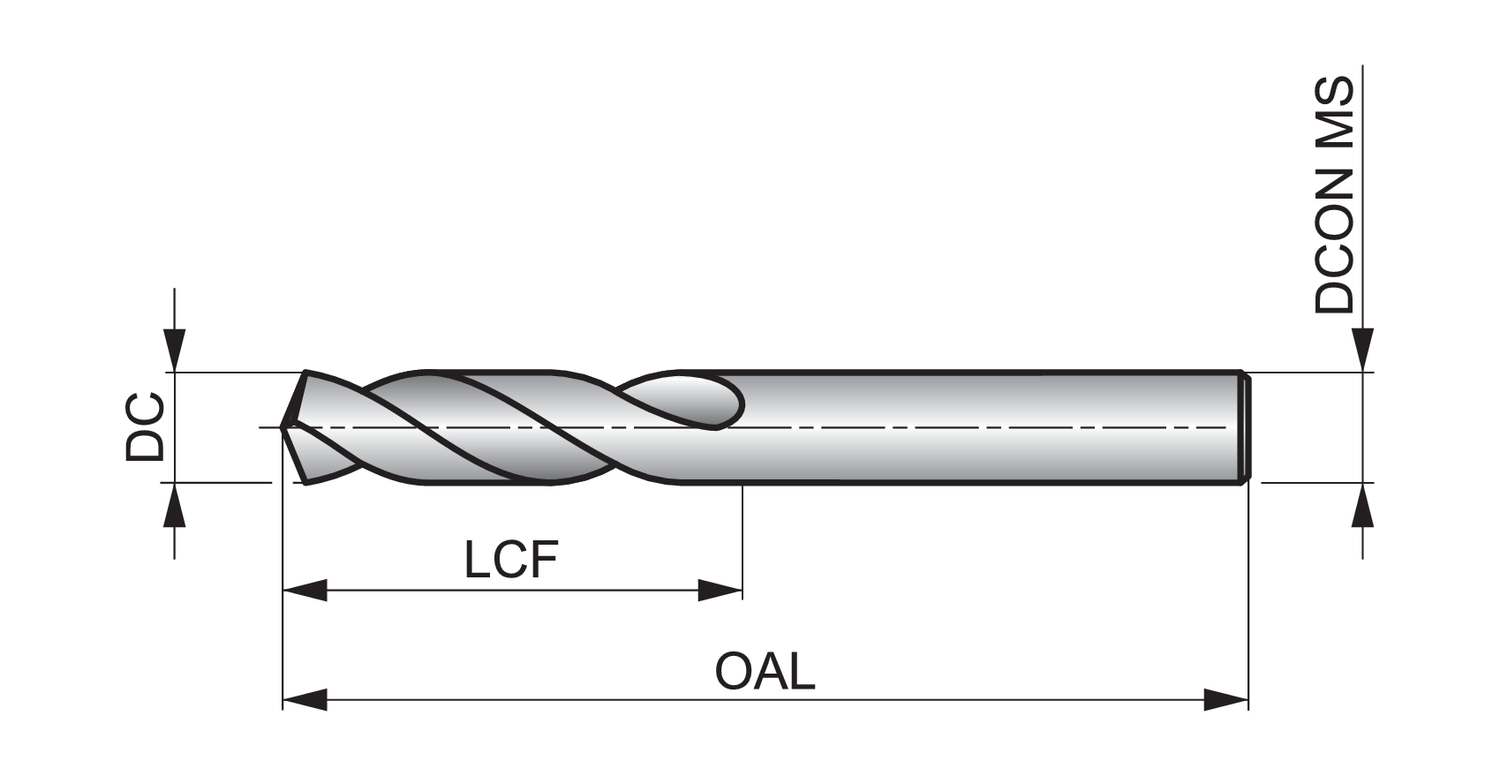

Connection diameter - millimeter (DCON MS)
6.3
Cutting diameter - inch (DC)
0.248
Cutting diameter - millimeter (DC)
6.3
Cutting diameter tolerance class (TCDC)
h8
EDP number
15650
Hand (Cutting direction)
Right
Length chip flute - inch (LCF)
1.2205
Length chip flute - millimeter (LCF)
31
Material
HSS-E
Material application
K - Cast iron, M - Stainless steel, P - Steel and cast steel, S - High-temperature alloys
MID number
5968109
Ordering code ANSI
A1176.3
Overall length - inch (OAL)
2.7559
Overall length - millimeter (OAL)
70
Point Angle (SIG)
135
Shank
Cylindrical shank
Spiral form
Standard Spiral
Usable length (ULDR)
2.5
The A117 short drill is made from premium High Speed Cobalt.
Available in a wide range of metric diameters, it is also available in some of the more popular fractional sizes.
It is recommended for use in difficult materials and application and particularly for tool steels.
The A117 has a 135 degree split point which makes self-centering easier and also means less force is needed to drill the hole.
The A117 has a bronze oxide finish which stops work piece material from sticking to the cutting edge.
The A117 drill can be relied on to produce a more accurate hole size and a better finish.
*Note: drills up to 1.5mm have 118° point
