Dormer Pramet A1202.8 (MID 5968033) is a stub length drill bit with a 2.80mm (0.1102") cutting diameter and 135° point angle. Made from High Speed Steel (HSS) with a standard spiral flute geometry, it conforms to DIN 1897. The h8 tolerance shank measures 2.80mm. Suitable for steel, cast iron, stainless steel, and high-temperature alloys.
MODEL 5968033
This product has a minimum order quantity of (10 minimum) This is the minimum order quantity available when purchasing this product.
$2.85 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity(10 minimum)
Typically Ships in: 1 day
Returnable: Yes
ApplicationAngleIcon_DICT_SEL
Drill point 118°
Basic Standard
DIN 1897
Coating
Steam Tempered

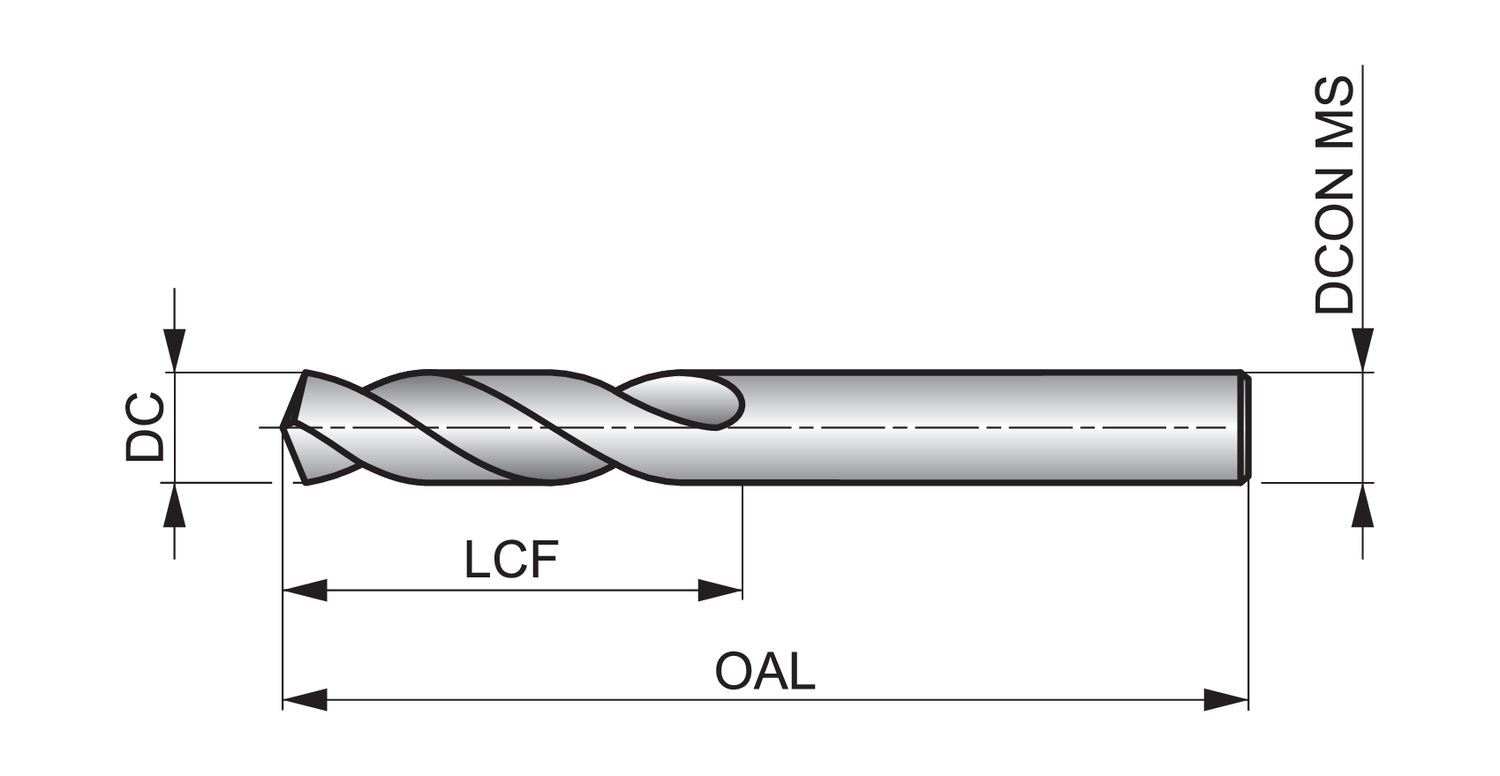

Connection diameter - millimeter (DCON MS)
2.8
Cutting diameter - inch (DC)
0.1102
Cutting diameter - millimeter (DC)
2.8
Cutting diameter tolerance class (TCDC)
h8
EDP number
17067
Hand (Cutting direction)
Right
Length chip flute - inch (LCF)
0.6299
Length chip flute - millimeter (LCF)
16
Material
HSS
Material application
K - Cast iron, M - Stainless steel, P - Steel and cast steel, S - High-temperature alloys
MID number
5968033
Ordering code ANSI
A1202.8
Overall length - inch (OAL)
1.811
Overall length - millimeter (OAL)
46
Point Angle (SIG)
135
Shank
Cylindrical shank
Spiral form
Standard Spiral
Usable length (ULDR)
2.5
The A120 short drill is made from premium High Speed steel and can be used for drilling many material, including steel, stainless steels and aluminium.
It comes in a wide range of fractional and metric diameters and has a steam oxide finish to prevent work piece material from sticking to the cutting edge.
This in turn means you get a more accurate, cleaner hole.
The A120 has a 135 degree split point so you do not need to apply as much pressure when drilling and the drill will not wander over the surface of the material to be drilled.
The A120 is a very versatile drill and can be used in many different applications, both hand held and for machine drilling.
*Note: all drills below 1.0mm are bright, and all drills up to 2.9mm and over 13.0mm have 118° point
